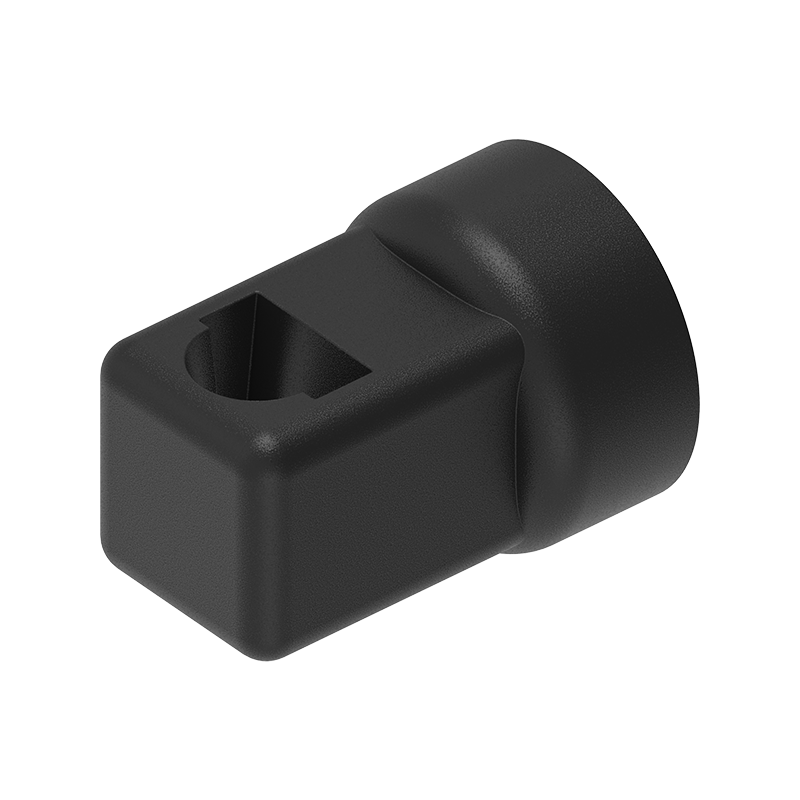

Rod guide, glass fiber reinforced polyamide, screw-on, D=8, A-dimension=26, B=38
MT101485
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 26mm. The dimension B is 38mm. Weld stud M6x20 fixing. Suitable for Ø8mm round rods.

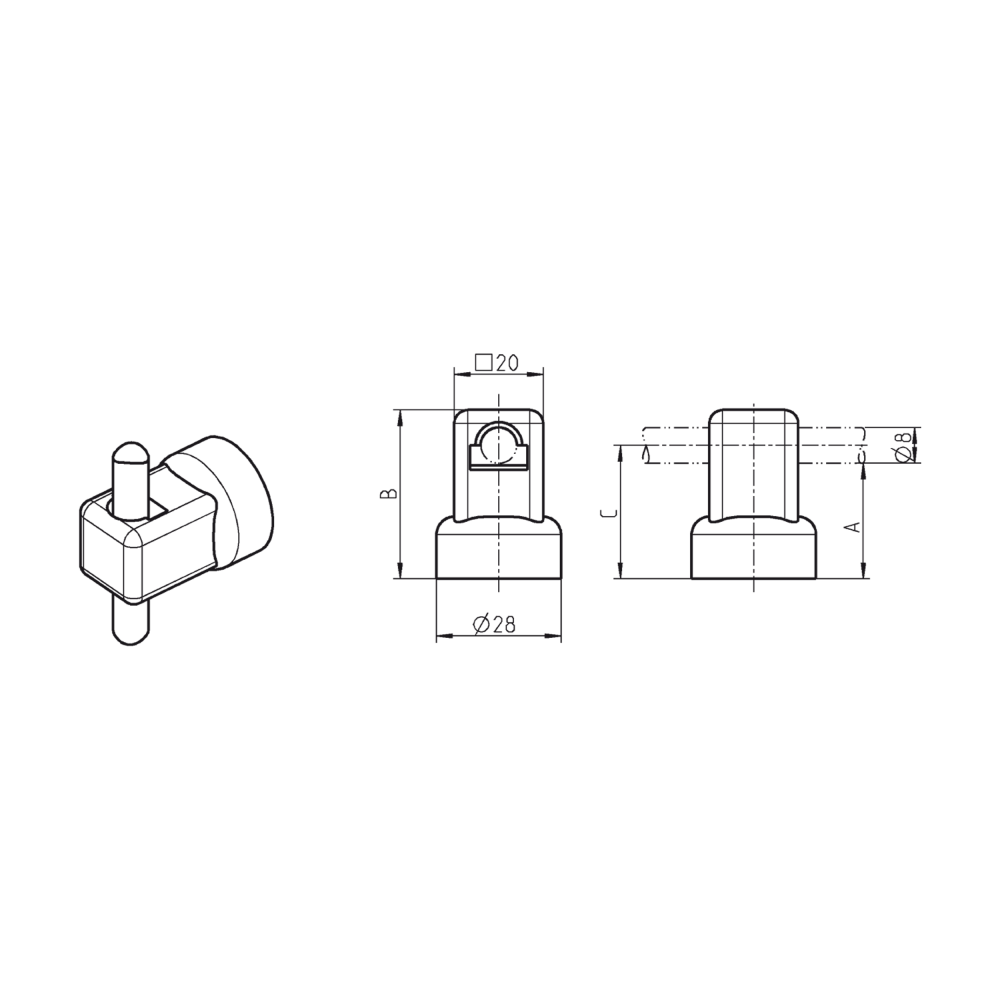

A-measure
26
B
38
C
30
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Mounting type
Screw-on
Diameter in mm
8
Height in mm
0
Length in mm
0
Long description
Rod guide manufactured in glass fiber reinforced polyamide, which is mounted by screw-on. The diameter is 8mm. The A-dimension is 26mm. The dimension B is 38mm. Weld stud M6x20 fixing. Suitable for Ø8mm round rods.
