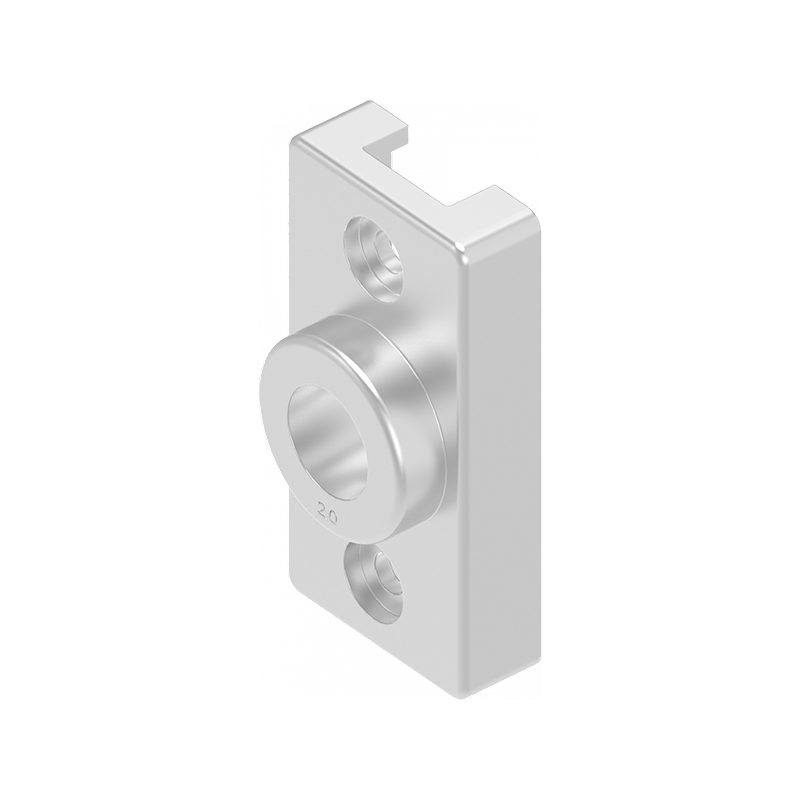

Bearing bush, acid proof stainless steel, without rest, L=54, B=27, H=18, Plate thickness=2-2
MT103601

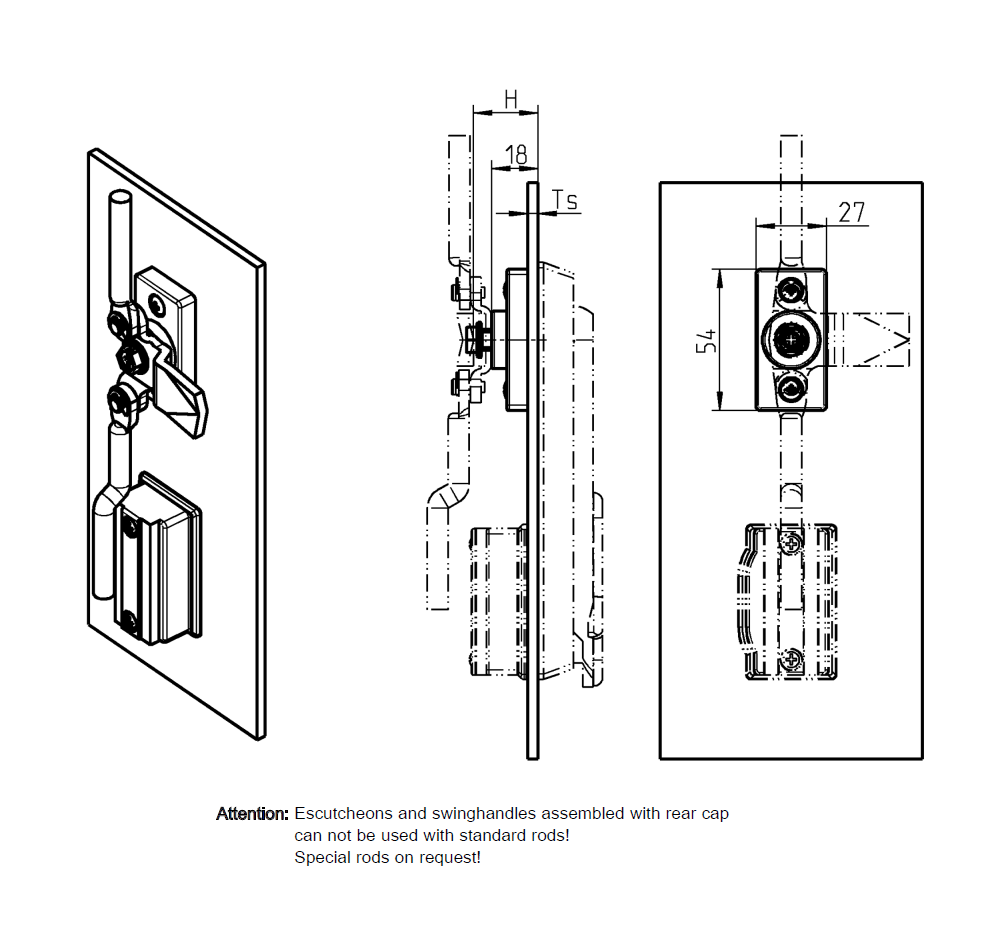

Bearing bush manufactured in acid proof stainless steel and of the type without rest. The product has a length of 54mm. The width is 27mm. The height is 18mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Axis diameter in mm
0
Spring-loaded
Yes
Hole type
Simple
Components
Bearing bush
Material
AISI 316
Material type
Acid proof Stainless Steel
Type
Without rest
Height in mm
18
Length in mm
54
Plate thickness min.
2
Plate thickness max.
2
Long description
Bearing bush manufactured in acid proof stainless steel and of the type without rest. The product has a length of 54mm. The width is 27mm. The height is 18mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
