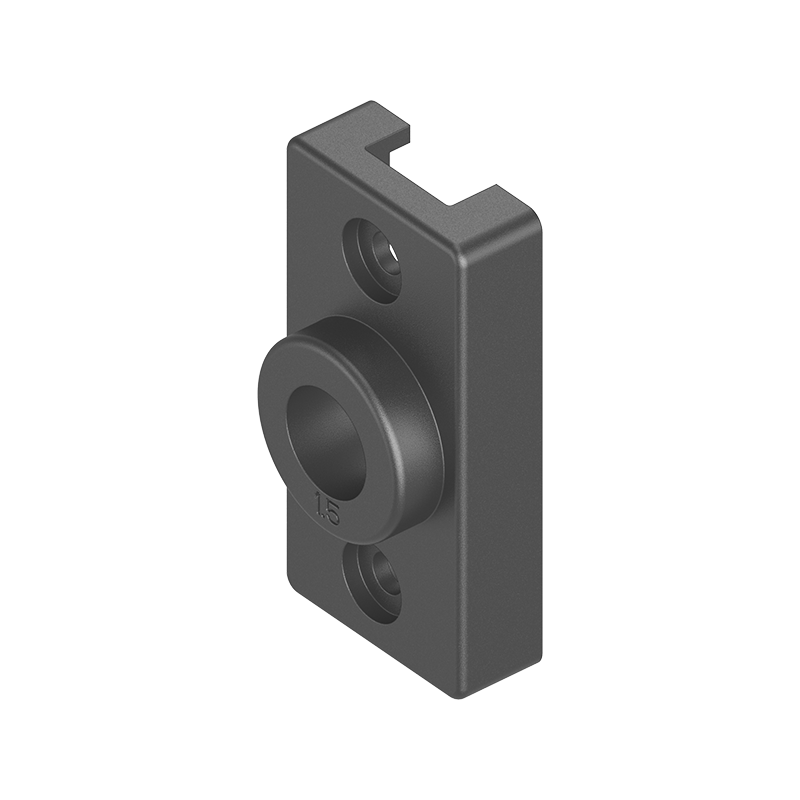

Bearing bush, glass fiber reinforced polyamide, without rest, L=54, B=27, H=18, Plate thickness=1,5-1,5
MT103745

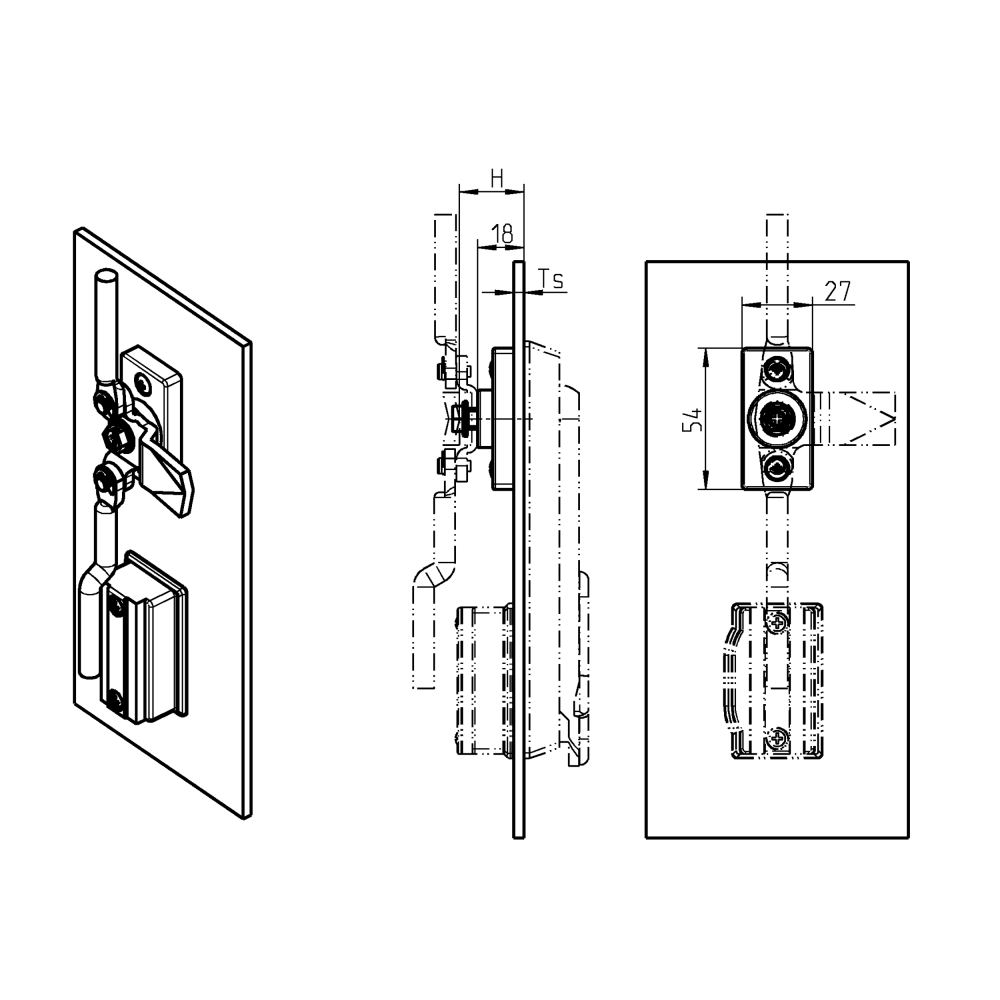

Bearing bush manufatured in glass fiber reinforced polyamide and of the type without rest. The product has a length of 54mm. The width is 27mm. The height is 18mm. The product can be mounted through plates with thickness of 1,5-1,5mm. 1121-82-PK adapter and skruer følger with.
Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-mål
Fjedervirkning
Yes
Hole type
Simple
Components
Bearing bush
Material type
Glass fiber reinforced polyamide
Type
Without rest
Diameter in mm
0
Hole diameter in mm
0
Height in mm
18
Length i mm
54
Plate thickness, min.
1.5
Plate thickness, max.
1.5
Thickness in mm
0
Long description
Bearing bush manufatured in glass fiber reinforced polyamide and of the type without rest. The product has a length of 54mm. The width is 27mm. The height is 18mm. The product can be mounted through plates with thickness of 1,5-1,5mm. 1121-82-PK adapter and skruer følger with.
Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
