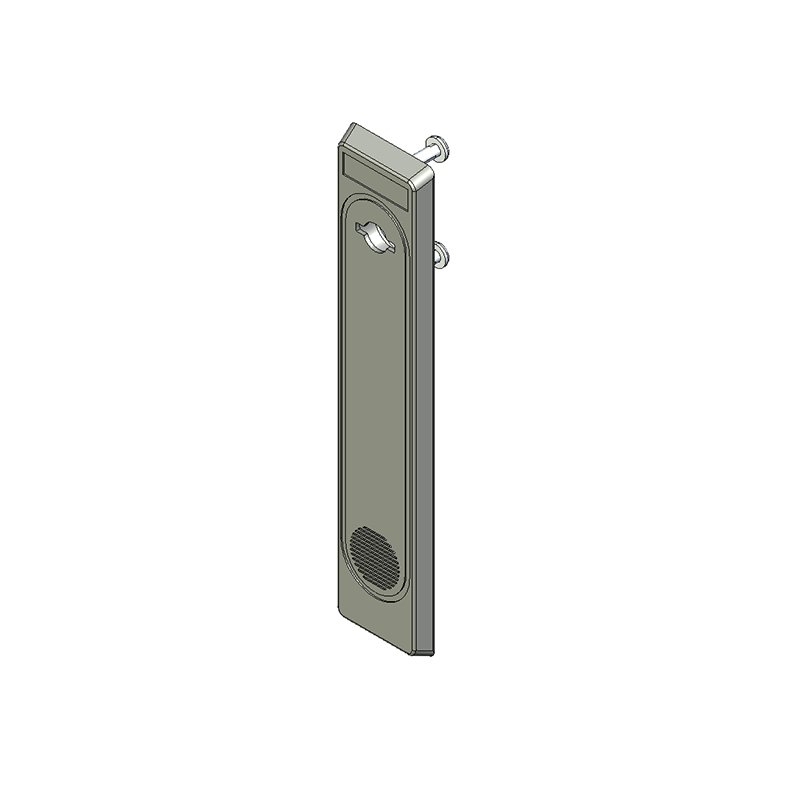

Escutcheon for swinghandle, glass fiber reinforced polyamide, insert, L=176, B=35, H=7, Plate thickness=1,5-2
MT105094

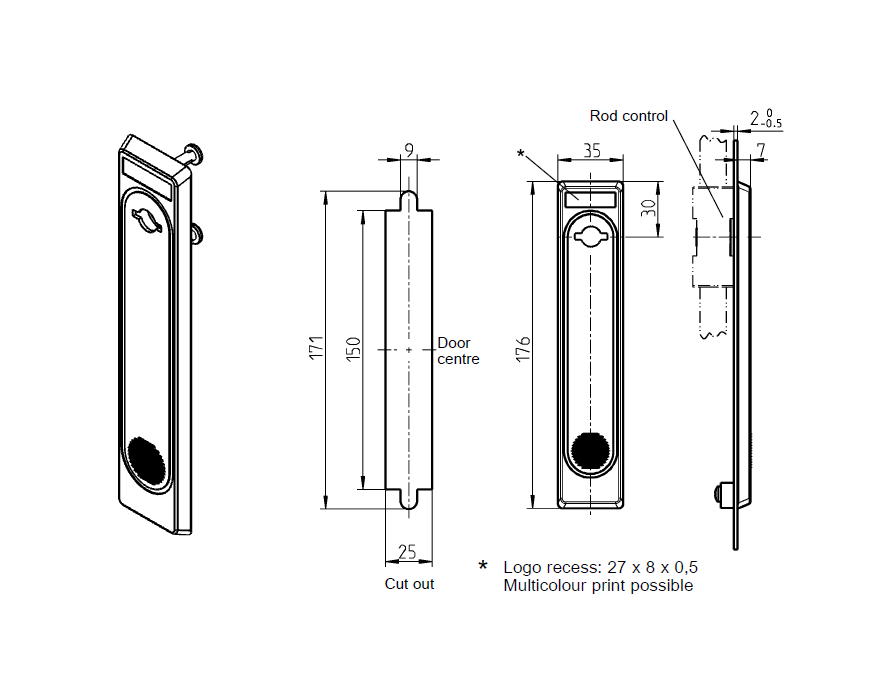

Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide polyamid and of the type insert. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Suitable for DIN 3/DIN 5 inserts with mask. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Axis diameter in mm
0
Spring-loaded
Yes
Components
Escutcheon for swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Type
Insert
IP Code
IP54
Height in mm
7
Length in mm
176
Plate thickness min.
1.5
Plate thickness max.
2
Long description
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide polyamid and of the type insert. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Suitable for DIN 3/DIN 5 inserts with mask. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Product data
