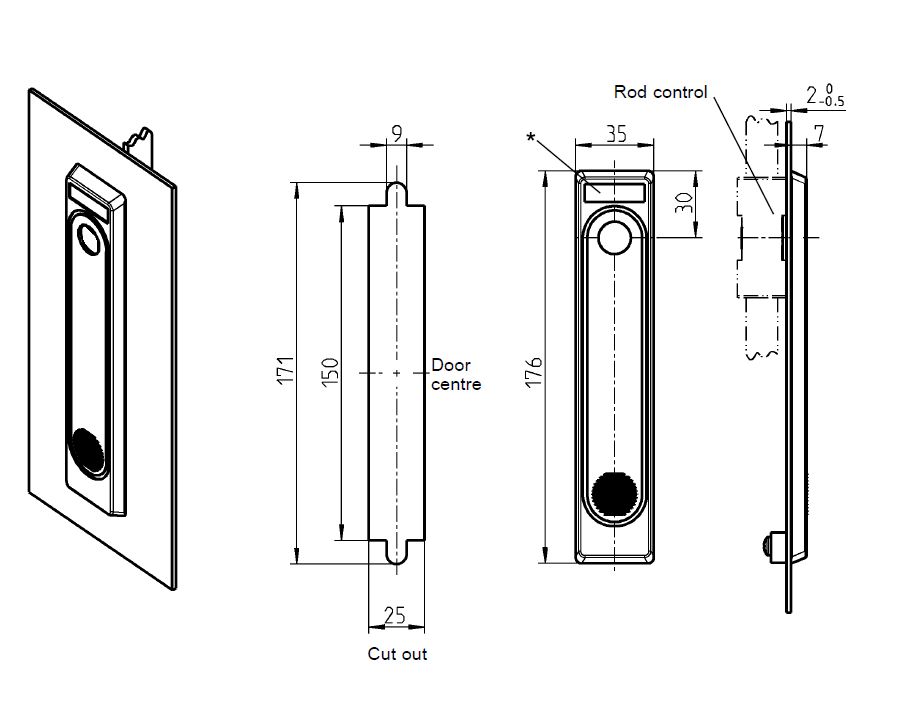

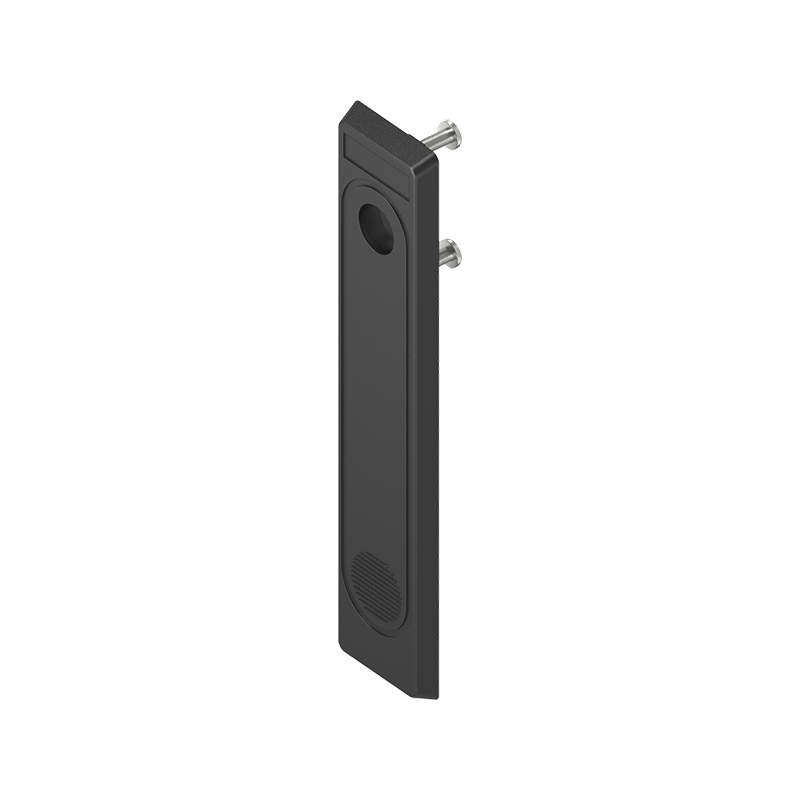

Escutcheon for swinghandle, glass fiber reinforced polyamide, insert, L=176, B=35, H=7, Plate thickness=2-2
MT105092
Escutcheon for swinghandle manufatured in glass fiber reinforced polyamide and of the type insert. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 2-2mm. For use with square/triangular/slot/Daimler-Benz inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Spring-loaded
Yes
Components
Escutcheon for swinghandle
Material type
Glass fiber reinforced polyamide
Type
Insert
Diameter in mm
0
Hole diameter in mm
0
Height in mm
7
Length in mm
176
Plate thickness min.
2
Plate thickness max.
2
Thickness in mm
0
Long description
Escutcheon for swinghandle manufatured in glass fiber reinforced polyamide and of the type insert. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 2-2mm. For use with square/triangular/slot/Daimler-Benz inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Product data
