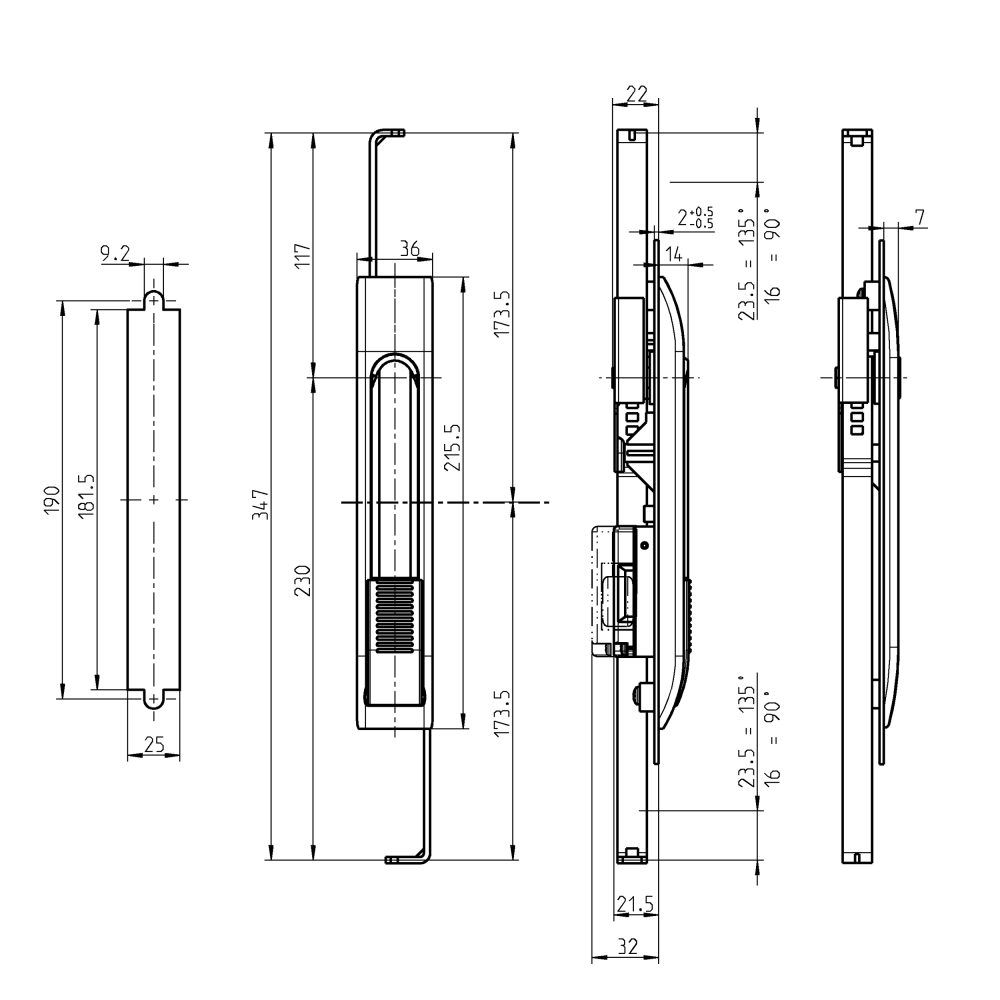

Escutcheon for swinghandle, glass fiber reinforced polyamide, insert, L=215,5, B=36, H=7, Plate thickness=1,5-2,5
MT111620
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide and of the type insert. The product has a length of 215,5mm. The width is 36mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2,5mm. For use with DIN 3 inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Aksediameter i mm
0
Fjedervirkning
Yes
Shape
T-shape
Indsatsmateriale
Die-cast zinc
Components
Escutcheon for swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Type
Insert
IP Code
IP54
Vandring
Diameter in mm
0
Hole diameter in mm
0
Height in mm
7
Length i mm
215.5
Plate thickness, min.
1.5
Plate thickness, max.
2.5
Thickness in mm
0
Long description
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide and of the type insert. The product has a length of 215,5mm. The width is 36mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2,5mm. For use with DIN 3 inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
