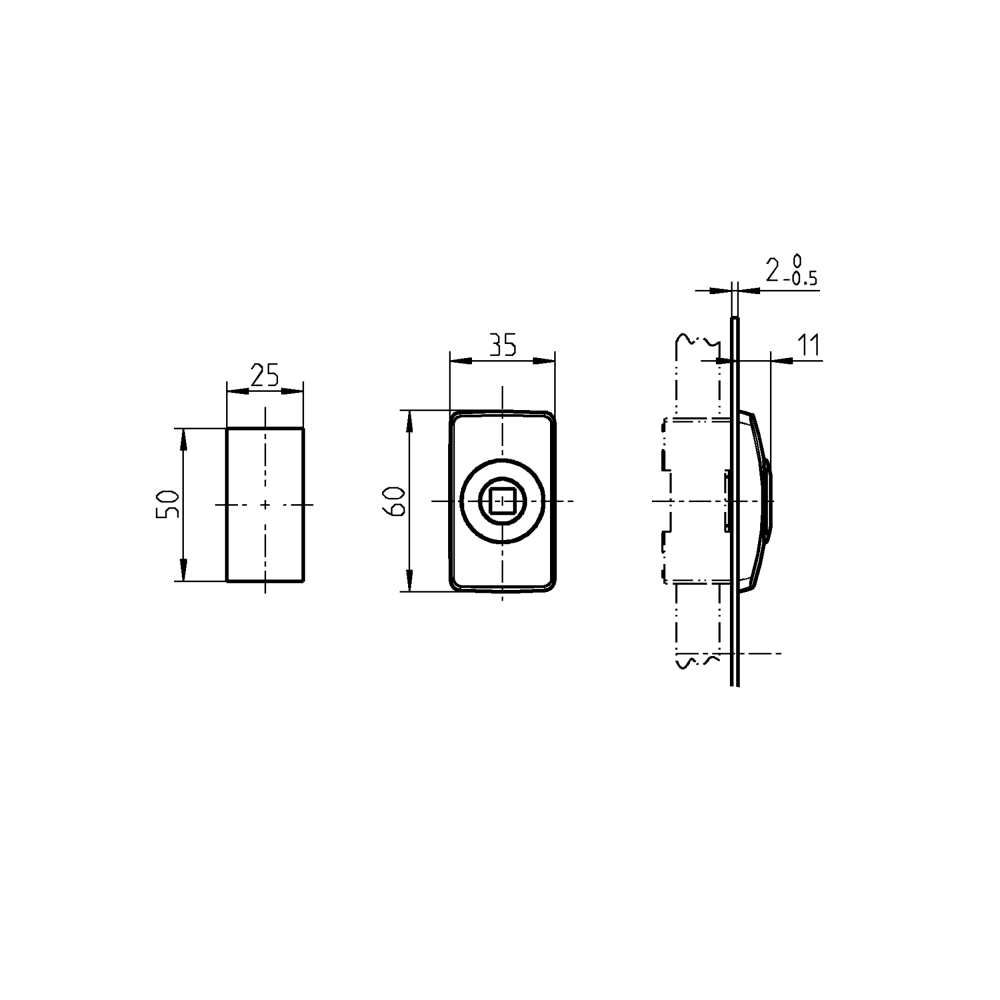

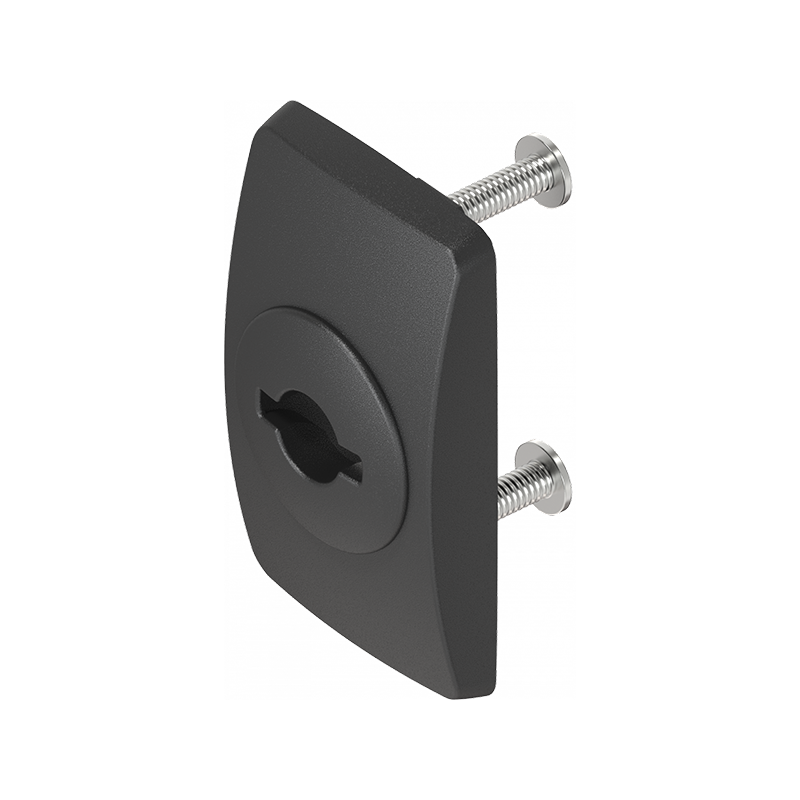

Escutcheon for swinghandle, glass fiber reinforced polyamide, insert, L=60, B=35, H=11, Plate thickness=1,5-2
MT104326
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide polyamid and of the type insert. The product has a length of 60mm. The width is 35mm. The height is 11mm. The product can be mounted through plates with thickness of 1,5-2mm. Suitable for DIN 3/DIN 5 inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Axis diameter in mm
0
Spring-loaded
Yes
Components
Escutcheon for swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Type
Insert
IP Code
IP65
Height in mm
11
Length in mm
60
Plate thickness min.
1.5
Plate thickness max.
2
Long description
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide polyamid and of the type insert. The product has a length of 60mm. The width is 35mm. The height is 11mm. The product can be mounted through plates with thickness of 1,5-2mm. Suitable for DIN 3/DIN 5 inserts. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
