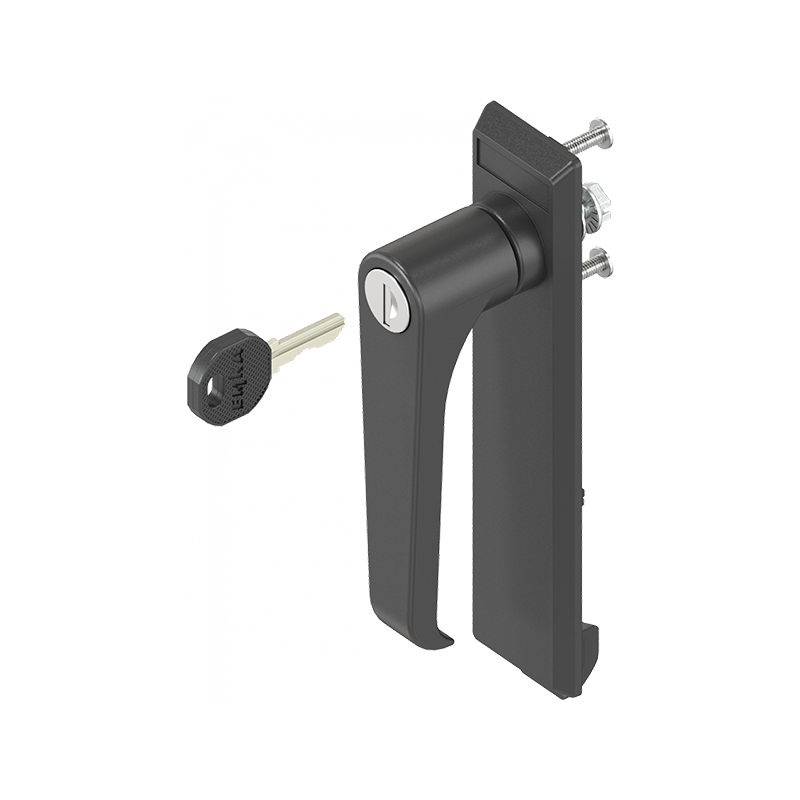

Escutcheon for swinghandle, glass fiber reinforced polyamide, l-handle, cylinder lock, L=160, B=35, H=48, Plate thickness=2-2
MT103514
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide and of the type l-handle. The product has a length of 160mm. The width is 35mm. The height is 48mm. The product can be mounted through plates with thickness of 2-2mm. Including one key. Surface of the L-handle is black powder coated. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Locking
Keyed alike EK333
Aksediameter i mm
0
Fjedervirkning
Yes
Knob material
Die-cast zinc
Components
Escutcheon for swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Type
L-handle
IP Code
IP40
Height in mm
48
Length i mm
160
Plate thickness, min.
2
Plate thickness, max.
2
Long description
Escutcheon for swinghandle manufactured in glass fiber reinforced polyamide and of the type l-handle. The product has a length of 160mm. The width is 35mm. The height is 48mm. The product can be mounted through plates with thickness of 2-2mm. Including one key. Surface of the L-handle is black powder coated. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
