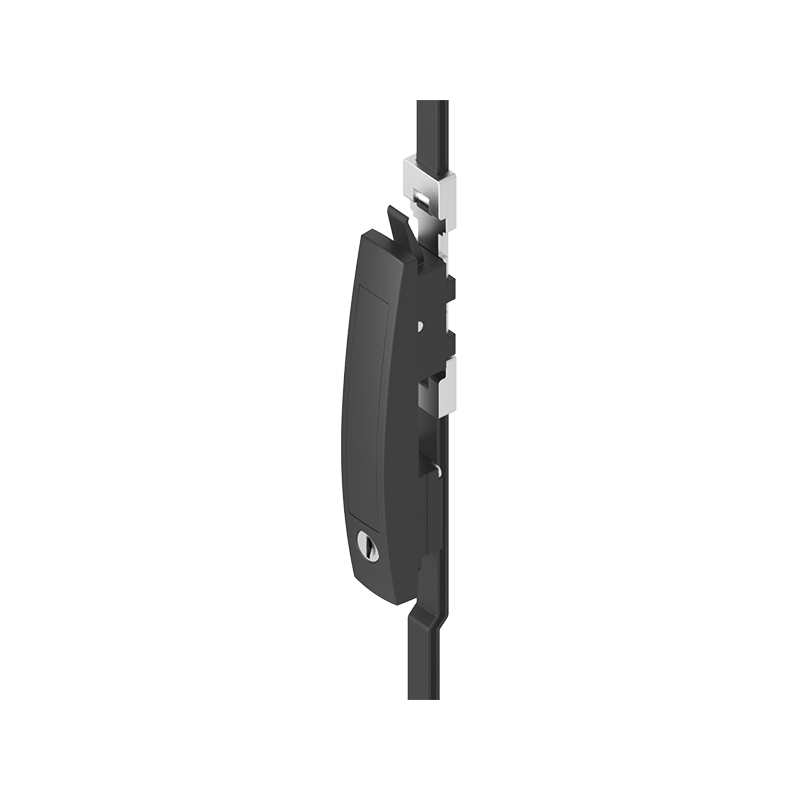

Lifthandle complete set, glass fiber reinforced polyamide, cylinder lock, L=180, B=32, H=19, Plate thickness=2-2
MT104228

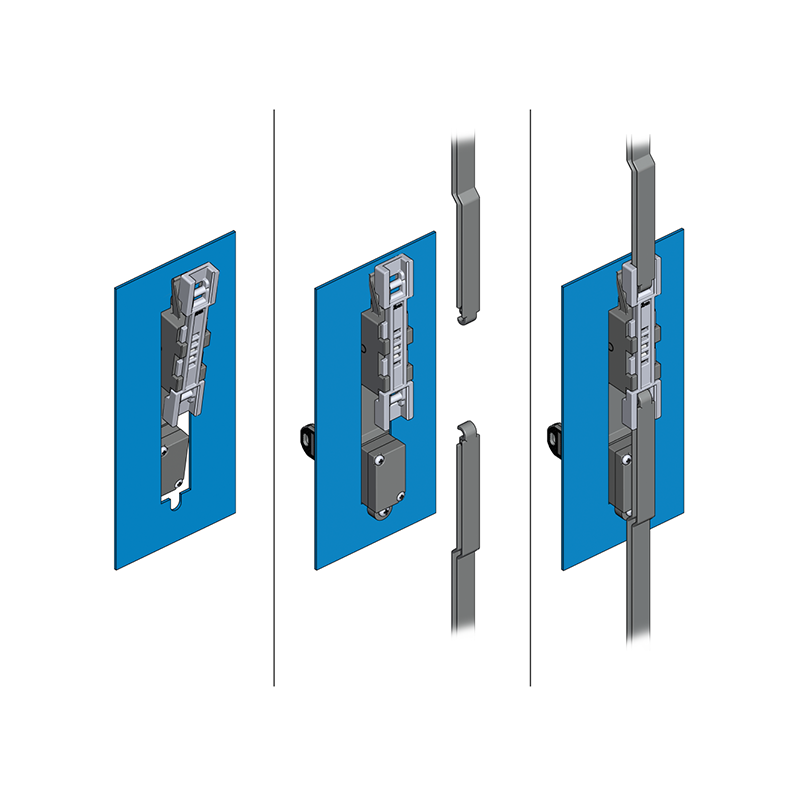

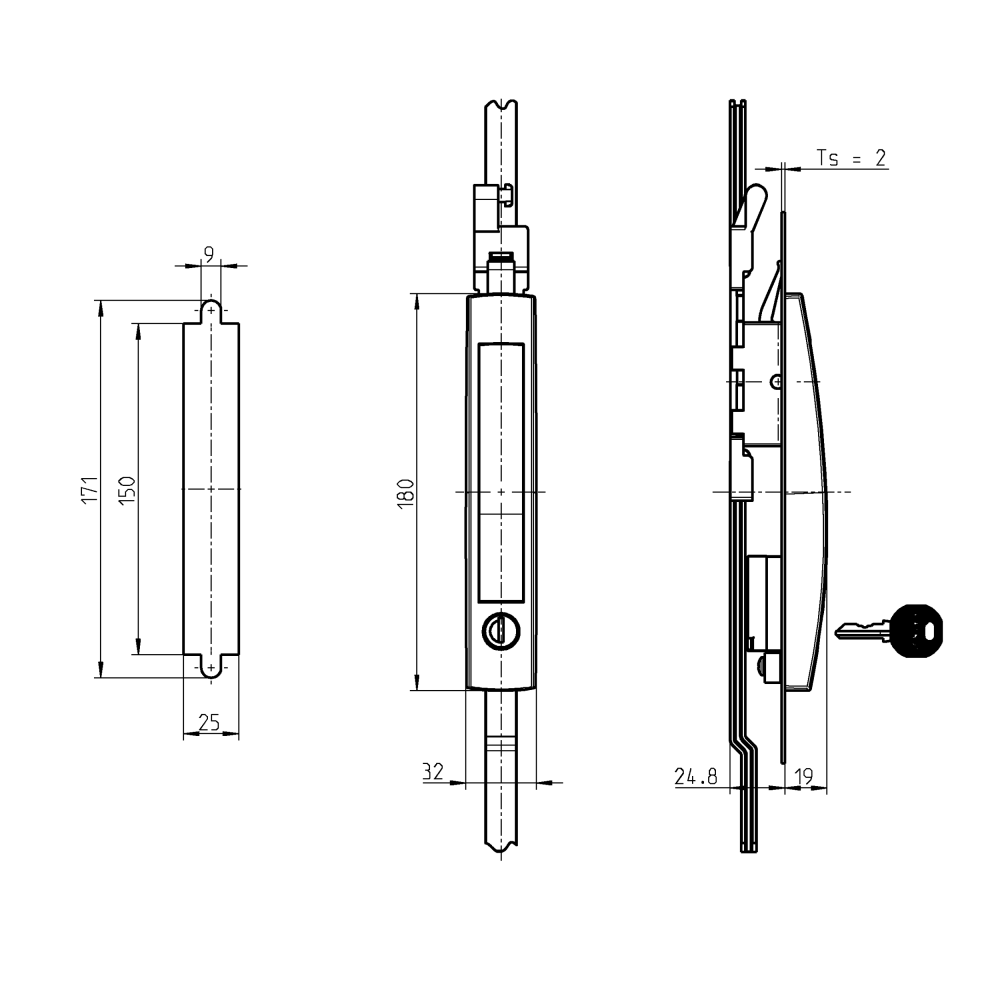

Lifthandle complete set manufatured in glass fiber reinforced polyamide and of the type cylinder lock. The product has a length of 180mm. The width is 32mm. The height is 19mm. The product can be mounted through plates with thickness of 2-2mm. With built-in rod control and flat rods, key, 4 rod guide and catches.

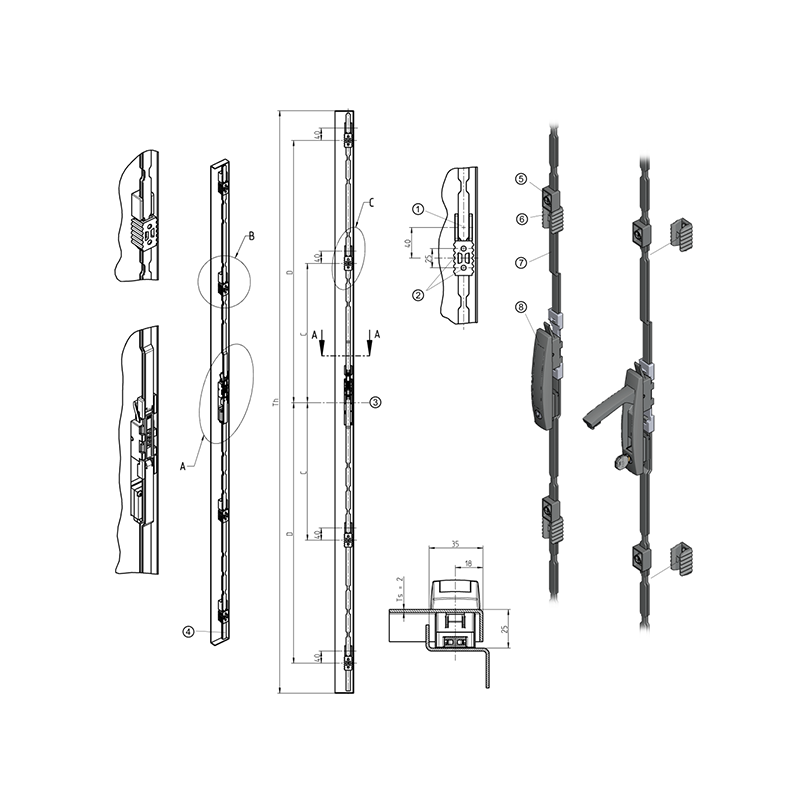

C=not applicable, D=300mm for door height = 800 - 1200mm.
C=not applicable, D=450mm for door height = 1200 - 1600mm.
C=300mm, D=700mm for door height = 1600 - 1900mm.
C=300mm, D=850mm for door height = 1900 - 2200mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-mål
Locking
Keyed alike EK333
Fjedervirkning
Yes
Components
Lifthandle complete set
Material type
Glass fiber reinforced polyamide
Series
1190
Dust cap
No
Type
Cylinder lock
Vandring
18
Diameter in mm
0
Hole diameter in mm
0
Height in mm
19
Length i mm
180
Plate thickness, min.
2
Plate thickness, max.
2
Thickness in mm
0
Long description
Lifthandle complete set manufatured in glass fiber reinforced polyamide and of the type cylinder lock. The product has a length of 180mm. The width is 32mm. The height is 19mm. The product can be mounted through plates with thickness of 2-2mm. With built-in rod control and flat rods, key, 4 rod guide and catches.
C=not applicable, D=300mm for door height = 800 - 1200mm.
C=not applicable, D=450mm for door height = 1200 - 1600mm.
C=300mm, D=700mm for door height = 1600 - 1900mm.
C=300mm, D=850mm for door height = 1900 - 2200mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
