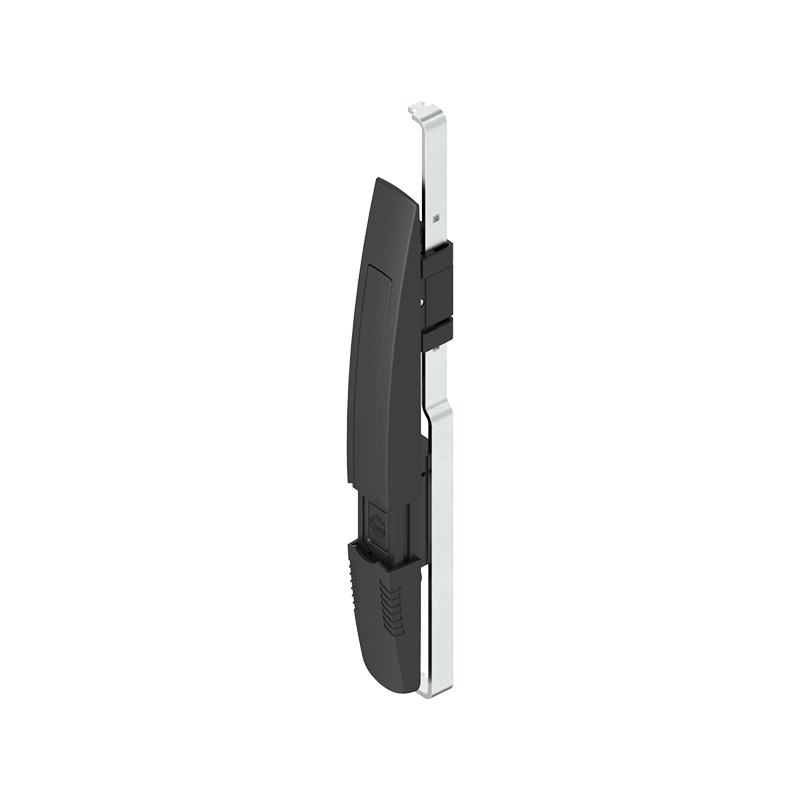

Lifthandle, glass fiber reinforced polyamide, push button, L=265, B=35, H=22, Plate thickness=2-2
MT104227
Lifthandle manufatured in glass fiber reinforced polyamide and of the type push button. The product has a length of 265mm. The width is 35mm. The height is 22mm. The product can be mounted through plates with thickness of 2-2mm. With built-in rod control and flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Spring-loaded
Yes
Shape
T-shape
Components
Lifthandle
Material type
Glass fiber reinforced polyamide
Series
1190
Dust cap
Yes
Type
Push button
IP Code
IP40
Stroke
18
Diameter in mm
0
Hole diameter in mm
0
Height in mm
22
Length in mm
265
Plate thickness min.
2
Plate thickness max.
2
Thickness in mm
0
Long description
Lifthandle manufatured in glass fiber reinforced polyamide and of the type push button. The product has a length of 265mm. The width is 35mm. The height is 22mm. The product can be mounted through plates with thickness of 2-2mm. With built-in rod control and flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
