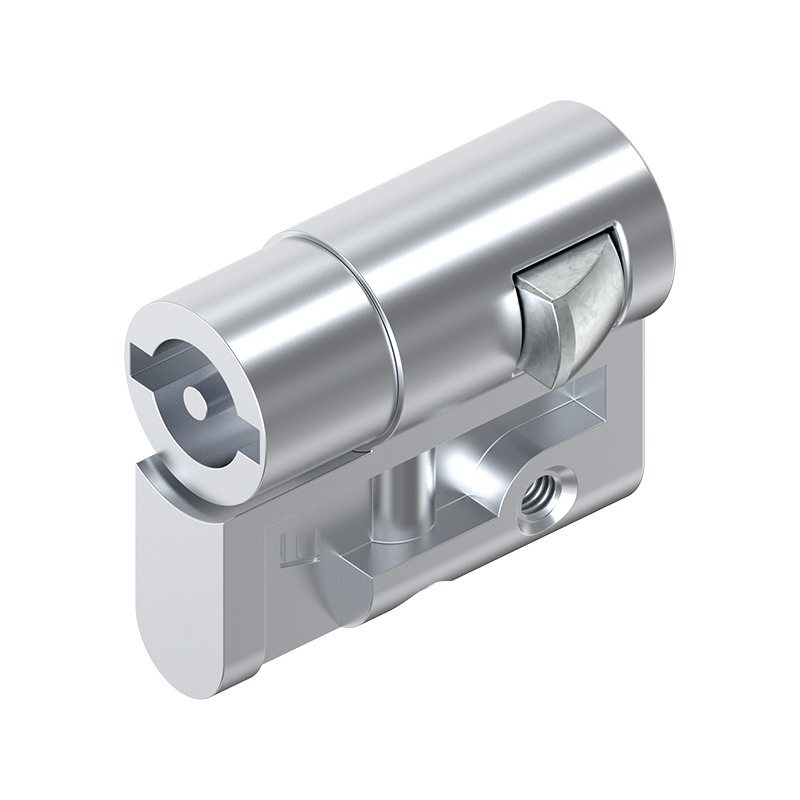

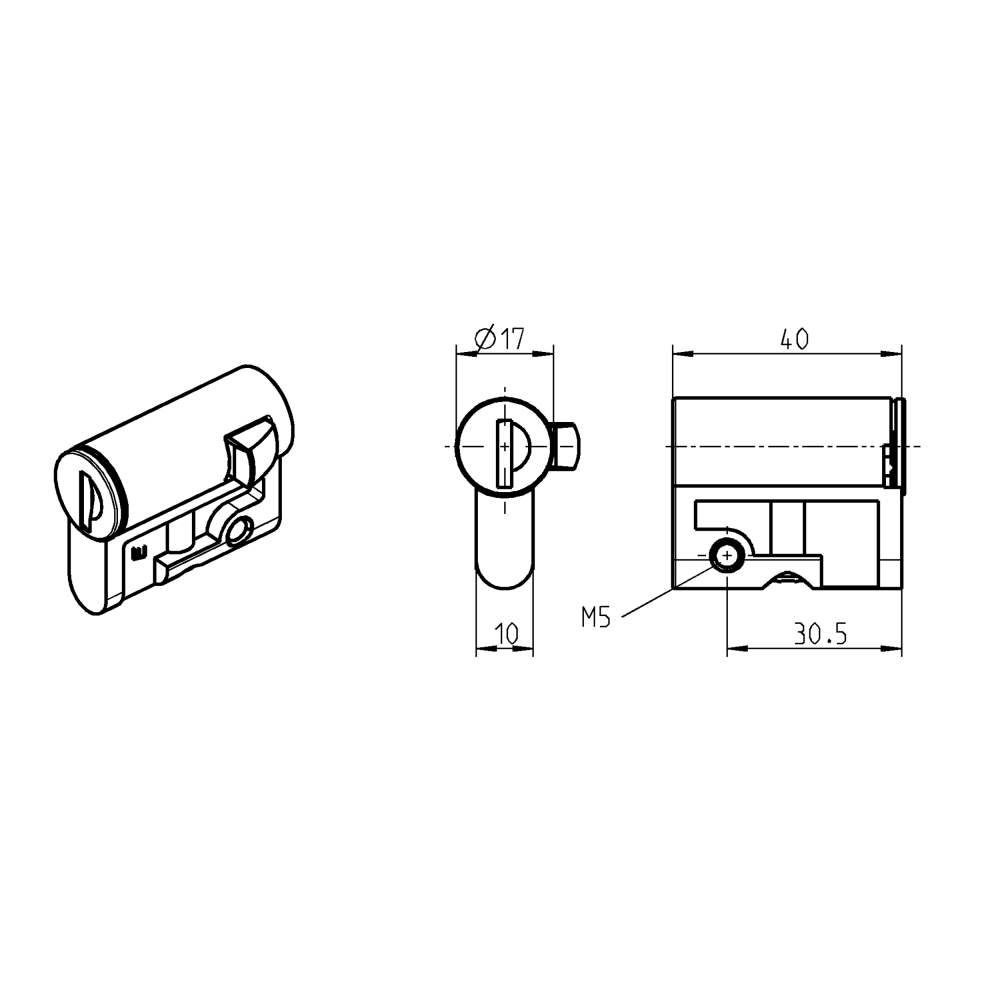

Profile half cylinder, die-cast zinc, double bit 3, L=40
MT102998
Profile half cylinder manufatured in die-cast zinc and of the type double bit 3. The product has a length of 40mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
30
Spring-loaded
Yes
Components
Profile half cylinder
Material type
Die-cast zinc
Surface finish
Chrome plated
Type
DIN 3
Diameter in mm
0
Hole diameter in mm
0
Height in mm
0
Length in mm
40
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
0
Long description
Profile half cylinder manufatured in die-cast zinc and of the type double bit 3. The product has a length of 40mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
