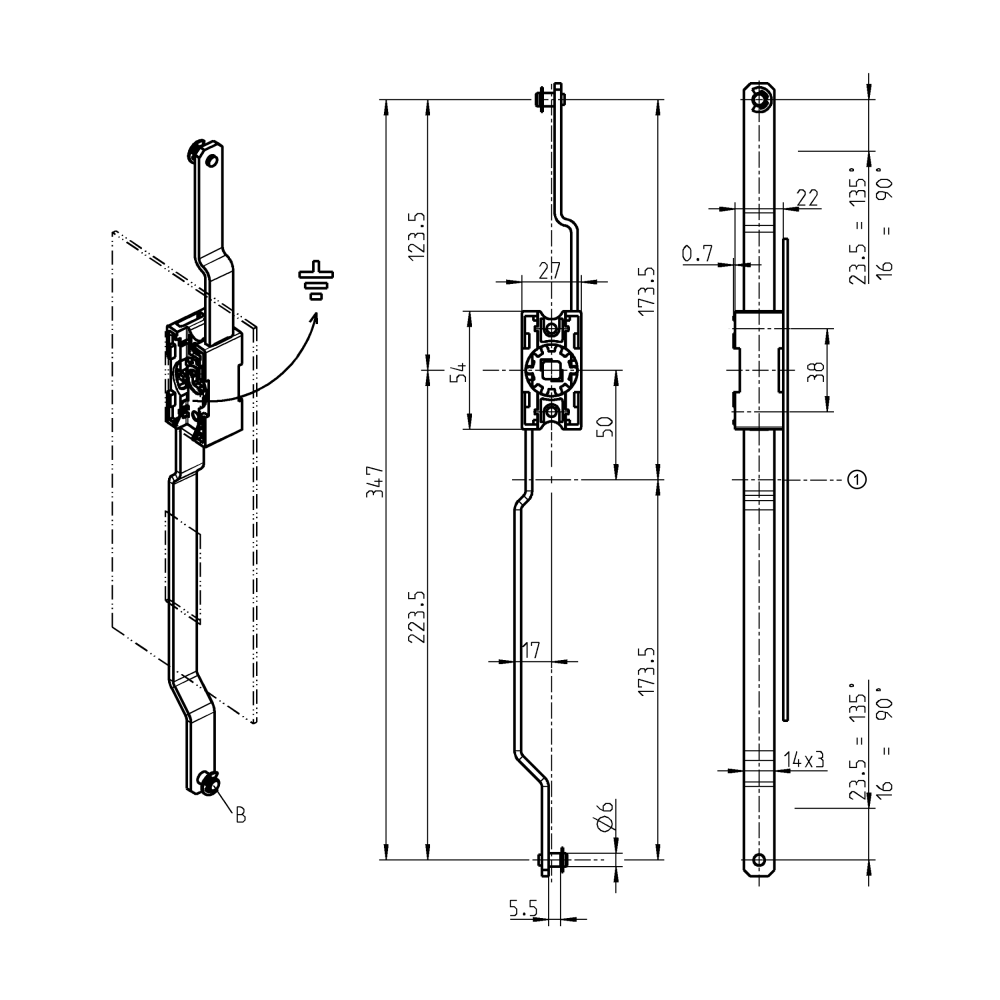

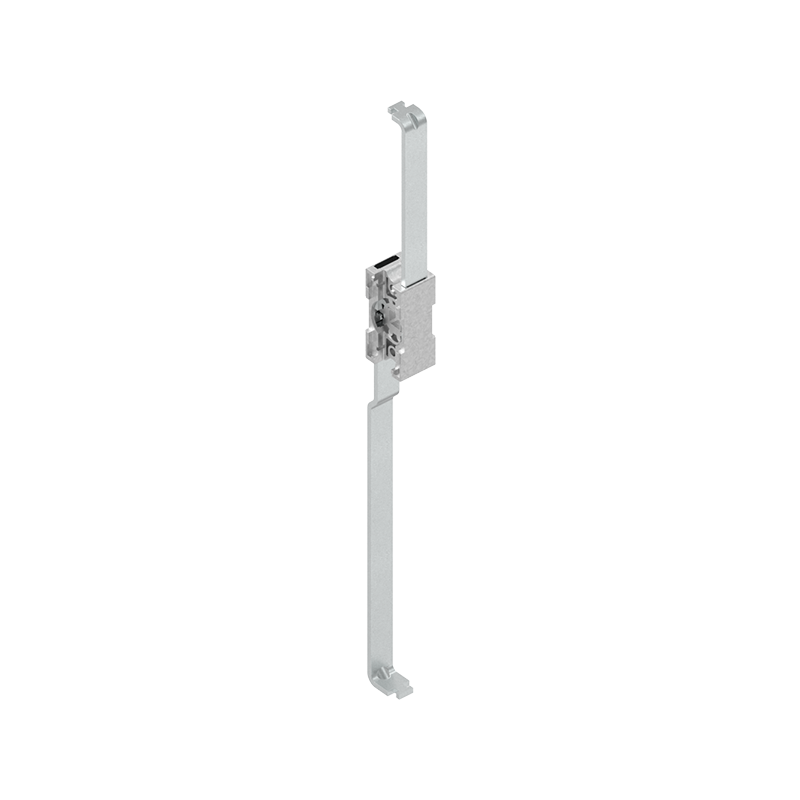

Rod control, die-cast zinc, L=54, B=27, H=22
MT103496
Rod control manufatured in die-cast zinc. The product has a length of 54mm. The width is 27mm. The height is 22mm. Materials are a combination of electro zinc plated steel and die-cast zinc. Suitable for flat rods.
Stroke is 23,5mm for 135° turn.
Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Spring-loaded
Yes
Shape
T-shape
Components
Rod control adapter for cam
Material type
Die-cast zinc
Surface finish
Untreated
Stroke
16 and 23,5
Diameter in mm
0
Hole diameter in mm
0
Height in mm
22
Length in mm
54
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
0
Long description
Rod control manufatured in die-cast zinc. The product has a length of 54mm. The width is 27mm. The height is 22mm. Materials are a combination of electro zinc plated steel and die-cast zinc. Suitable for flat rods.
Stroke is 23,5mm for 135° turn.
Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
