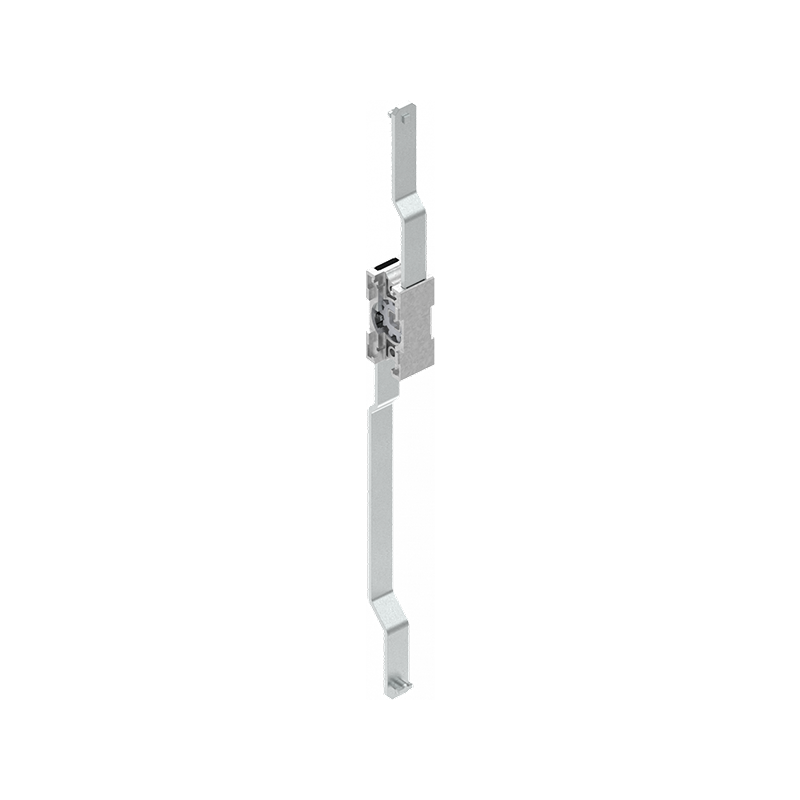

Rod control, die-cast zinc, L=54, B=27, H=22
MT103418

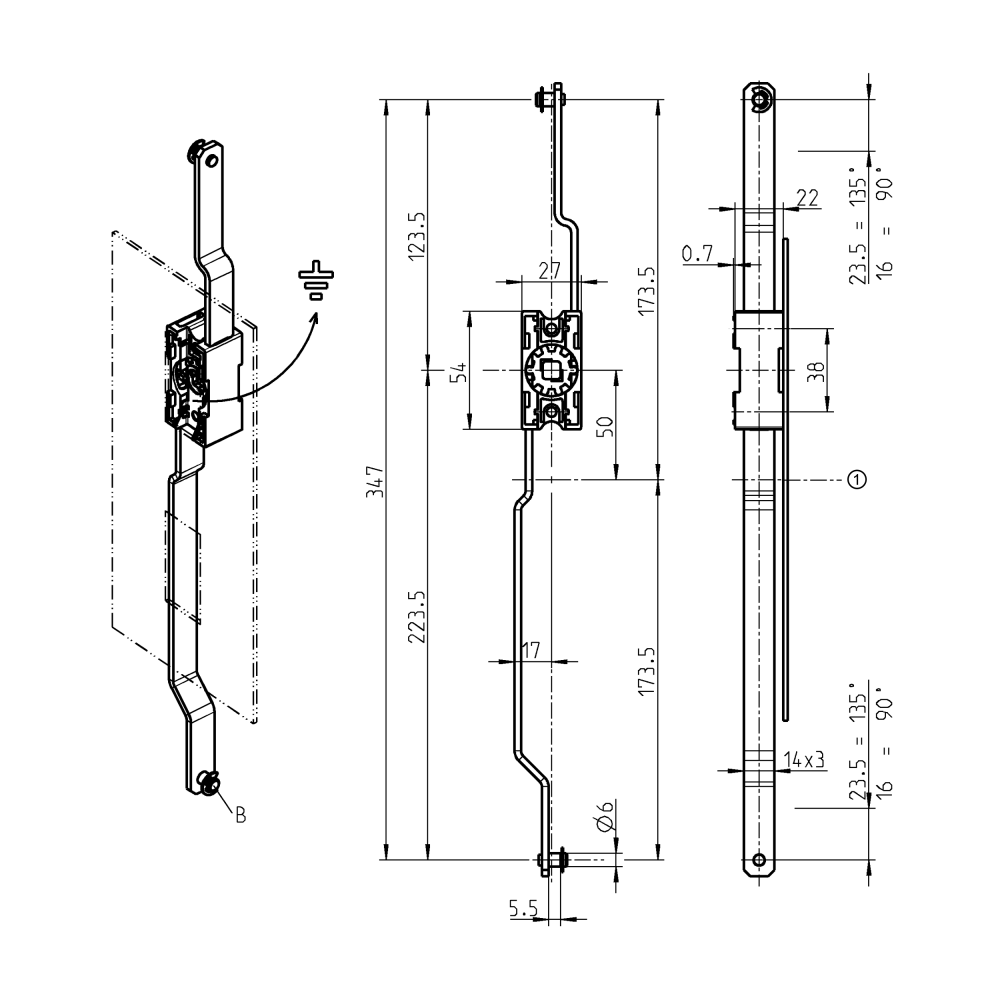

Rod control manufactured in die-cast zinc. The product has a length of 54mm. The width is 27mm. The height is 22mm. Materials are a combination of electro zinc plated steel and die-cast zinc. Suitable for flat rods. Stroke is 23,5mm for 135° turn and 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Axis diameter in mm
6
Spring-loaded
Yes
Shape
T-shape
Components
Rod control adapter for cam
Material type
Die-cast zinc
Surface finish
Untreated
Stroke
Height in mm
22
Length in mm
54
Plate thickness min.
0
Plate thickness max.
0
Long description
Rod control manufactured in die-cast zinc. The product has a length of 54mm. The width is 27mm. The height is 22mm. Materials are a combination of electro zinc plated steel and die-cast zinc. Suitable for flat rods. Stroke is 23,5mm for 135° turn and 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Product data
