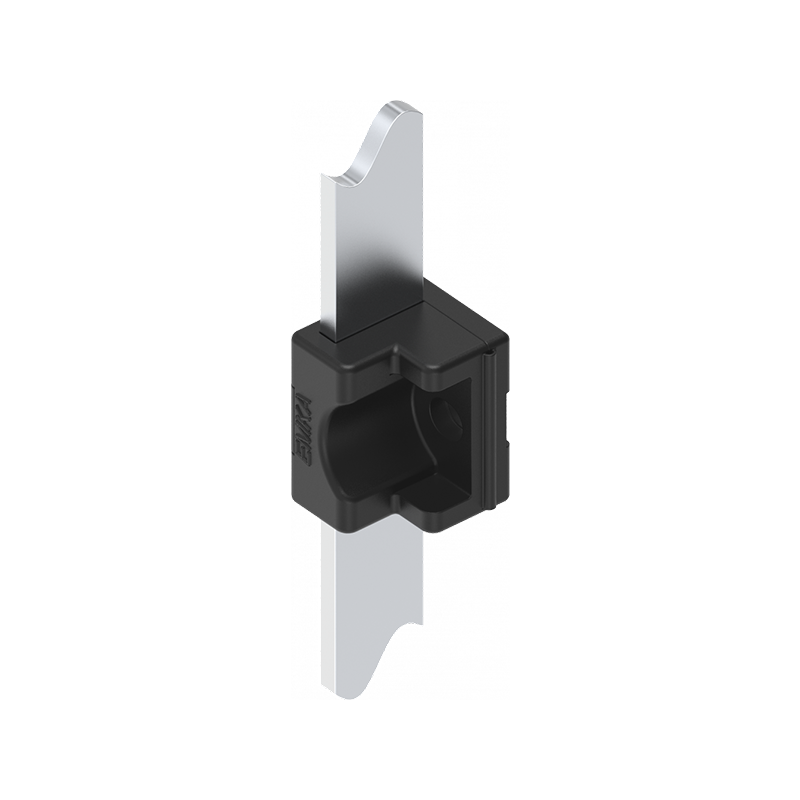

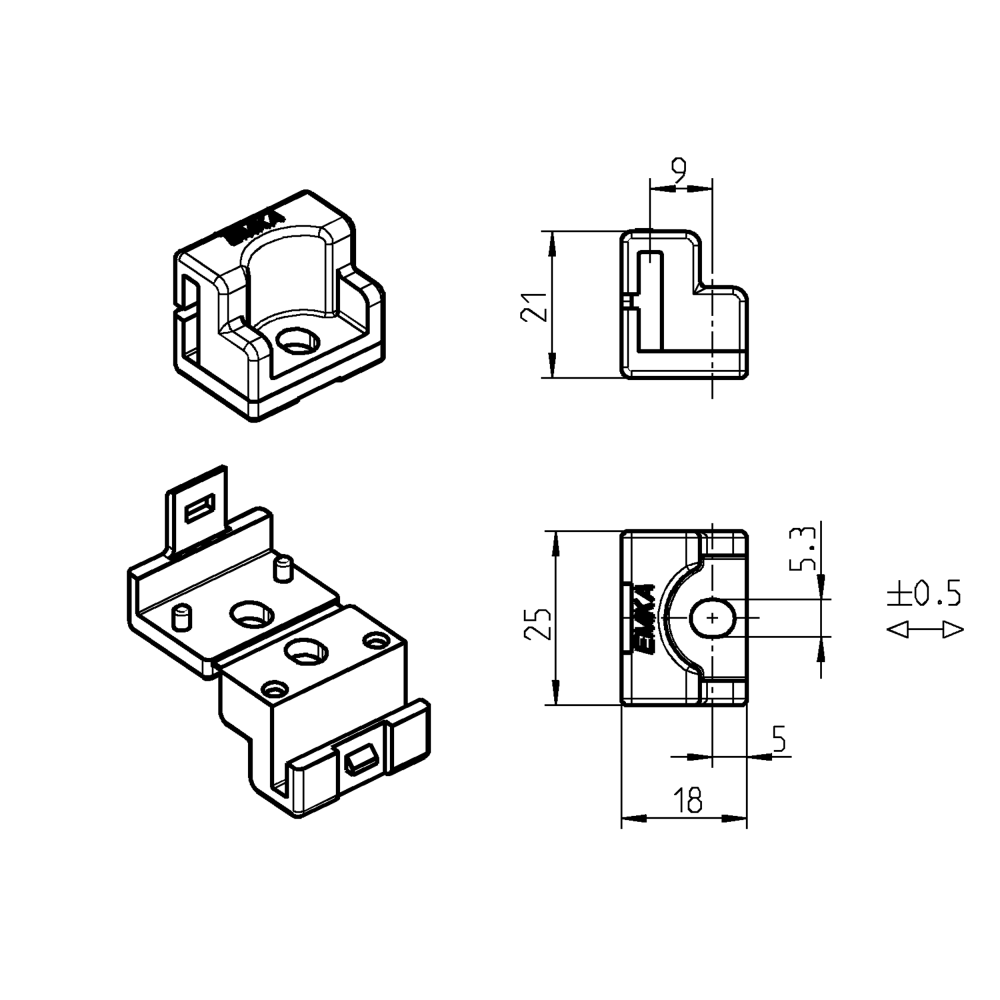

Rod guide, glass fiber reinforced polyamide, L=25, B=18, H=21
MT103282
Rod guide manufactured in glass fiber reinforced polyamide. The product has a length of 25mm. The width is 18mm. The height is 21mm. Weld stud M5X12 fixing. Suitable for 14x3mm flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Aksediameter i mm
0
Fjedervirkning
Yes
Hole type
Oval
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Diameter in mm
0
Hole diameter in mm
0
Height in mm
21
Length i mm
25
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
0
Long description
Rod guide manufactured in glass fiber reinforced polyamide. The product has a length of 25mm. The width is 18mm. The height is 21mm. Weld stud M5X12 fixing. Suitable for 14x3mm flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
