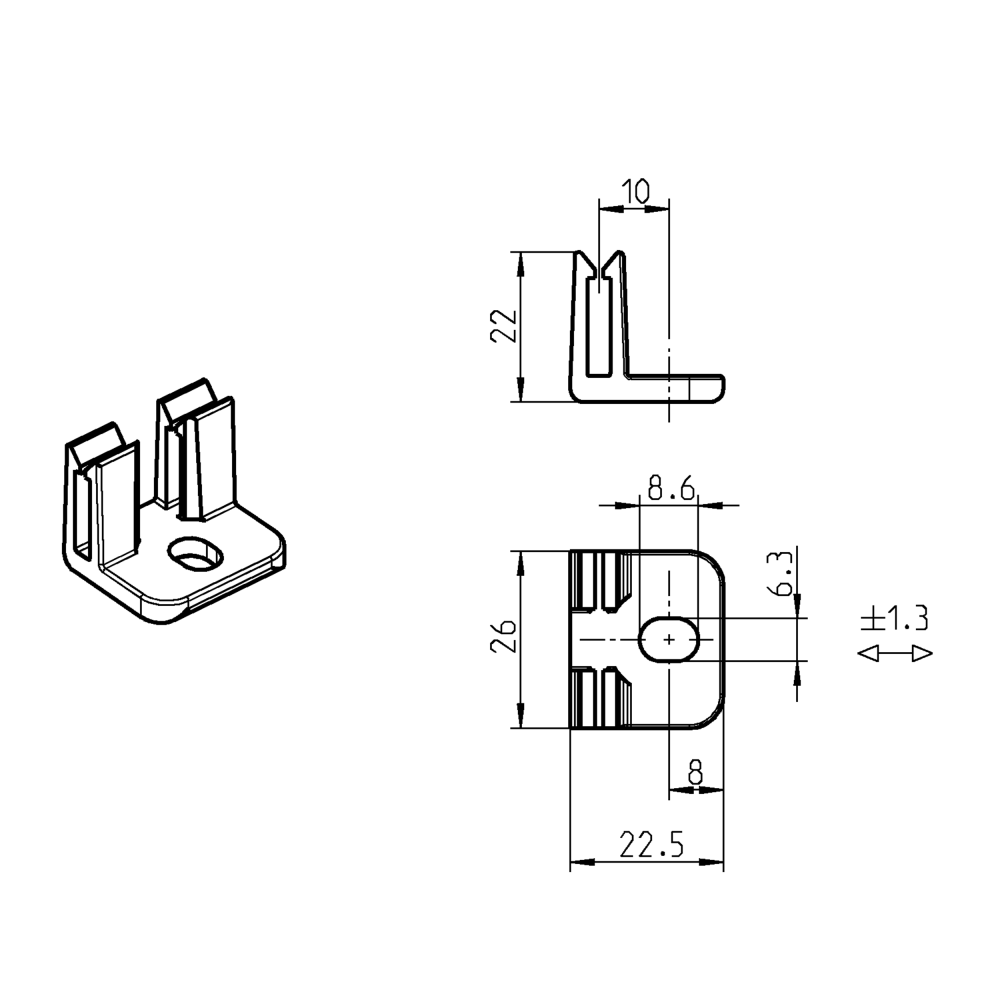

Rod guide, glass fiber reinforced polyamide, L=26, B=22,5, H=22
MT103381

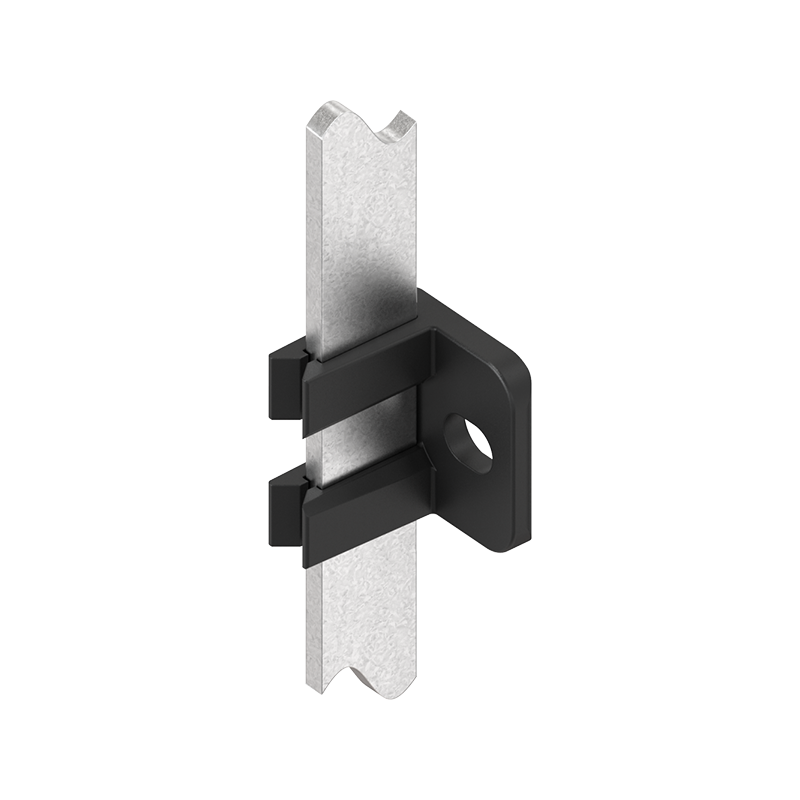

Rod guide manufatured in glass fiber reinforced polyamide. The product has a length of 26mm. The width is 22,5mm. The height is 22mm. Weld stud M6x12 fixing. Suitable for 14x3mm flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Spring-loaded
Yes
Hole type
Oval
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Diameter in mm
0
Hole diameter in mm
0
Height in mm
22
Length in mm
26
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
0
Long description
Rod guide manufatured in glass fiber reinforced polyamide. The product has a length of 26mm. The width is 22,5mm. The height is 22mm. Weld stud M6x12 fixing. Suitable for 14x3mm flat rods. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
