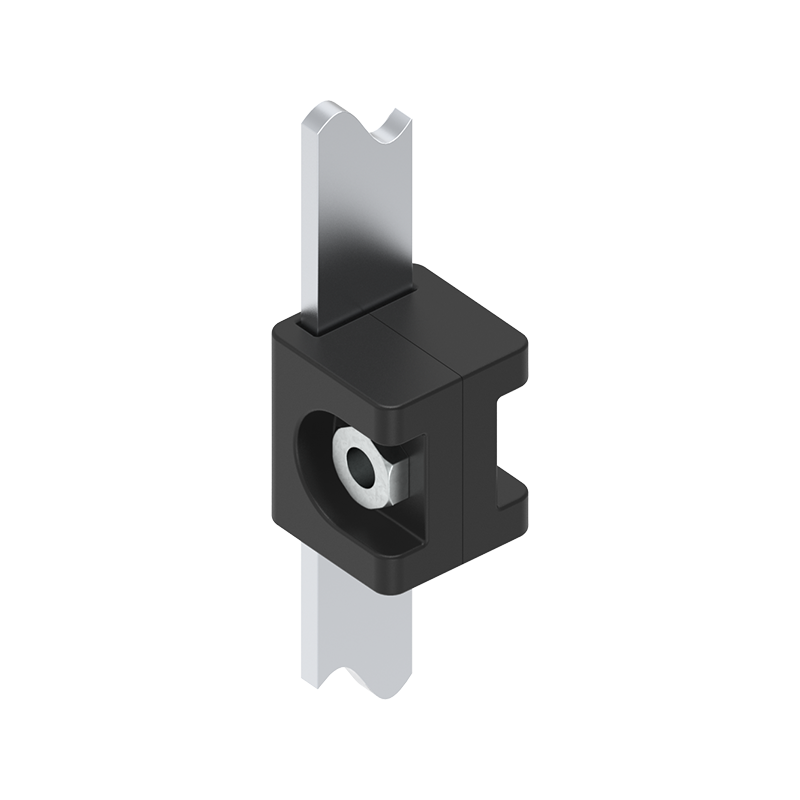

Rod guide, glass fiber reinforced polyamide, L=26, B=22, H=22,1
MT103489

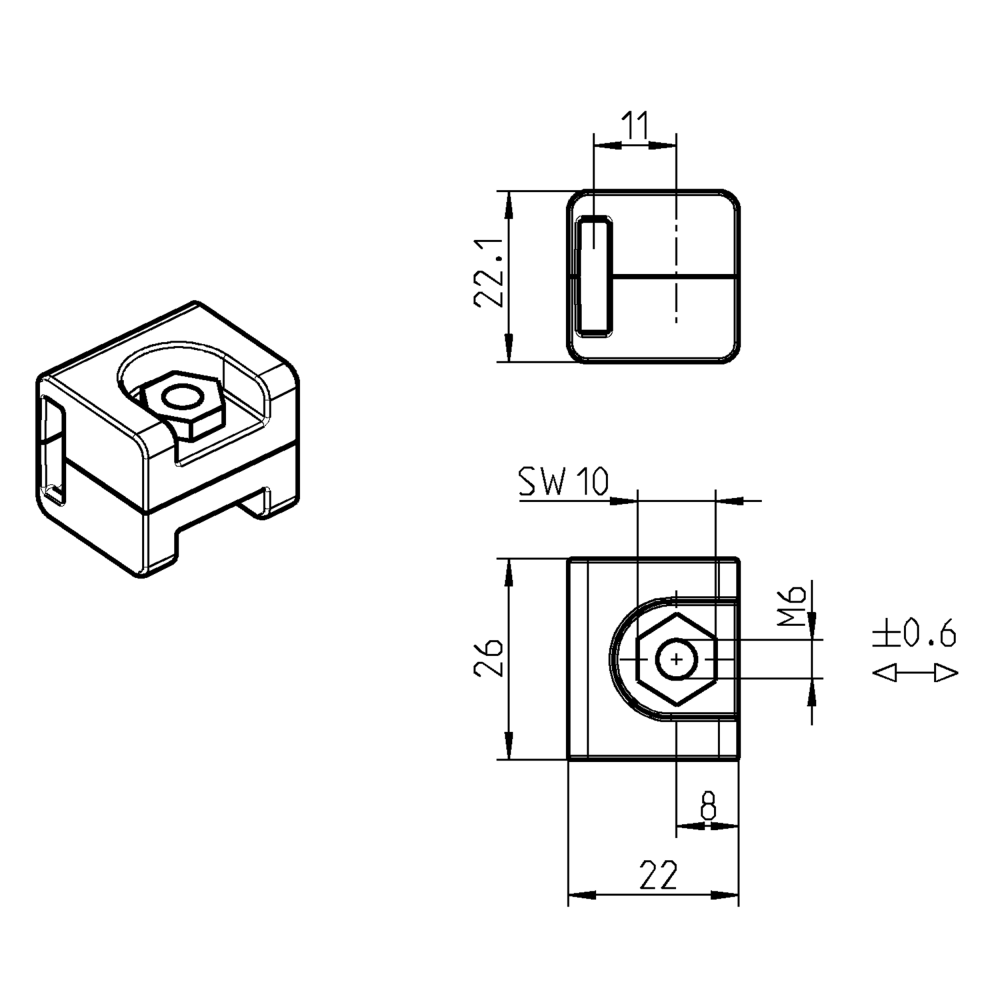

Rod guide manufatured in glass fiber reinforced polyamide. The product has a length of 26mm. The width is 22mm. The height is 22,1mm. Weld stud M6x16/20 fixing. Suitable for 14x3mm flat rods.
Surface treatment of the nut: electro zinc plated. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Fjedervirkning
Yes
Hole type
Oval
Components
Rod guide
Material type
Glass fiber reinforced polyamide
Nut material
Steel
Diameter in mm
0
Hole diameter in mm
0
Height in mm
22.1
Length i mm
26
Plate thickness, min.
0
Plate thickness, max.
0
Thickness in mm
0
Long description
Rod guide manufatured in glass fiber reinforced polyamide. The product has a length of 26mm. The width is 22mm. The height is 22,1mm. Weld stud M6x16/20 fixing. Suitable for 14x3mm flat rods.
Surface treatment of the nut: electro zinc plated. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
