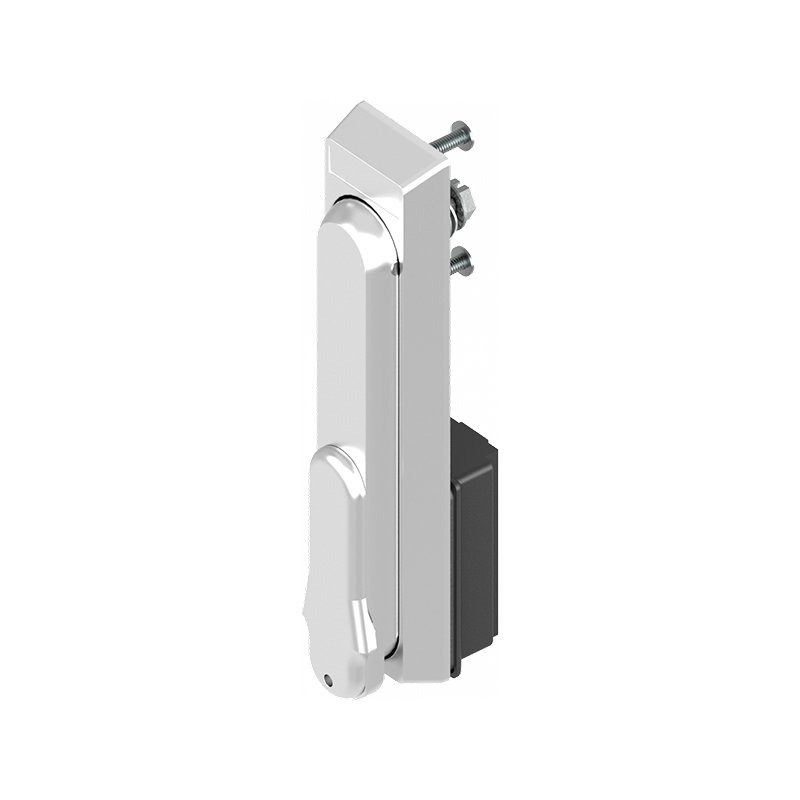

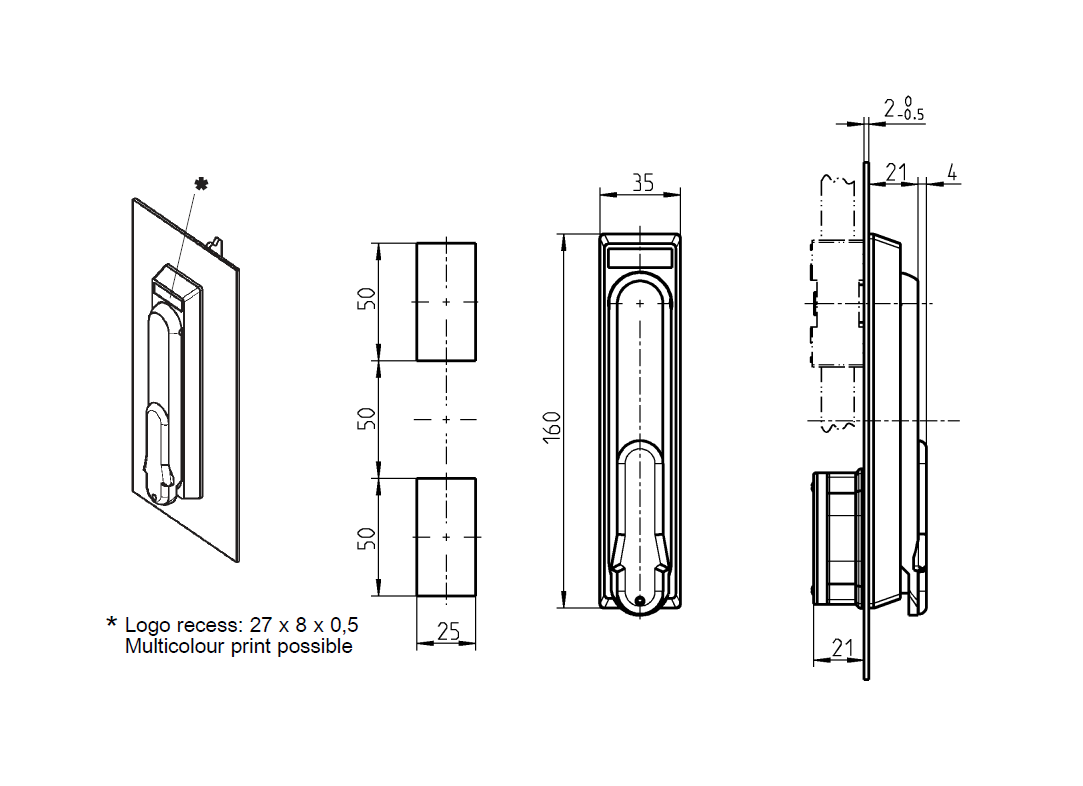

Swinghandle, acid proof stainless steel, profile half cylinder 40mm, L=160, B=25, H=21, Plate thickness=1,5-2
MT103622
Swinghandle manufactured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 25mm. The height is 21mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-mål
30
Aksediameter i mm
0
Fjedervirkning
Yes
Components
Swinghandle
Material
AISI 316
Material type
Acid proof Stainless Steel
Sealing
Foamed
Series
1225
Dust cap
Yes
Type
Profile half cylinder 40mm
IP Code
IP66
Height in mm
21
Length i mm
160
Plate thickness, min.
1.5
Plate thickness, max.
2
Long description
Swinghandle manufactured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 25mm. The height is 21mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
