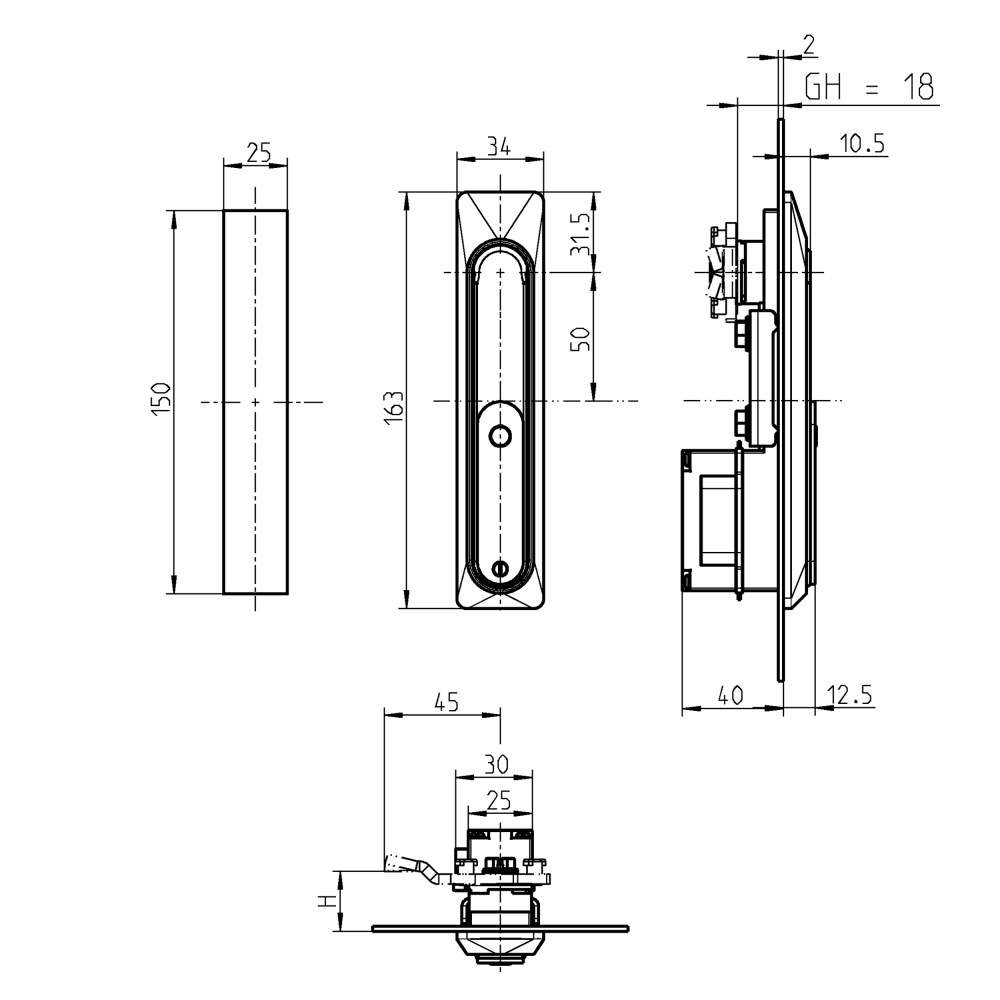

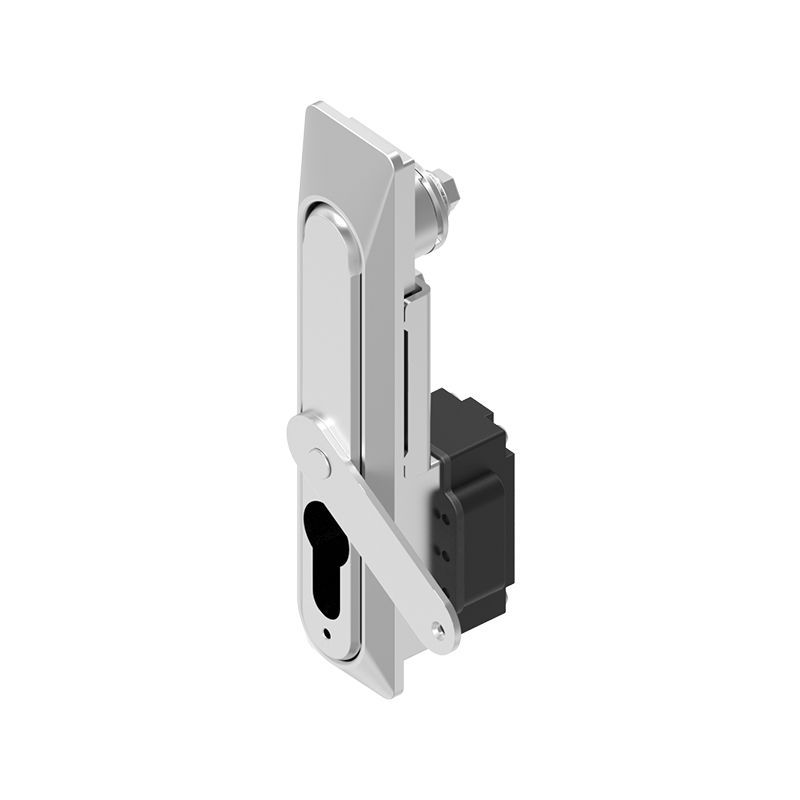

    Swinghandle, acid proof stainless steel, profile half cylinder 40mm, L=163, B=34, H=12,5, Plate thickness=2-2

    MT104040

    Swinghandle manufatured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 163mm. The width is 34mm. The height is 12,5mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.

    A-measure
    30
    Other approvals
    Burglar-resistant RC2
    Spring-loaded
    Yes
    Components
    Swinghandle
    Material
    AISI 316
    Material type
    Acid proof Stainless Steel
    Sealing
    Foamed
    Series
    1154
    Dust cap
    Yes
    Type
    Profile half cylinder 40mm
    IP Code
    IP65
    Diameter in mm
    0
    Hole diameter in mm
    0
    Height in mm
    12.5
    Length in mm
    163
    Plate thickness min.
    2
    Plate thickness max.
    2
    Thickness in mm
    0
    Long description

    Swinghandle manufatured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 163mm. The width is 34mm. The height is 12,5mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
