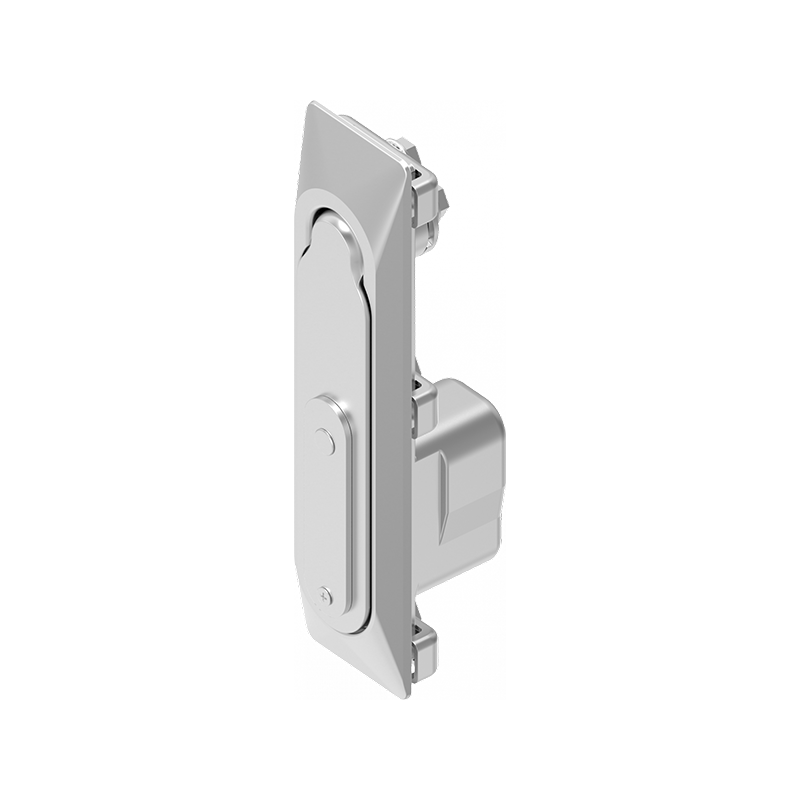

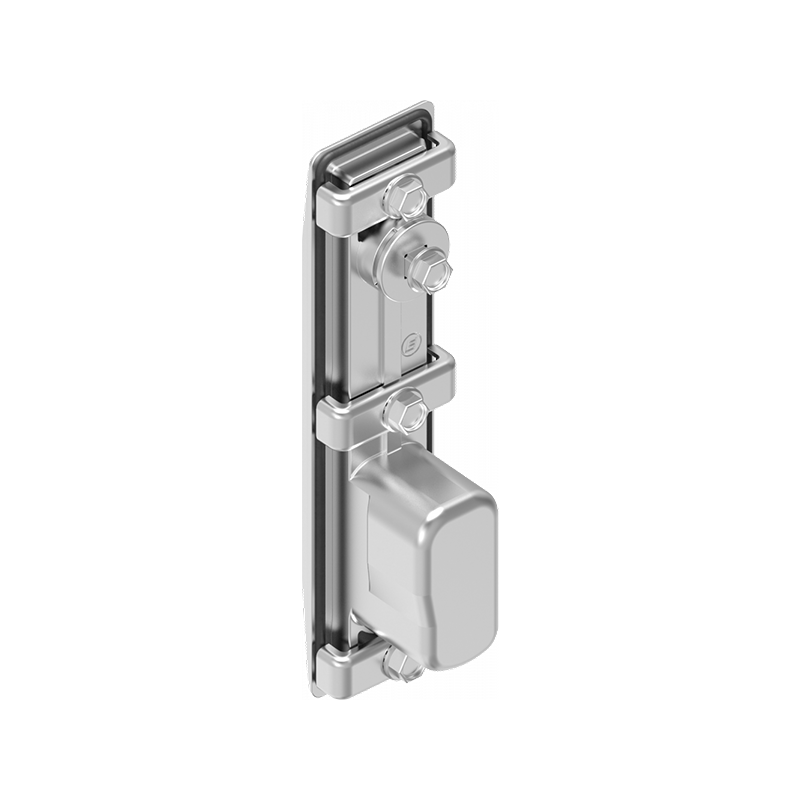

Swinghandle, acid proof stainless steel, profile half cylinder 40mm, L=180, B=43, H=12,5, Plate thickness=2-3
MT104041
Swinghandle manufactured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 180mm. The width is 43mm. The height is 12,5mm. The product can be mounted through plates with thickness of 2-3mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
30
Axis diameter in mm
0
Other approvals
Burglar-resistant RC2
Spring-loaded
Yes
Components
Swinghandle
Material
AISI 316
Material type
Acid proof Stainless Steel
Sealing
Foamed
Series
1154
Dust cap
Yes
Type
Profile half cylinder 40mm
IP Code
IP66
Height in mm
12.5
Length in mm
180
Plate thickness min.
2
Plate thickness max.
3
Long description
Swinghandle manufactured in acid proof stainless steel and of the type profile half cylinder 40mm. The product has a length of 180mm. The width is 43mm. The height is 12,5mm. The product can be mounted through plates with thickness of 2-3mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
