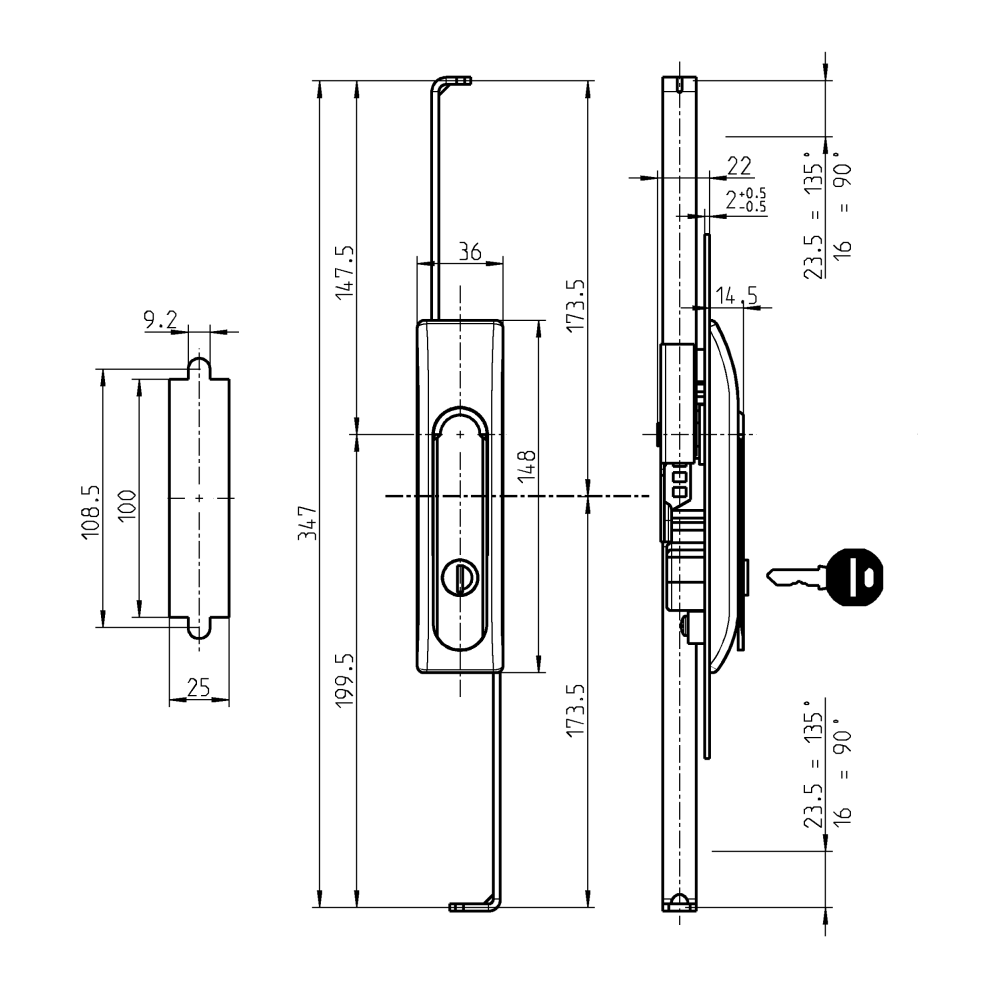

Swinghandle, die-cast zinc, cylinder lock, L=148, B=36, H=14,5, Plate thickness=1,5-2,5
MT104077
Swinghandle manufactured in die-cast zinc and of the type cylinder lock. The product has a length of 148mm. The width is 36mm. The height is 14,5mm. The product can be mounted through plates with thickness of 1,5-2,5mm. Including one key. Materials are a combination of polyamide and black powder coated die-cast zinc. Stroke is 23,5mm for 135° turn. Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Locking
Keyed alike EK333
Axis diameter in mm
0
Spring-loaded
Yes
Shape
T-shape
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Series
1160
Dust cap
No
Type
Cylinder lock
IP Code
IP65
Stroke
Diameter in mm
0
Hole diameter in mm
0
Height in mm
14.5
Length in mm
148
Plate thickness min.
1.5
Plate thickness max.
2.5
Thickness in mm
0
Long description
Swinghandle manufactured in die-cast zinc and of the type cylinder lock. The product has a length of 148mm. The width is 36mm. The height is 14,5mm. The product can be mounted through plates with thickness of 1,5-2,5mm. Including one key. Materials are a combination of polyamide and black powder coated die-cast zinc. Stroke is 23,5mm for 135° turn. Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
