Swinghandle, die-cast zinc, cylinder lock, L=160, B=36, H=24, Plate thickness=2-2
MT104004

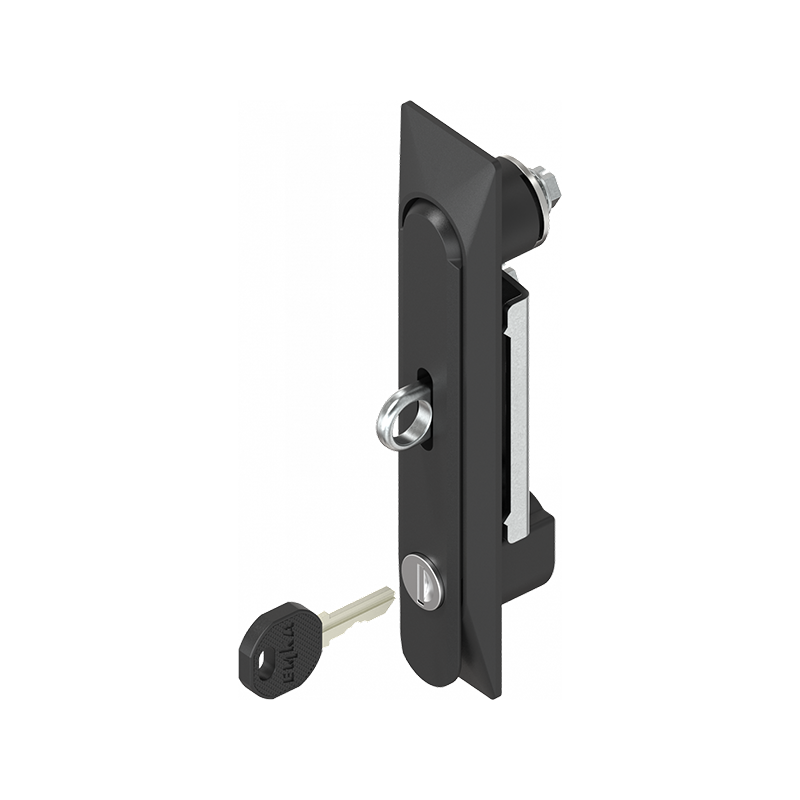

Swinghandle manufactured in die-cast zinc and of the type cylinder lock. The product has a length of 160mm. The width is 36mm. The height is 24mm. The product can be mounted through plates with thickness of 2-2mm. Including one key. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Locking
Keyed alike EK333
Axis diameter in mm
0
Spring-loaded
Yes
Padlockable
Yes
Insert material
Stainless steel
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Series
1150
Dust cap
No
Type
Cylinder lock
IP Code
IP65
Height in mm
24
Length in mm
160
Plate thickness min.
2
Plate thickness max.
2
Long description
Swinghandle manufactured in die-cast zinc and of the type cylinder lock. The product has a length of 160mm. The width is 36mm. The height is 24mm. The product can be mounted through plates with thickness of 2-2mm. Including one key. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
