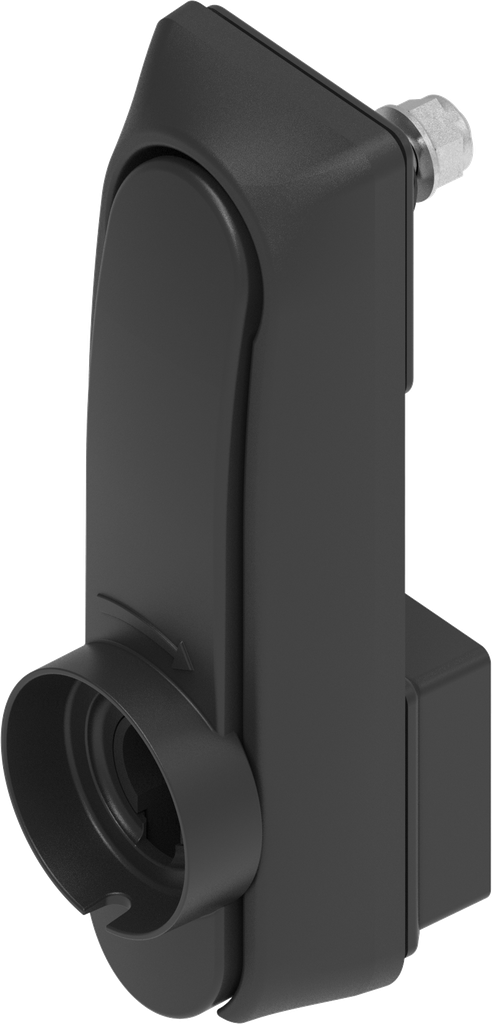

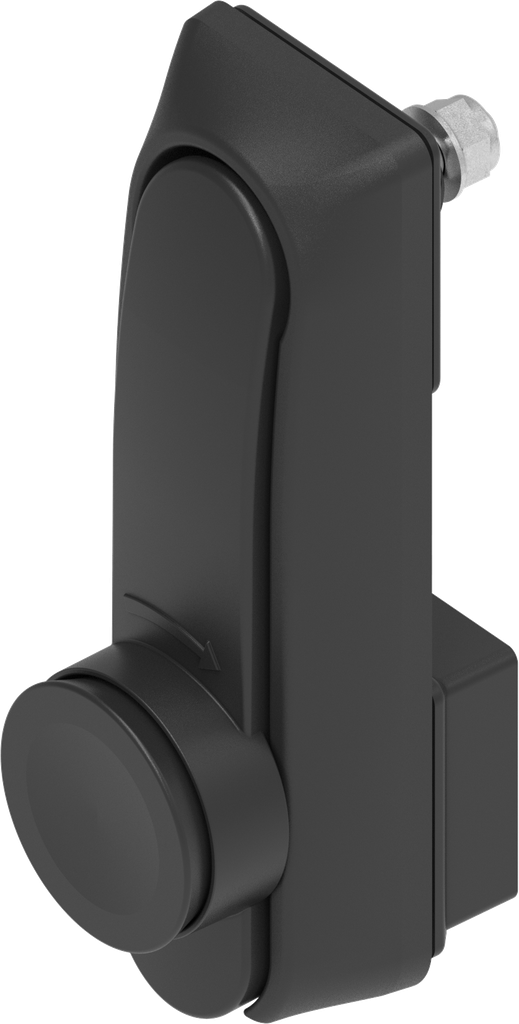

Swinghandle, die-cast zinc, iLOQ cylinder, L=164,5, B=54, H=46, Plate thickness=2-6
MT111838

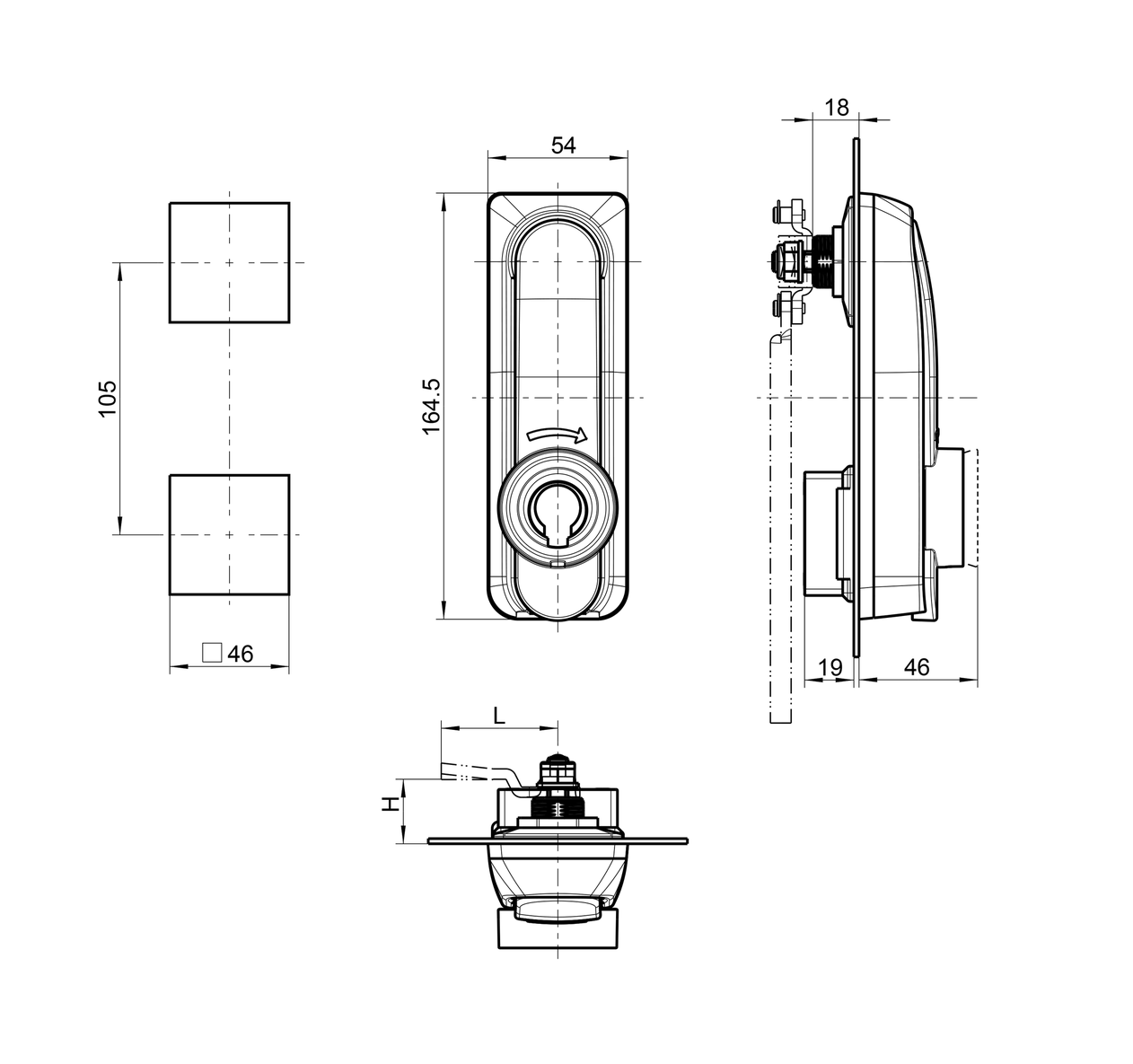

Swinghandle manufactured in die-cast zinc and of the type iLOQ cylinder. The product has a length of 164,5mm. The width is 54mm. The height is 46mm. The product can be mounted through plates with thickness of 2-6mm. Materials are a combination of glass fiber reinforced polyamide and black powder coated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Series
1317
Type
iLOQ cylinder
IP Code
IP65
Height in mm
46
Length i mm
164.5
Plate thickness, min.
2
Plate thickness, max.
6
Long description
Swinghandle manufactured in die-cast zinc and of the type iLOQ cylinder. The product has a length of 164,5mm. The width is 54mm. The height is 46mm. The product can be mounted through plates with thickness of 2-6mm. Materials are a combination of glass fiber reinforced polyamide and black powder coated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
