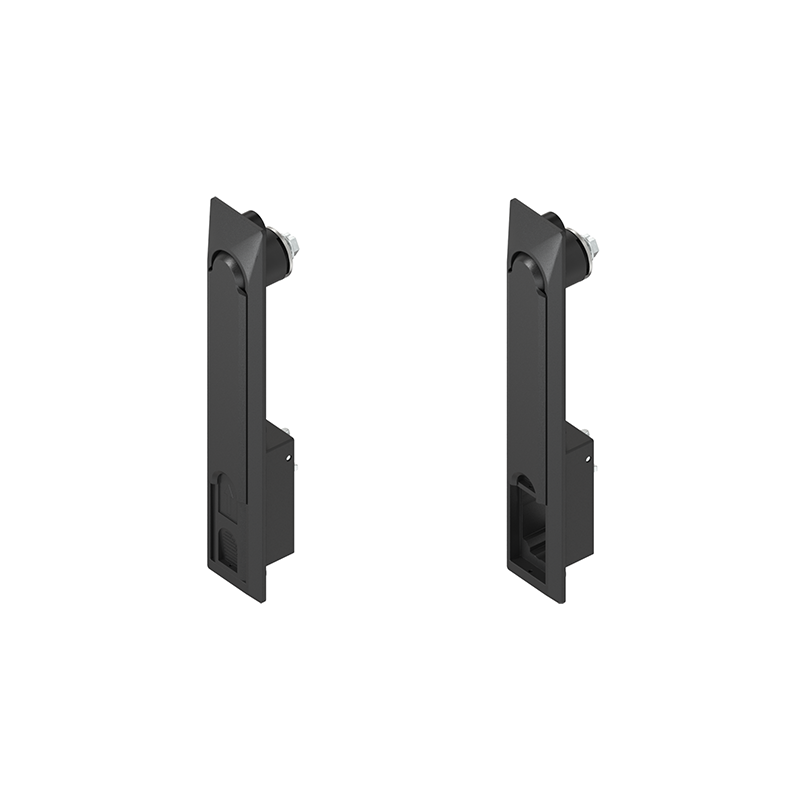

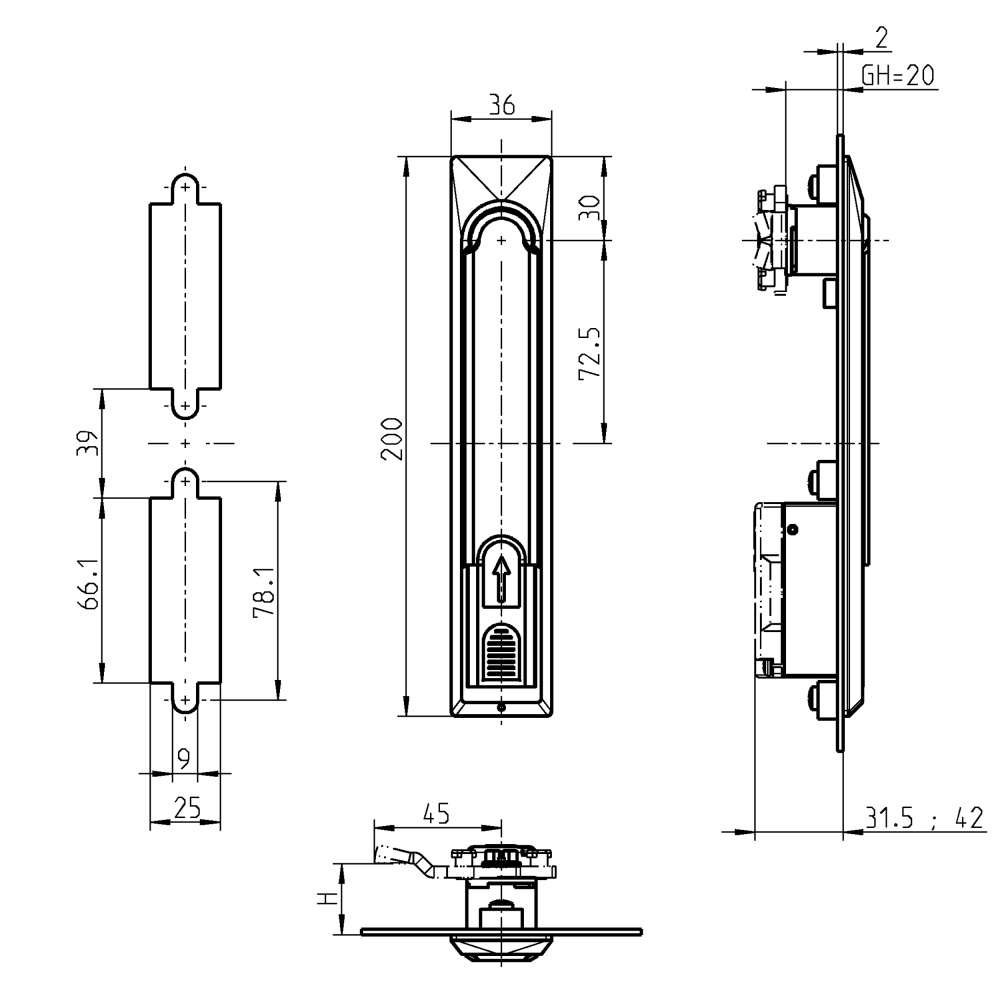

Swinghandle, die-cast zinc, locking set, L=200, B=36, H=9, Plate thickness=2-2
MT104031
Swinghandle manufatured in die-cast zinc and of the type locking set. The product has a length of 200mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Spring-loaded
Yes
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Series
1151
Dust cap
Yes
Type
Locking set
IP Code
IP54
Diameter in mm
0
Hole diameter in mm
0
Height in mm
9
Length in mm
200
Plate thickness min.
2
Plate thickness max.
2
Thickness in mm
0
Nettovægt
0.358
Varekode
8302490099
Lande-/områdekode for oprindelse
BA
Long description
Swinghandle manufatured in die-cast zinc and of the type locking set. The product has a length of 200mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
