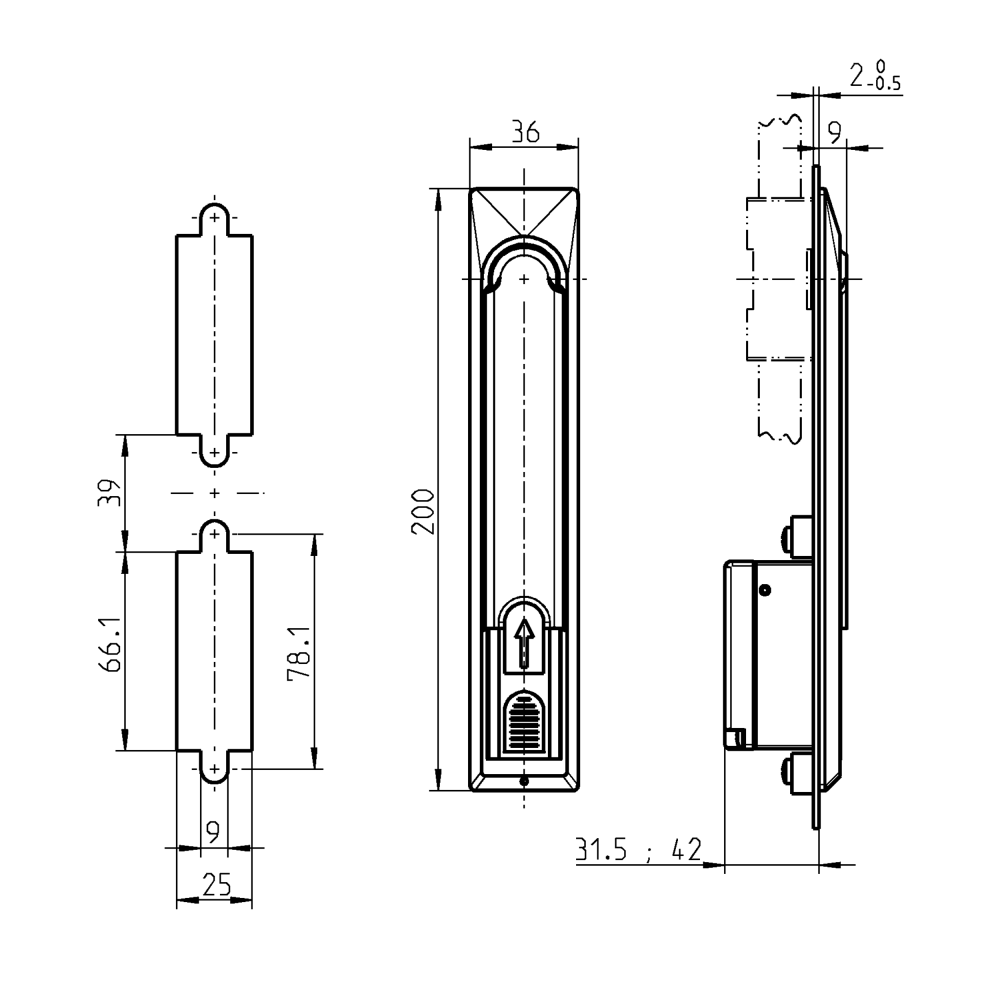

Swinghandle, die-cast zinc, locking set, L=200, B=36, H=9, Plate thickness=2-2
MT104032
Swinghandle manufactured in die-cast zinc and of the type locking set. The product has a length of 200mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-mål
30
Aksediameter i mm
0
Fjedervirkning
Yes
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Series
1151
Dust cap
Yes
Type
Locking set
IP Code
IP54
Diameter in mm
0
Hole diameter in mm
0
Height in mm
9
Length i mm
200
Plate thickness, min.
2
Plate thickness, max.
2
Thickness in mm
0
Long description
Swinghandle manufactured in die-cast zinc and of the type locking set. The product has a length of 200mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
