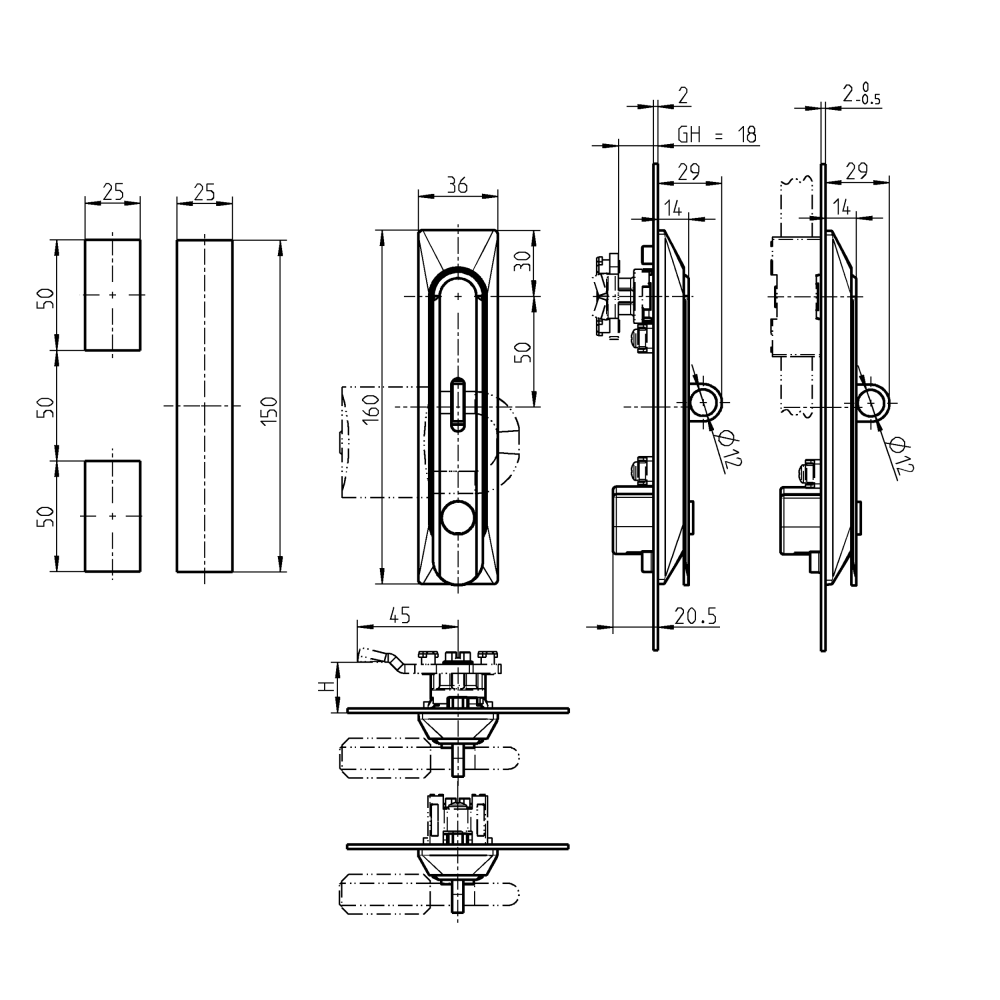

Swinghandle, die-cast zinc, push button, L=160, B=36, H=29, Plate thickness=1-3
MT104005
Swinghandle manufactured in die-cast zinc and of the type push button. The product has a length of 160mm. The width is 36mm. The height is 29mm. The product can be mounted through plates with thickness of 1-3mm. Materials are a combination of polyamide and black powder coated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Aksediameter i mm
0
Fjedervirkning
Yes
Padlockable
Yes
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Series
1150
Dust cap
No
Type
Push button
IP Code
IP65
Diameter in mm
0
Hole diameter in mm
0
Height in mm
29
Length i mm
160
Plate thickness, min.
1
Plate thickness, max.
3
Thickness in mm
0
Long description
Swinghandle manufactured in die-cast zinc and of the type push button. The product has a length of 160mm. The width is 36mm. The height is 29mm. The product can be mounted through plates with thickness of 1-3mm. Materials are a combination of polyamide and black powder coated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
