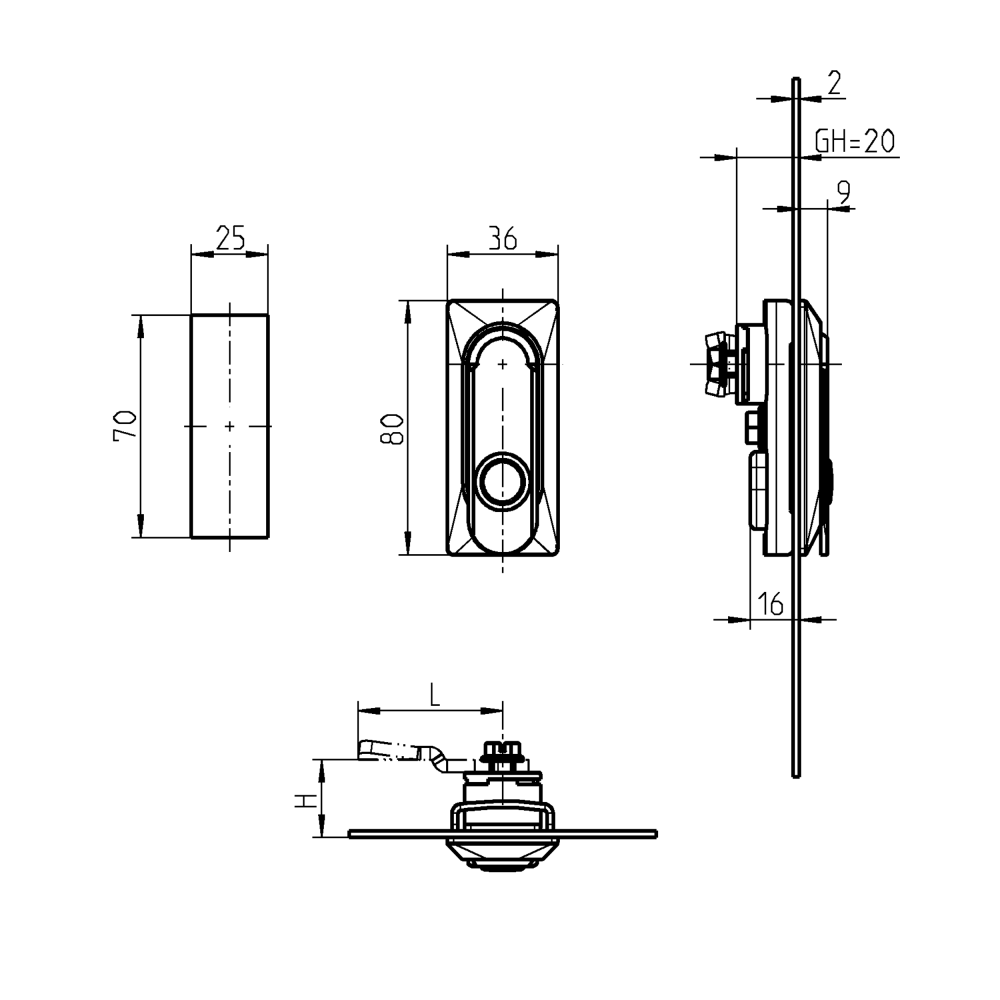

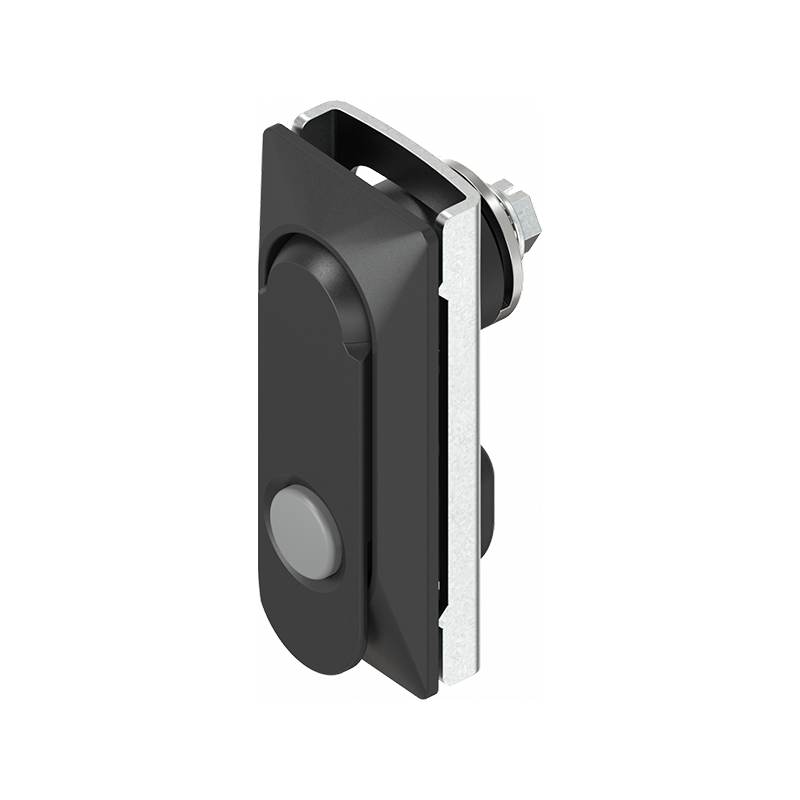

Swinghandle, die-cast zinc, push button, L=80, B=36, H=9, Plate thickness=2-2
MT104033
Swinghandle manufactured in die-cast zinc and of the type push button. The product has a length of 80mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Axis diameter in mm
0
Spring-loaded
Yes
Components
Swinghandle
Material type
Die-cast zinc
Surface finish
Black powder coated
Sealing
Foamed
Dust cap
No
Type
Push button
IP Code
IP65
Height in mm
9
Length in mm
80
Plate thickness min.
2
Plate thickness max.
2
Long description
Swinghandle manufactured in die-cast zinc and of the type push button. The product has a length of 80mm. The width is 36mm. The height is 9mm. The product can be mounted through plates with thickness of 2-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
