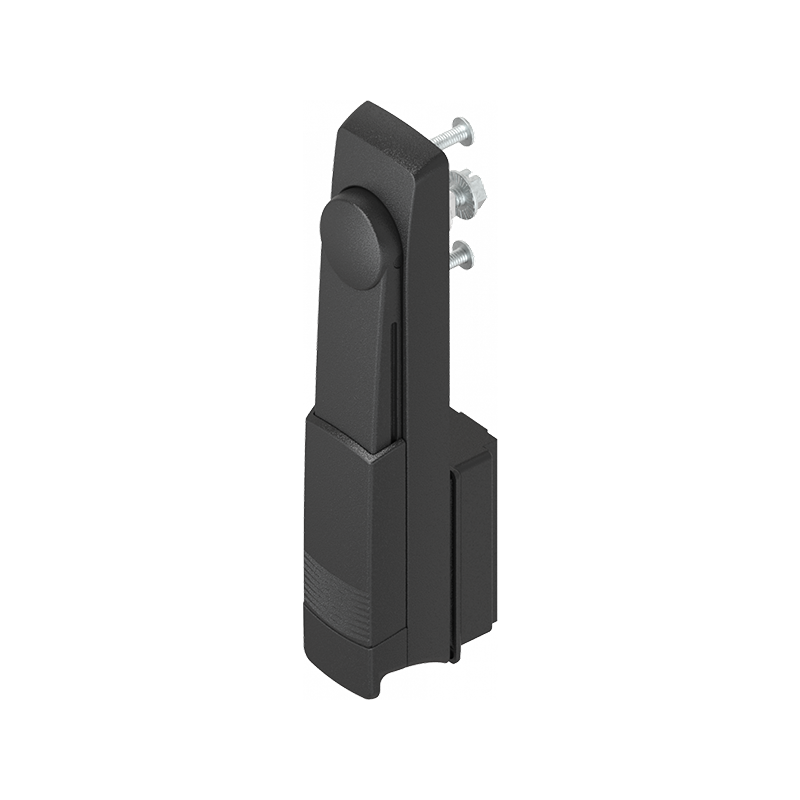

Swinghandle, glass fiber reinforced polyamide, cylinder lock, L=160, B=35, H=24, Plate thickness=1,5-2
MT104329

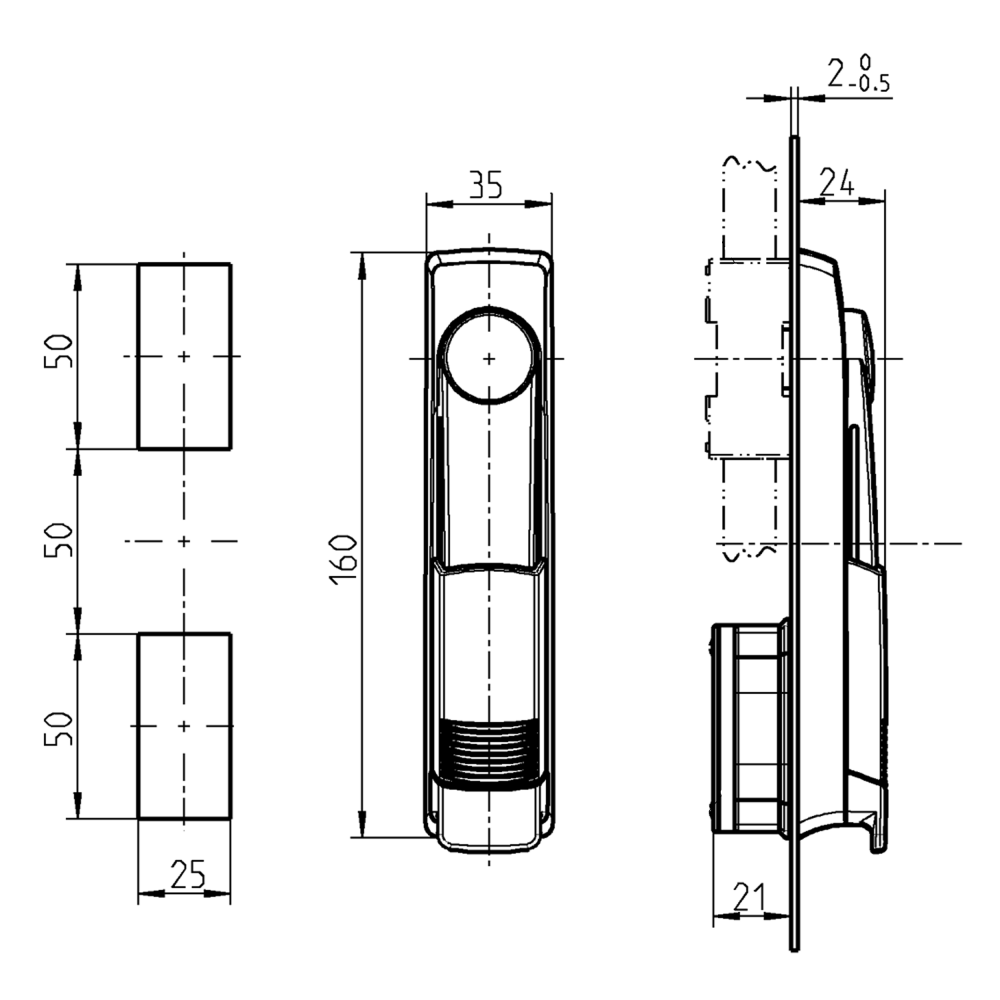

Swinghandle manufactured in glass fiber reinforced polyamide and of the type cylinder lock. The product has a length of 160mm. The width is 35mm. The height is 24mm. The product can be mounted through plates with thickness of 1,5-2mm. Including one key. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
Locking
Keyed alike EK333
Axis diameter in mm
0
Spring-loaded
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1225
Dust cap
Yes
Type
Cylinder lock
IP Code
IP65
Height in mm
24
Length in mm
160
Plate thickness min.
1.5
Plate thickness max.
2
Long description
Swinghandle manufactured in glass fiber reinforced polyamide and of the type cylinder lock. The product has a length of 160mm. The width is 35mm. The height is 24mm. The product can be mounted through plates with thickness of 1,5-2mm. Including one key. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
