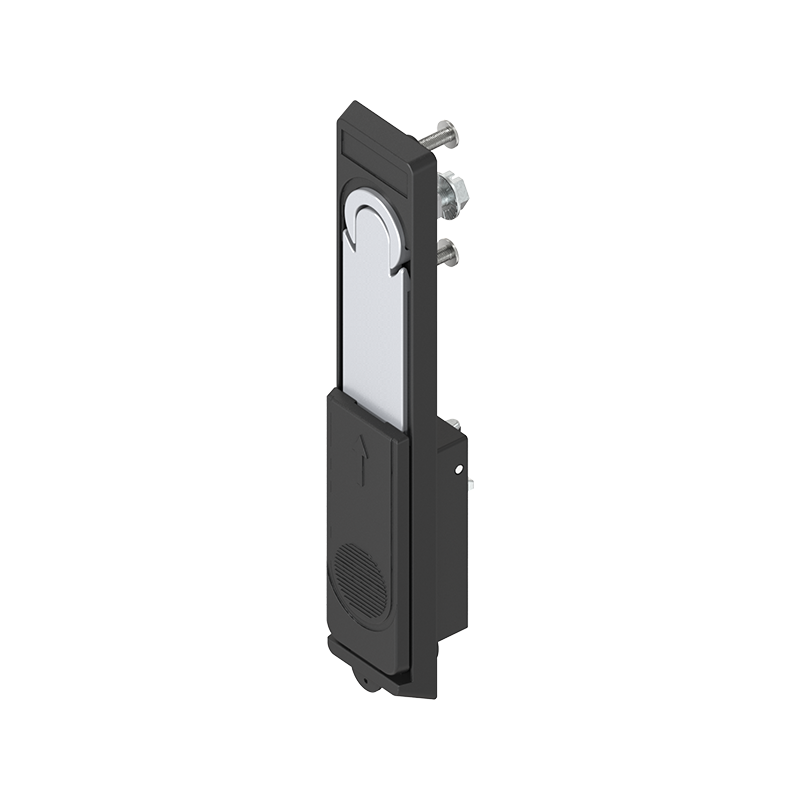

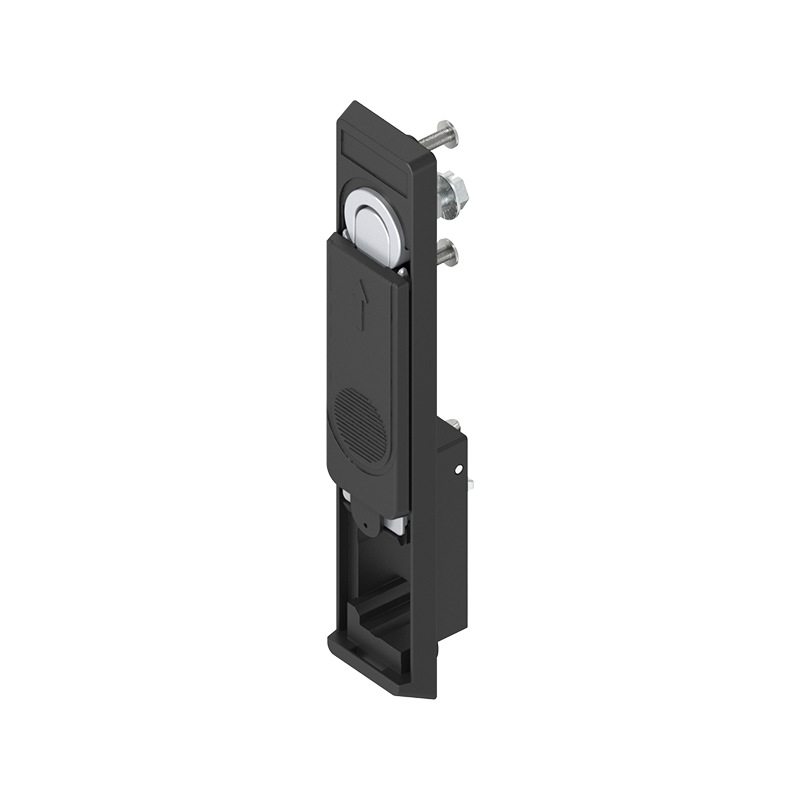

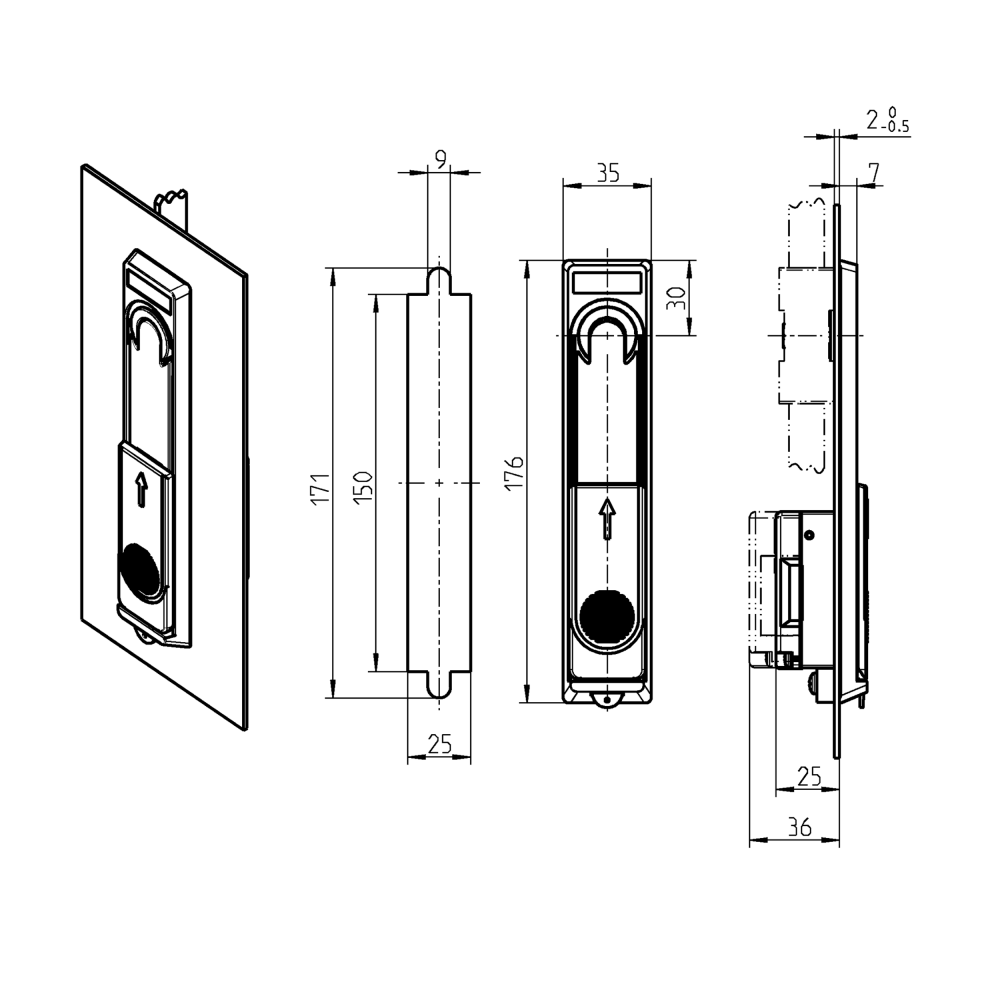

Swinghandle, glass fiber reinforced polyamide, locking set, L=176, B=35, H=7, Plate thickness=1,5-2
MT105038
Swinghandle manufatured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Materials are a combination of glass fiber reinforced polyamide and chrome plated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Spring-loaded
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
2100
Dust cap
Yes
Type
Locking set
IP Code
IP54
Diameter in mm
0
Hole diameter in mm
0
Height in mm
7
Length in mm
176
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Nettovægt
0.162
Varekode
8301600090
Lande-/områdekode for oprindelse
BA
Long description
Swinghandle manufatured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Materials are a combination of glass fiber reinforced polyamide and chrome plated die-cast zinc. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
