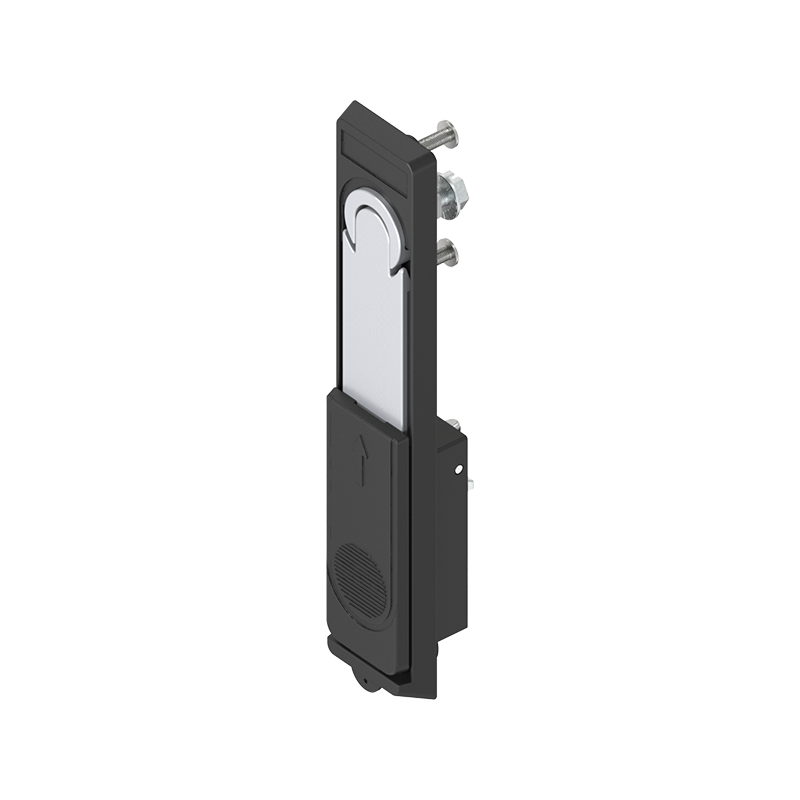

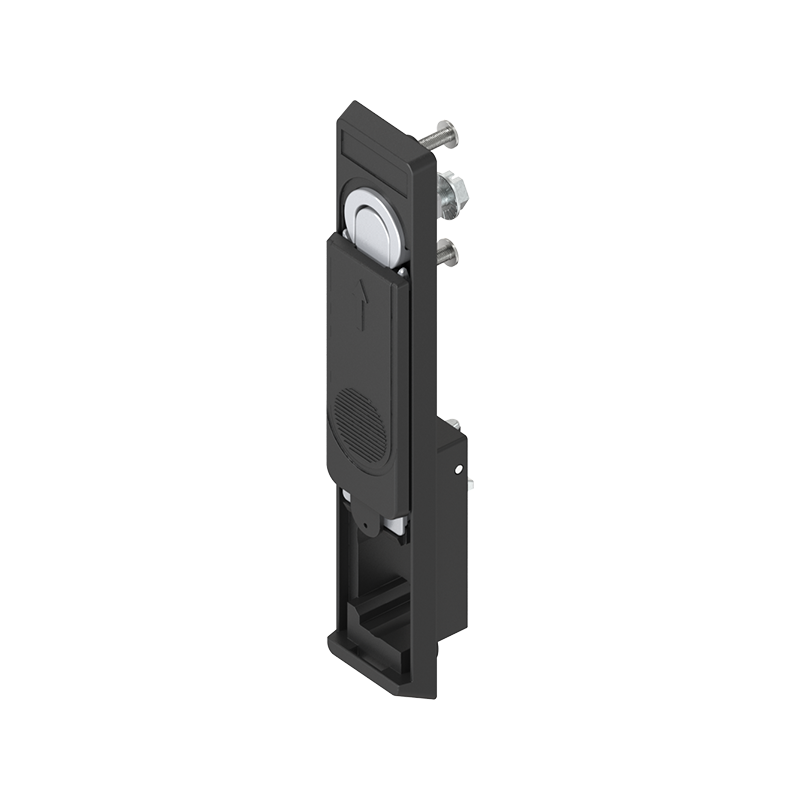

Swinghandle, glass fiber reinforced polyamide, locking set, L=176, B=35, H=7, Plate thickness=1,5-2
MT105047
Swinghandle manufatured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Materials are a combination of glass fiber reinforced polyamide and chrome plated die-cast zinc.
Material of the dust cap is black powder coated die-cast zink. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Fjedervirkning
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
2100
Dust cap
Yes
Type
Locking set
IP Code
IP54
Diameter in mm
0
Hole diameter in mm
0
Height in mm
7
Length i mm
176
Plate thickness, min.
1.5
Plate thickness, max.
2
Thickness in mm
0
Long description
Swinghandle manufatured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 176mm. The width is 35mm. The height is 7mm. The product can be mounted through plates with thickness of 1,5-2mm. Materials are a combination of glass fiber reinforced polyamide and chrome plated die-cast zinc.
Material of the dust cap is black powder coated die-cast zink. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
