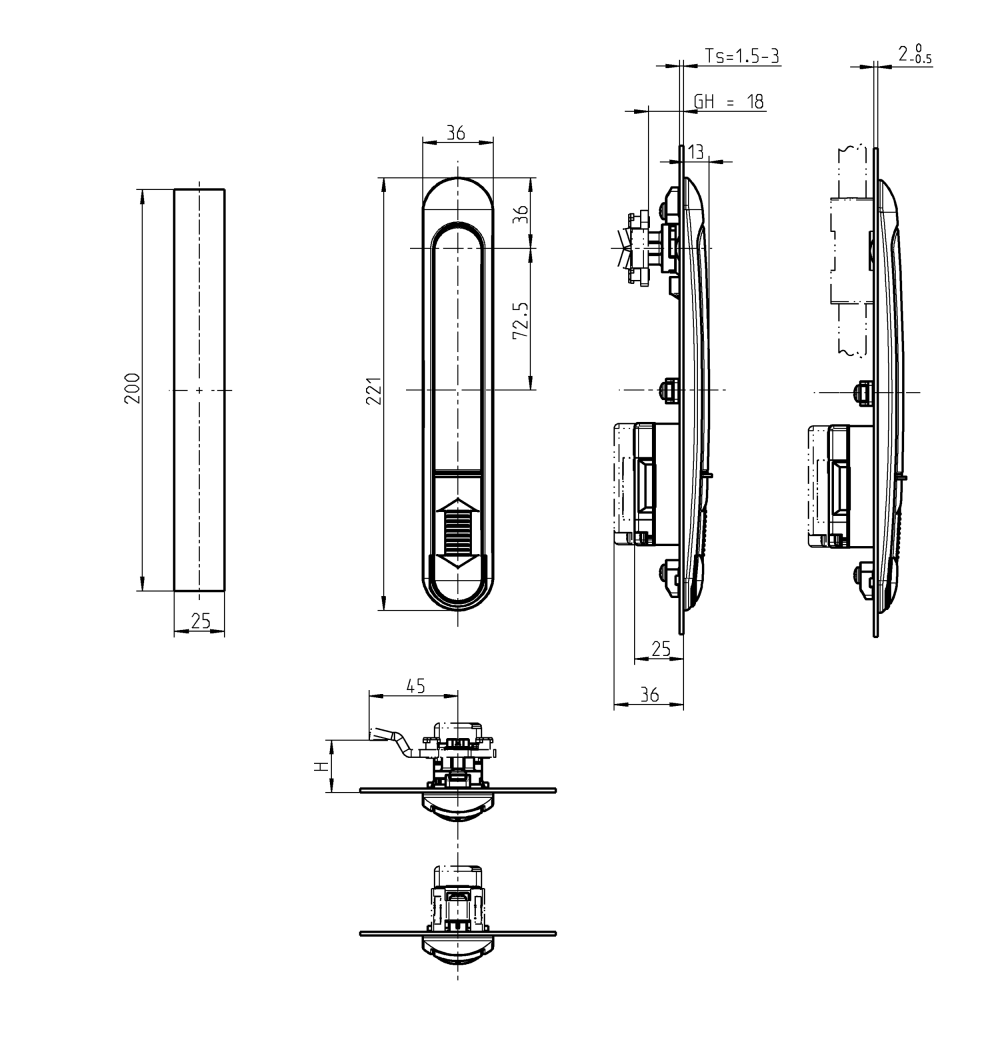

Swinghandle, glass fiber reinforced polyamide, locking set, L=221, B=36, H=13, Plate thickness=1,5-2
MT104196

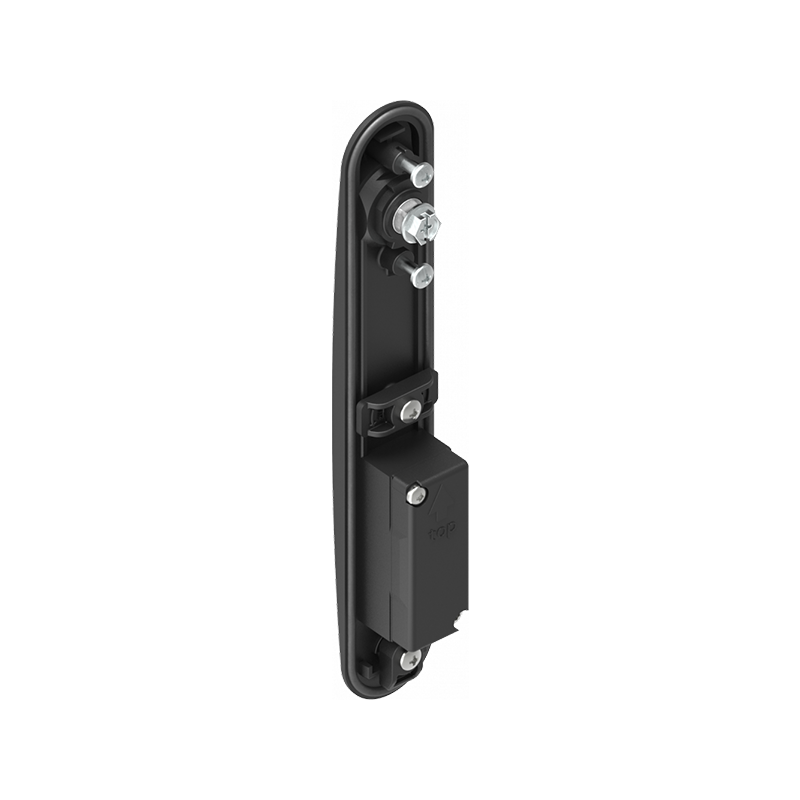

Swinghandle manufactured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 221mm. The width is 36mm. The height is 13mm. The product can be mounted through plates with thickness of 1,5-2mm. For use with rod control. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Axis diameter in mm
0
Spring-loaded
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1185
Dust cap
Yes
Type
Locking set
IP Code
IP54
Diameter in mm
0
Hole diameter in mm
0
Height in mm
13
Length in mm
221
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Long description
Swinghandle manufactured in glass fiber reinforced polyamide and of the type locking set. The product has a length of 221mm. The width is 36mm. The height is 13mm. The product can be mounted through plates with thickness of 1,5-2mm. For use with rod control. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
