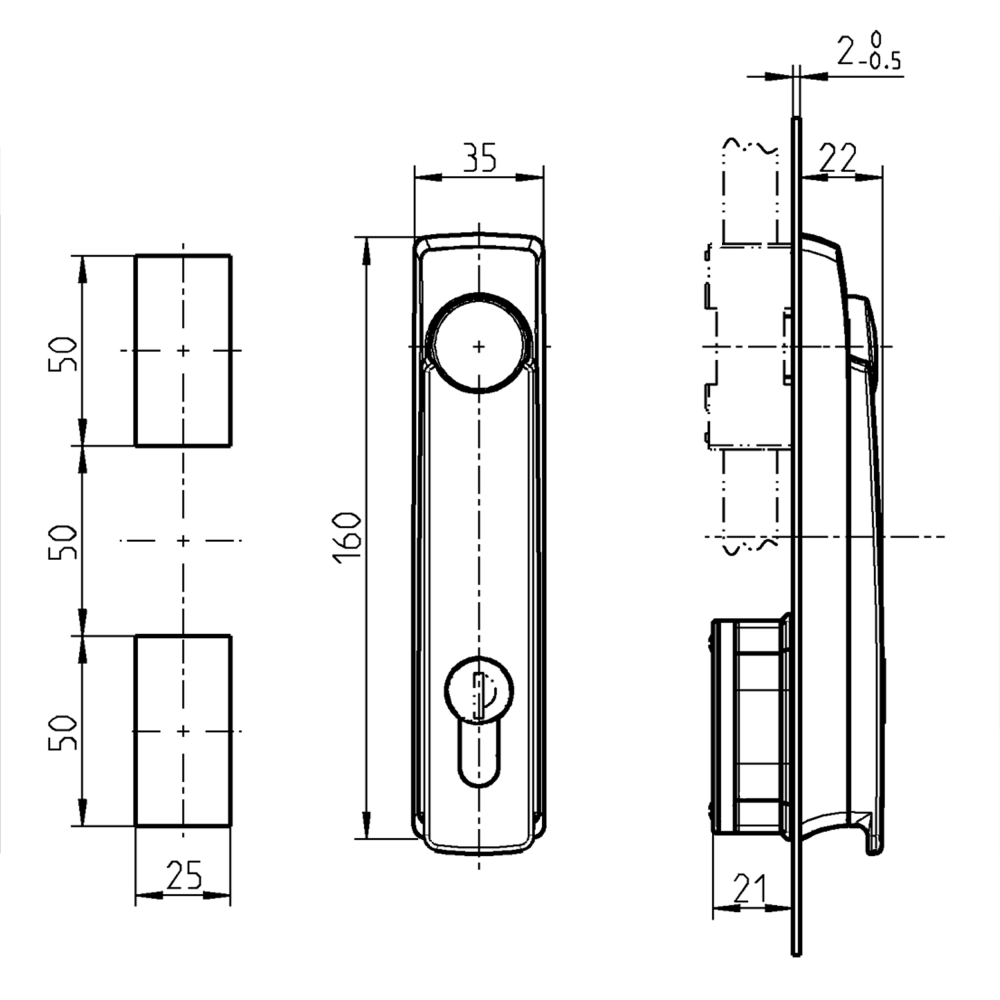

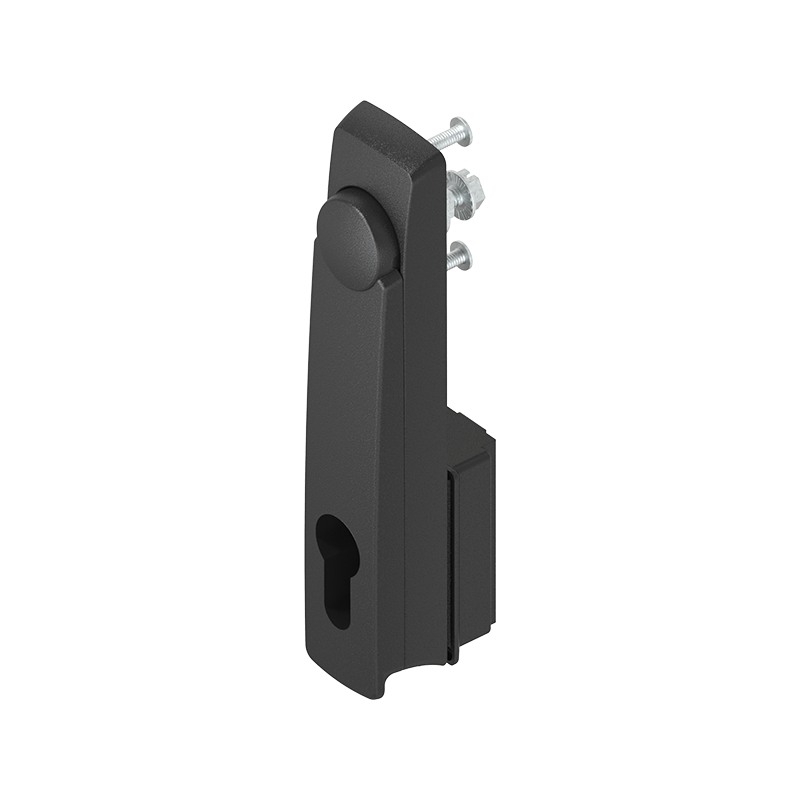

    Swinghandle, glass fiber reinforced polyamide, profile half cylinder 40mm, L=160, B=35, H=22, Plate thickness=1,5-2

    MT104327

    Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 35mm. The height is 22mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.

    A-measure
    30
    Spring-loaded
    Yes
    Components
    Swinghandle
    Material type
    Glass fiber reinforced polyamide
    Sealing
    Foamed
    Series
    1225
    Dust cap
    No
    Type
    Profile half cylinder 40mm
    IP Code
    IP65
    Diameter in mm
    0
    Hole diameter in mm
    0
    Height in mm
    22
    Length in mm
    160
    Plate thickness min.
    1.5
    Plate thickness max.
    2
    Thickness in mm
    0
    Long description

    Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 35mm. The height is 22mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.

    Product data

    or create an account to view prices, download datasheets and CAD files *

    Create account

    *not available on all products
