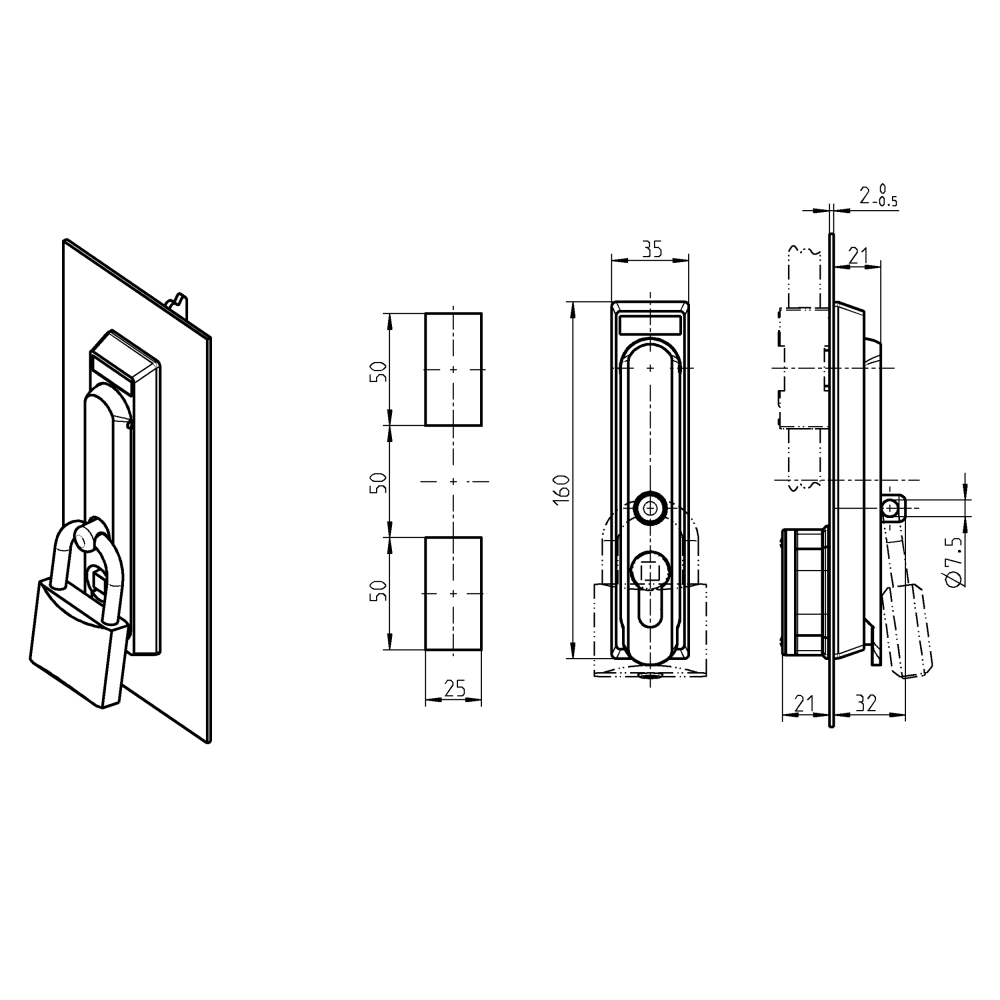

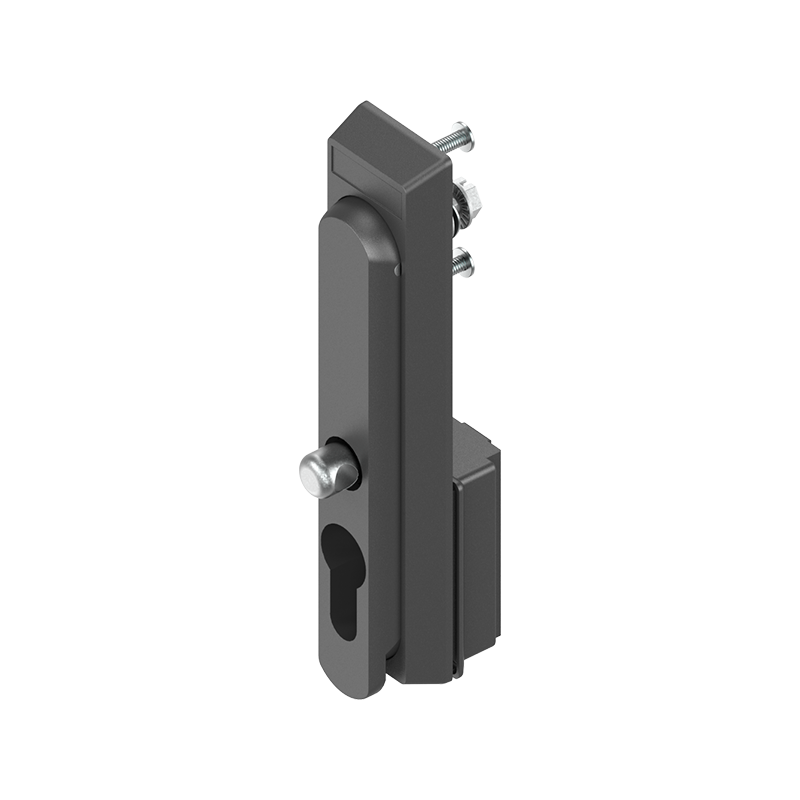

Swinghandle, glass fiber reinforced polyamide, profile half cylinder 40mm, L=160, B=35, H=32, Plate thickness=1,5-2
MT103612
Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 35mm. The height is 32mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
30
Spring-loaded
Yes
Padlockable
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1125
Dust cap
No
Type
Profile half cylinder 40mm
IP Code
IP65
Diameter in mm
0
Hole diameter in mm
0
Height in mm
32
Length in mm
160
Plate thickness min.
1.5
Plate thickness max.
2
Thickness in mm
0
Long description
Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 160mm. The width is 35mm. The height is 32mm. The product can be mounted through plates with thickness of 1,5-2mm. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Product data
