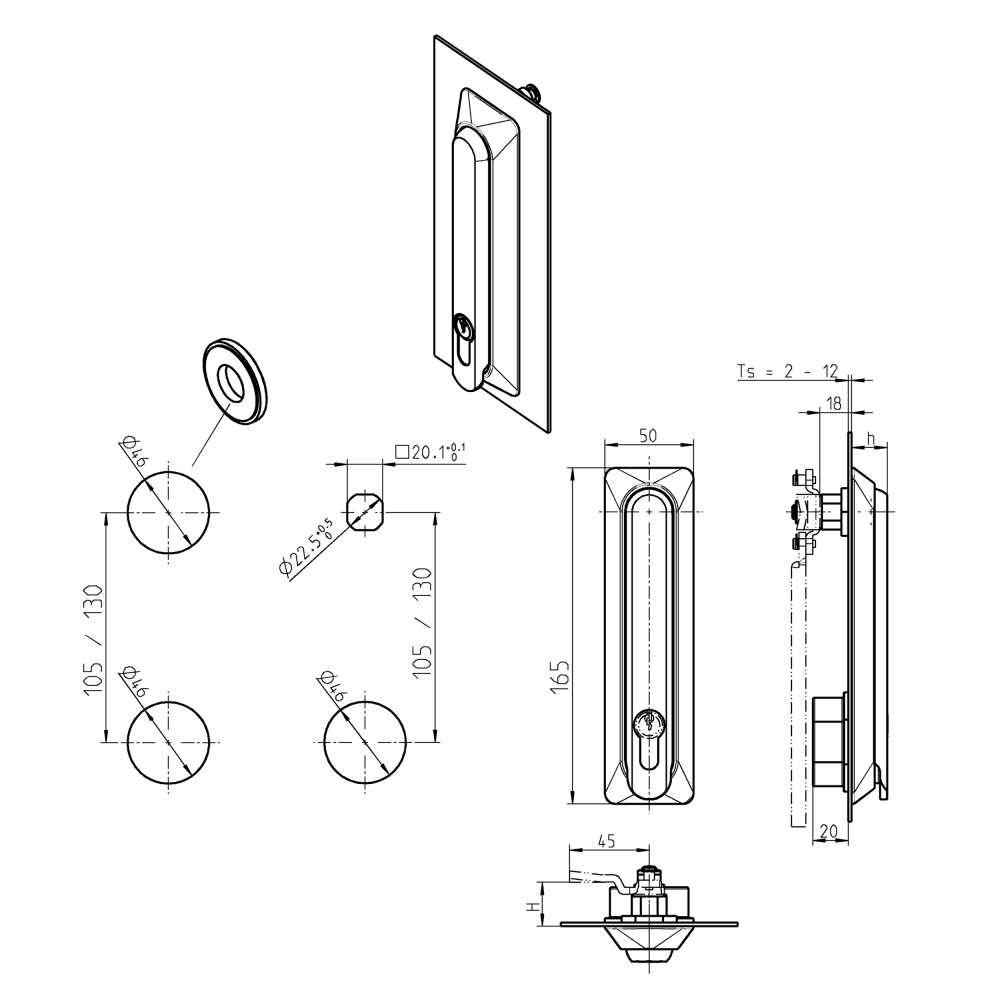

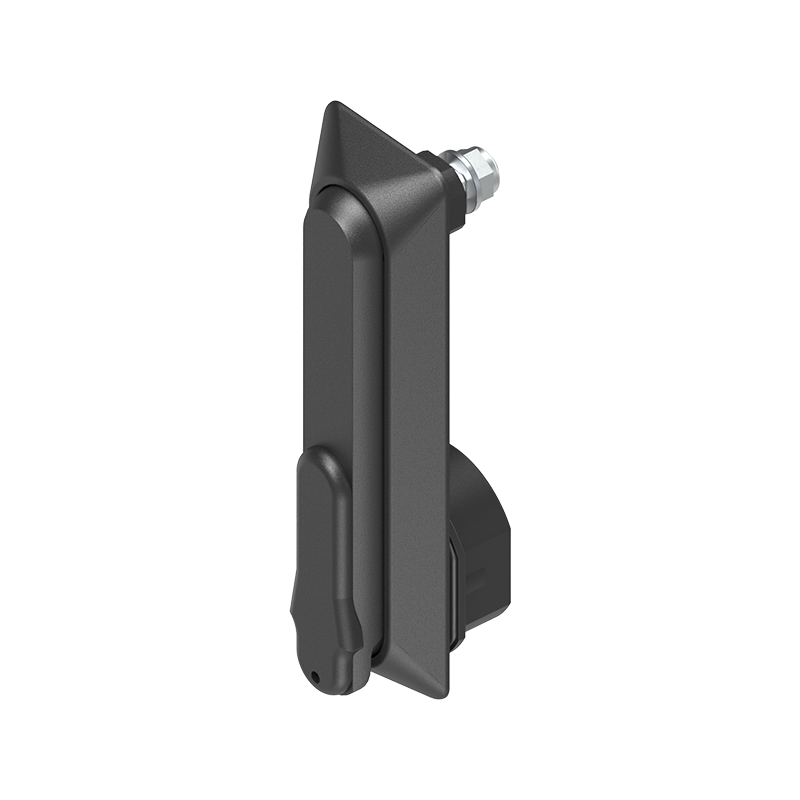

Swinghandle, glass fiber reinforced polyamide, profile half cylinder 40mm, L=165, B=50, H=20, Plate thickness=2-12
MT102903
Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 165mm. The width is 50mm. The height is 20mm. The product can be mounted through plates with thickness of 2-12mm. When using the adapter ring the max. door gauge (Ts) will be 6 mm.
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately.
Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-mål
30
Fjedervirkning
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1107
Dust cap
Yes
Type
Profile half cylinder 40mm
IP Code
IP65
Diameter in mm
0
Hole diameter in mm
0
Height in mm
20
Length i mm
165
Plate thickness, min.
2
Plate thickness, max.
12
Thickness in mm
0
Long description
Swinghandle manufatured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 165mm. The width is 50mm. The height is 20mm. The product can be mounted through plates with thickness of 2-12mm. When using the adapter ring the max. door gauge (Ts) will be 6 mm.
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately.
Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
