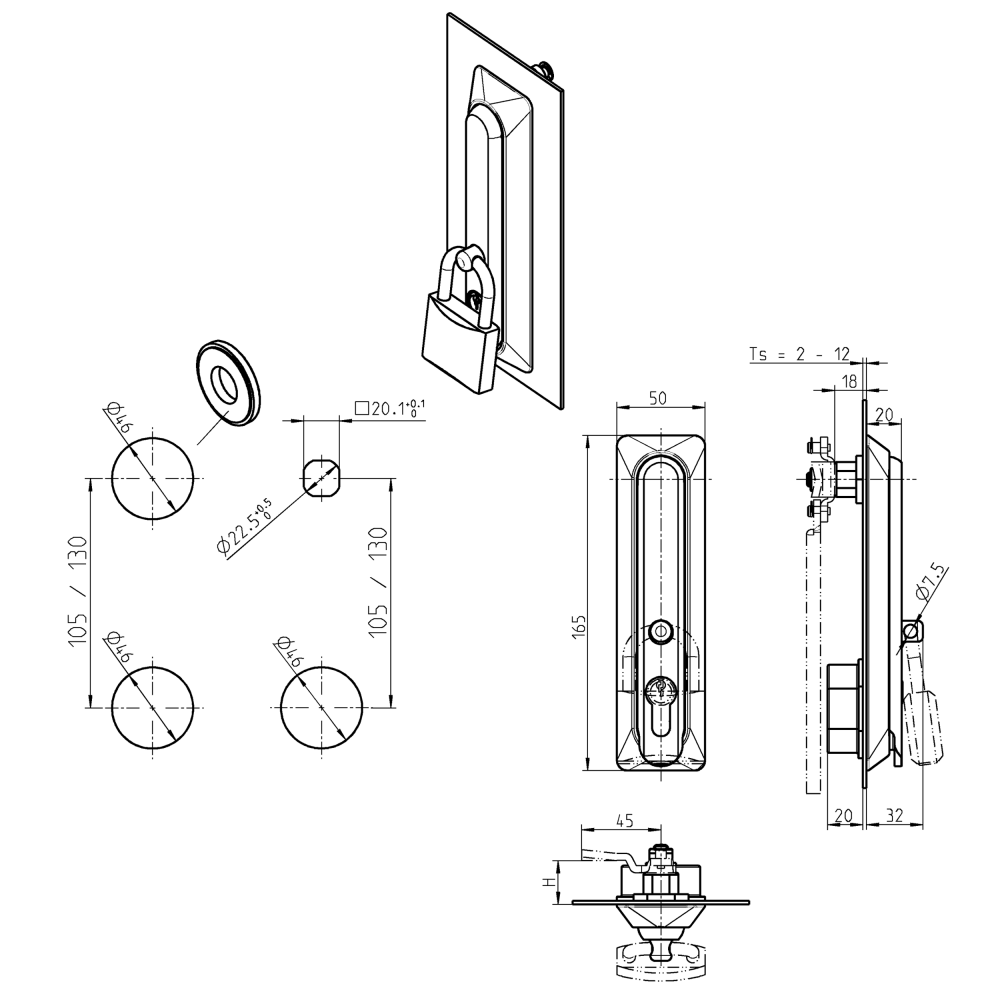

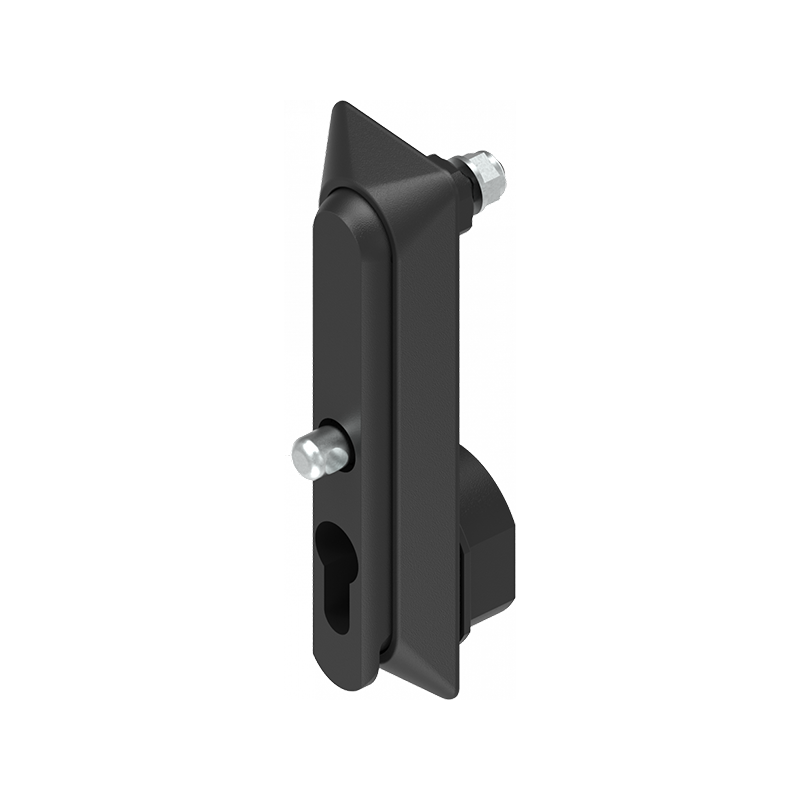

Swinghandle, glass fiber reinforced polyamide, profile half cylinder 40mm, L=165, B=50, H=32, Plate thickness=2-12
MT102906
Swinghandle manufactured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 165mm. The width is 50mm. The height is 32mm. The product can be mounted through plates with thickness of 2-12mm. When using the adapter ring the max. door gauge (Ts) will be 6 mm. When using door gauge (Ts) > 4 mm standard round rods cannot be used. Order screw set 1107-U170 for Ts = 4 - 12 mm separately. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
A-measure
30
Axis diameter in mm
0
Spring-loaded
Yes
Padlockable
Yes
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1107
Dust cap
No
Type
Profile half cylinder 40mm
IP Code
IP65
Height in mm
32
Length in mm
165
Plate thickness min.
2
Plate thickness max.
12
Long description
Swinghandle manufactured in glass fiber reinforced polyamide and of the type profile half cylinder 40mm. The product has a length of 165mm. The width is 50mm. The height is 32mm. The product can be mounted through plates with thickness of 2-12mm. When using the adapter ring the max. door gauge (Ts) will be 6 mm. When using door gauge (Ts) > 4 mm standard round rods cannot be used. Order screw set 1107-U170 for Ts = 4 - 12 mm separately. Suitable for use with cams without stopper. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
