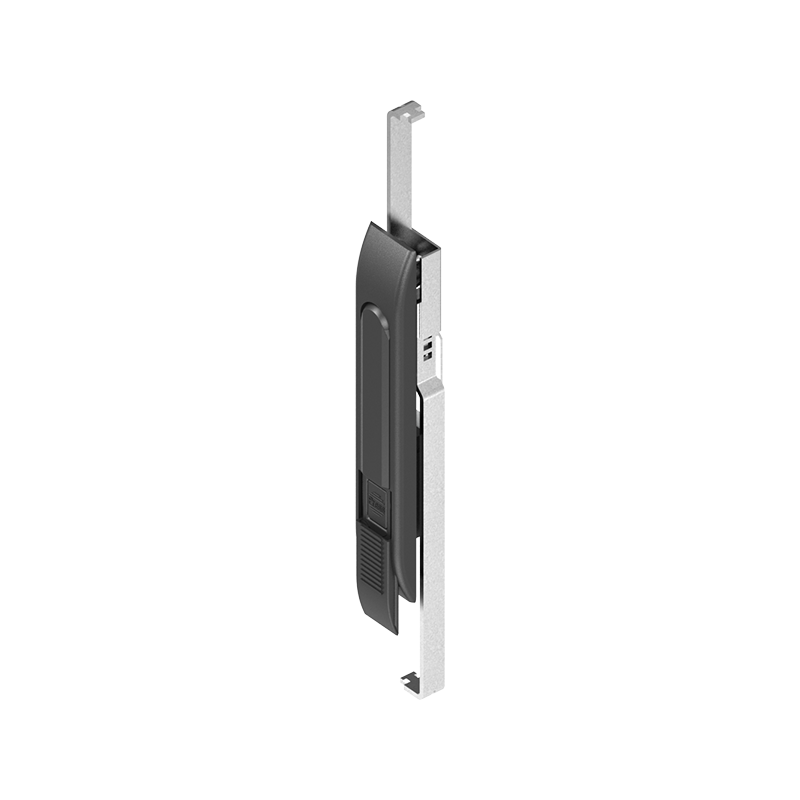

Swinghandle, glass fiber reinforced polyamide, push button, L=215,5, B=36, H=14, Plate thickness=1,5-2,5
MT104173
Swinghandle manufatured in polyamide and of the type push button. The product has a length of 215,5mm. The width is 36mm. The height is 14mm. The product can be mounted through plates with thickness of 1,5-2,5mm. Materials are a combination of glass fiber reinforced polyamide and black powder coated die-cast zinc.
With built-in rod control and flat rods.
Stroke is 23,5mm for 135° turn.
Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
Fjedervirkning
Yes
Shape
T-shape
Components
Swinghandle
Material type
Glass fiber reinforced polyamide
Sealing
Foamed
Series
1180
Dust cap
Yes
Type
Push button
IP Code
IP54
Vandring
16 and 23,5
Diameter in mm
0
Hole diameter in mm
0
Height in mm
14
Length i mm
215.5
Plate thickness, min.
1.5
Plate thickness, max.
2.5
Thickness in mm
0
Long description
Swinghandle manufatured in glass fiber reinforced polyamide and of the type push button. The product has a length of 215,5mm. The width is 36mm. The height is 14mm. The product can be mounted through plates with thickness of 1,5-2,5mm. Materials are a combination of glass fiber reinforced polyamide and black powder coated die-cast zinc.
With built-in rod control and flat rods.
Stroke is 23,5mm for 135° turn.
Stroke is 16mm for 90° turn. We offer a wide range of assesories to locks, so if you cannot find the right product, then please contact us.
