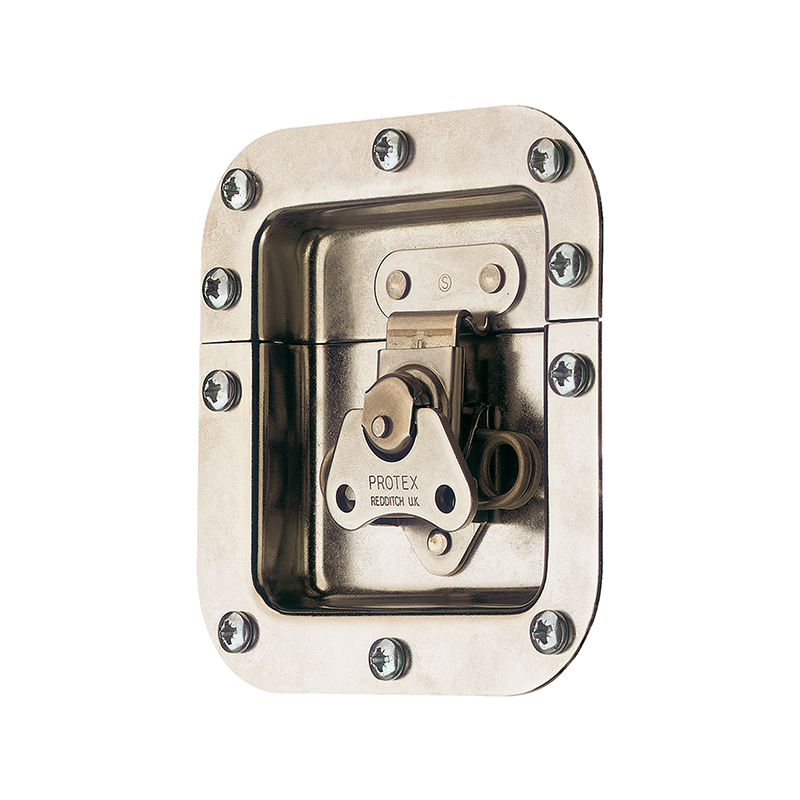

Rotary turn latch, stainless steel, L=104,8, B=101,6, H=16,8, uden hængelås
MT107577

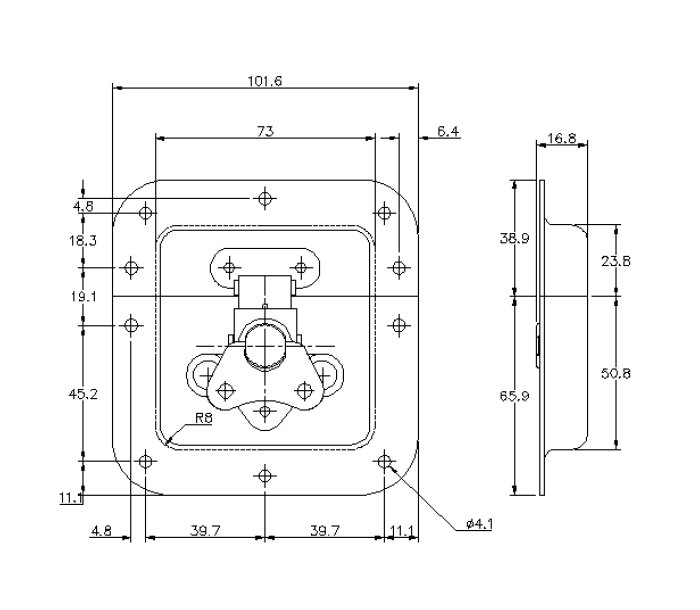

Rotary turn latch manufactured in stainless steel. The lenght is 104,8 mm, the width is 101,6 mm and the height is 16,8 mm. The latch is not adjustable and a padlock is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
Spring claw
No
Catch plate
Included
Padlockable
No
Adjustable
No
Material type
Stainless steel
Key lock
No
Undercentre
No
Series
062
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
Yes
Breakage load (Ultimate stress) in kg
170
Height in mm
16.8
Length in mm
104.8
Long description
Rotary turn latch manufactured in stainless steel. The lenght is 104,8 mm, the width is 101,6 mm and the height is 16,8 mm. The latch is not adjustable and a padlock is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
