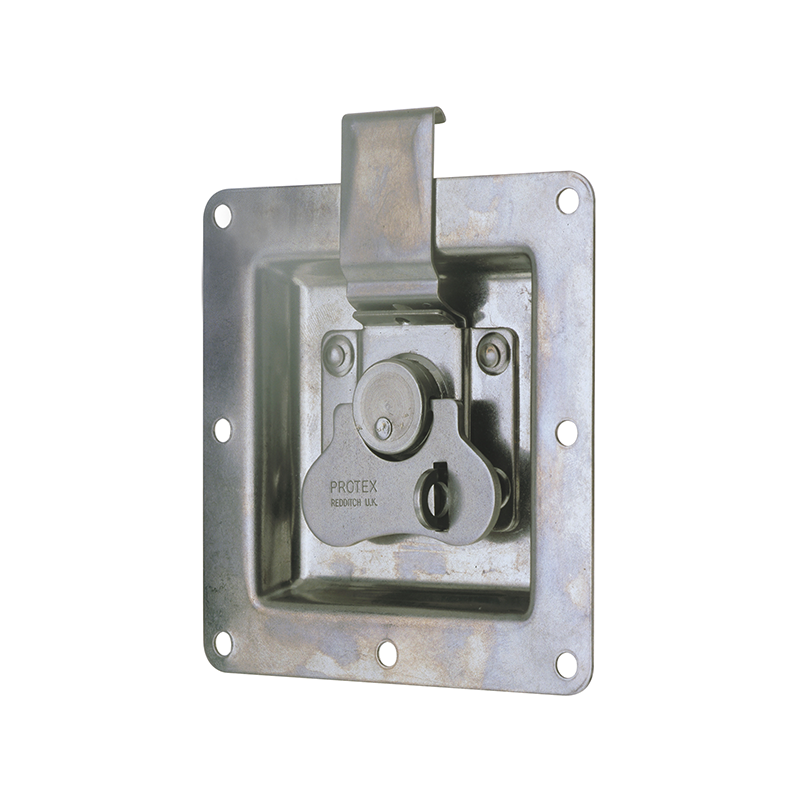

Rotary turn latch, steel, L=122,3, B=108, H=20, med hængelås
MT107562

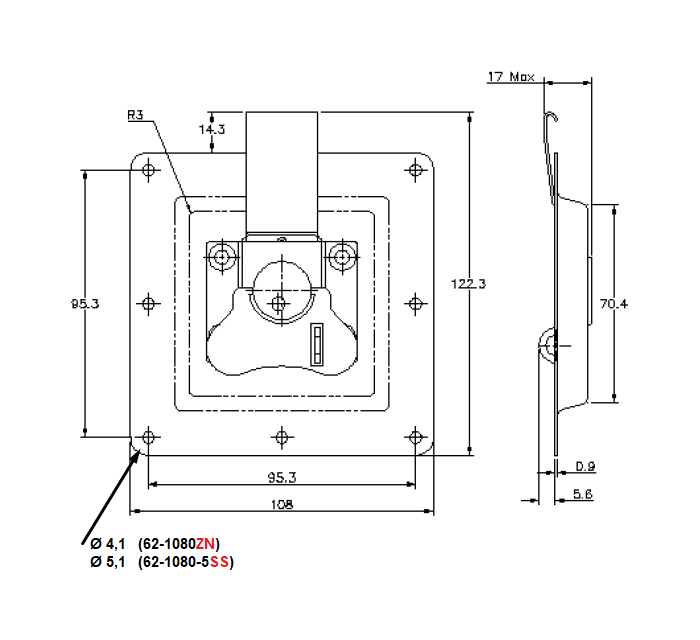

Rotary turn latch manufactured in steel. The lenght is 122,3 mm, the width is 108 mm and the height is 20 mm. The latch is not adjustable and a padlock is not included. Note that a catch plate is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
Spring claw
No
Catch plate
Not included
Padlockable
Yes
Adjustable
No
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Series
062
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
Yes
Breakage load (Ultimate stress) in kg
100
Height in mm
20
Length in mm
122.3
Long description
Rotary turn latch manufactured in steel. The lenght is 122,3 mm, the width is 108 mm and the height is 20 mm. The latch is not adjustable and a padlock is not included. Note that a catch plate is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
