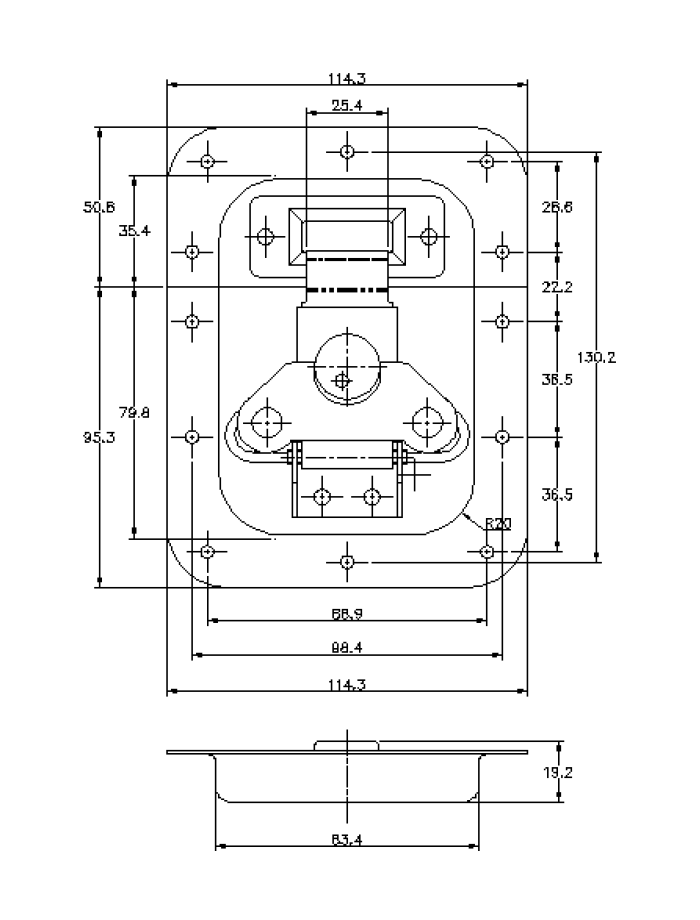

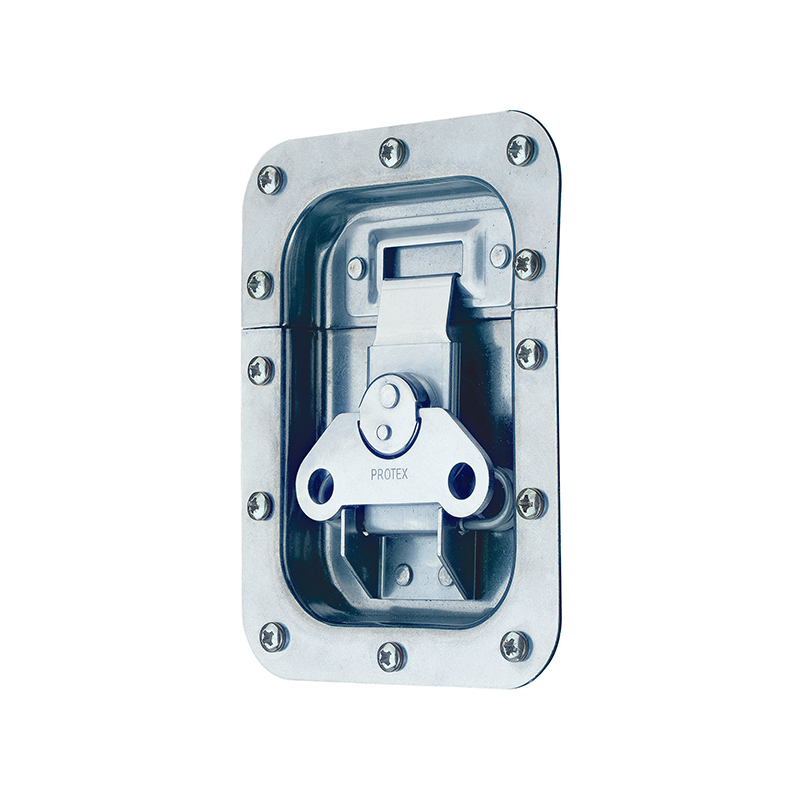

Rotary turn latch, steel, L=146,1, B=114,3, H=19,2, uden hængelås
MT107576
Rotary turn latch manufactured in steel. The lenght is 146,1 mm, the width is 114,3 mm and the height is 19,2 mm. The latch is not adjustable and a padlock is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
Spring claw
No
Catch plate
Included
Padlockable
No
Adjustable
No
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Series
062
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
Yes
Breakage load (Ultimate stress) in kg
160
Height in mm
19.2
Length in mm
146.1
Long description
Rotary turn latch manufactured in steel. The lenght is 146,1 mm, the width is 114,3 mm and the height is 19,2 mm. The latch is not adjustable and a padlock is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
