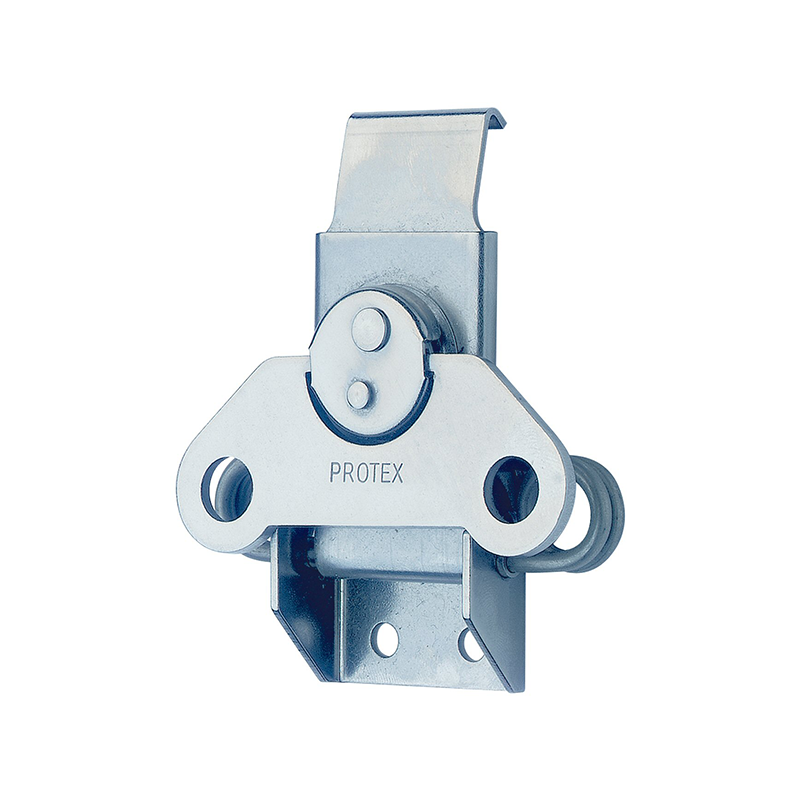

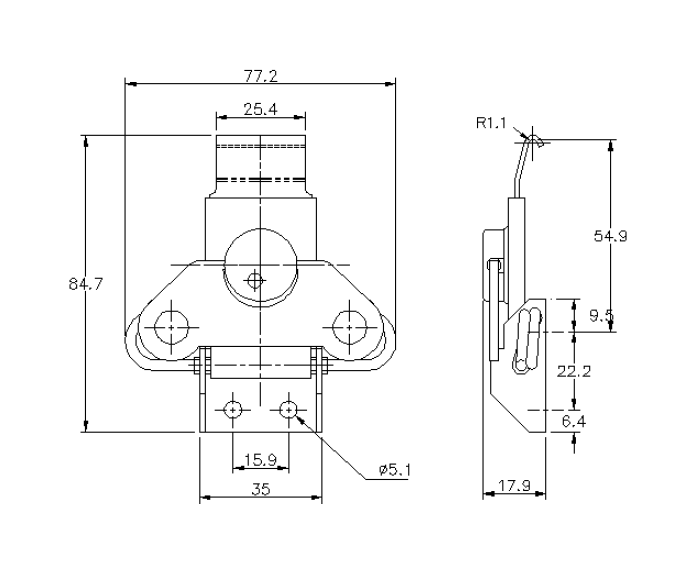

Rotary turn latch, steel, L=84,7, B=77,2, H=17,9, uden hængelås
MT107652
Rotary turn latch manufactured in steel. The lenght is 84,7 mm, the width is 77,2 mm and the height is 17,9 mm. The latch is not adjustable and a padlock is not included. Note that a catch plate is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
Spring claw
No
Catch plate
Not included
Padlockable
No
Adjustable
No
Material type
Steel
Key lock
No
Undercentre
No
Surface finish
Electro zinc plated
Safety lock
No
Multi-directional tension
No
Maximum work load (Tensile strenght)
50% af brudstyrken
Recessed
No
Breakage load (Ultimate stress) in kg
80
Height in mm
17.9
Length in mm
84.7
Long description
Rotary turn latch manufactured in steel. The lenght is 84,7 mm, the width is 77,2 mm and the height is 17,9 mm. The latch is not adjustable and a padlock is not included. Note that a catch plate is not included. We offer many types of locks, so please contact us if you cannot find what you are looking for.
