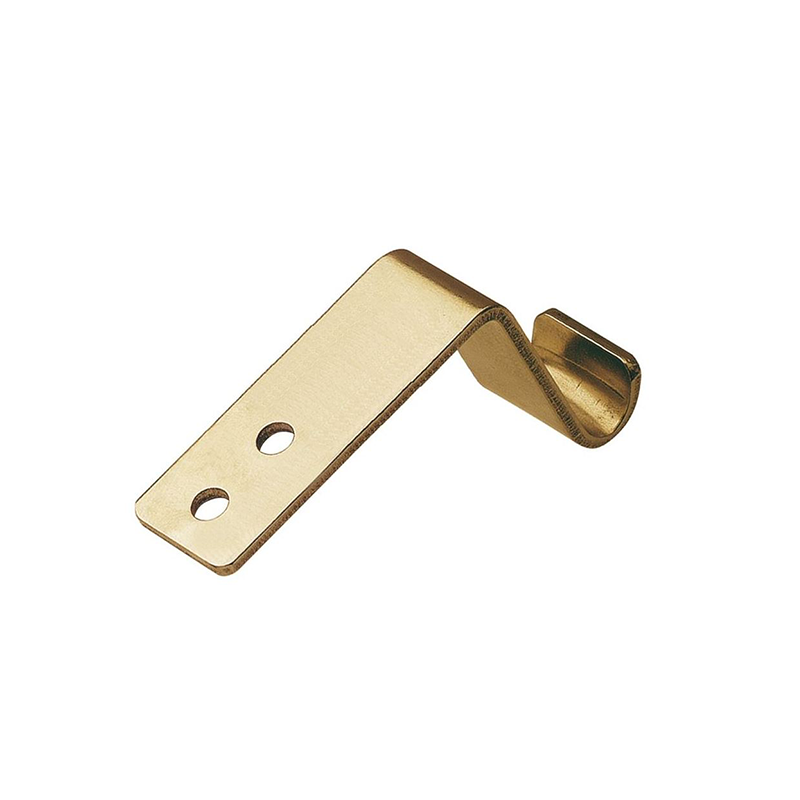

Catch plate, electro zinc plated and yellow chromated steel, angle mounting, L=39,7mm, B=16mm, H=34,4mm
MT100233

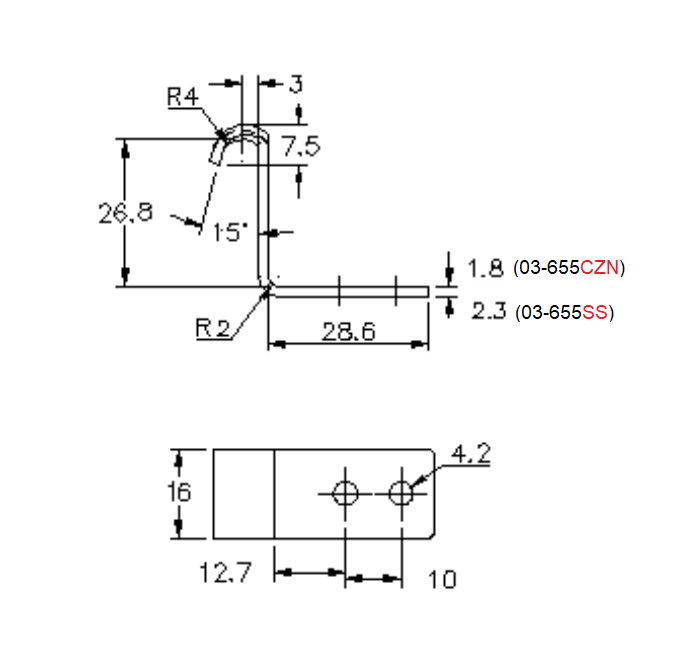

Catch plate manufactured in steel with an electro zinc plated and yellow chromated surface. The length is 39,7mm, the width is 16mm and the height is 34,4mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electro zinc plated and yellow chromated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
400
Hole diameter in mm
4.2
Height in mm
34.4
Length in mm
39.7
Long description
Catch plate manufactured in steel with an electro zinc plated and yellow chromated surface. The length is 39,7mm, the width is 16mm and the height is 34,4mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
