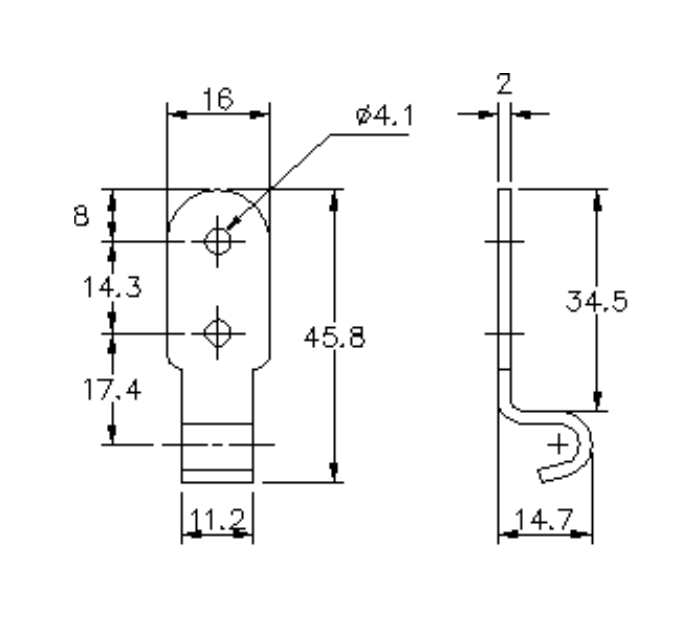

Catch plate, electro zinc plated and yellow chromated steel, angle mounting, L=45,8mm, B=16mm, H=14,7mm
MT100223
Catch plate manufactured in steel with an electro zinc plated surface. The length is 45,8mm, the width is 16mm and the height is 14,7mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
350
Hole diameter in mm
4.1
Height in mm
14.7
Length in mm
45.8
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 45,8mm, the width is 16mm and the height is 14,7mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Product data
