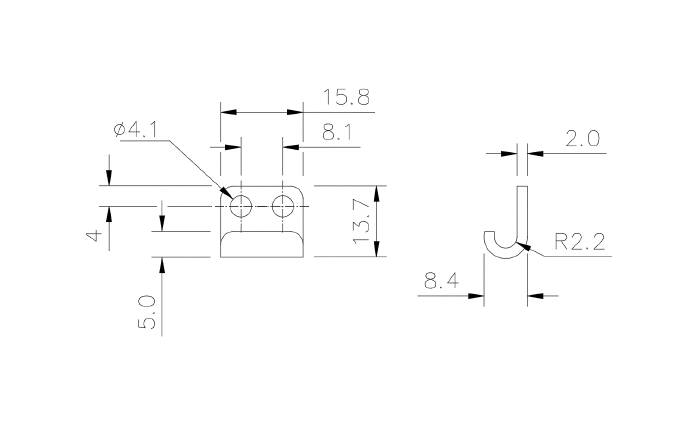

Catch plate, electro zinc plated and yellow chromated steel, flat mounting, L=13,7mm, B=15,8mm, H=8mm
MT100084
Catch plate manufactured in stainless steel with a yellow chromated surface. The length is 13,7mm, the width is 15,8mm and the height is 8,4mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material
AISI 430
Material type
Stainless steel
Mounting type
Flat mounting
Surface finish
Yellow chromated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
160
Hole diameter in mm
4.1
Height in mm
8.4
Length in mm
13.7
Long description
Catch plate manufactured in stainless steel with a yellow chromated surface. The length is 13,7mm, the width is 15,8mm and the height is 8,4mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
