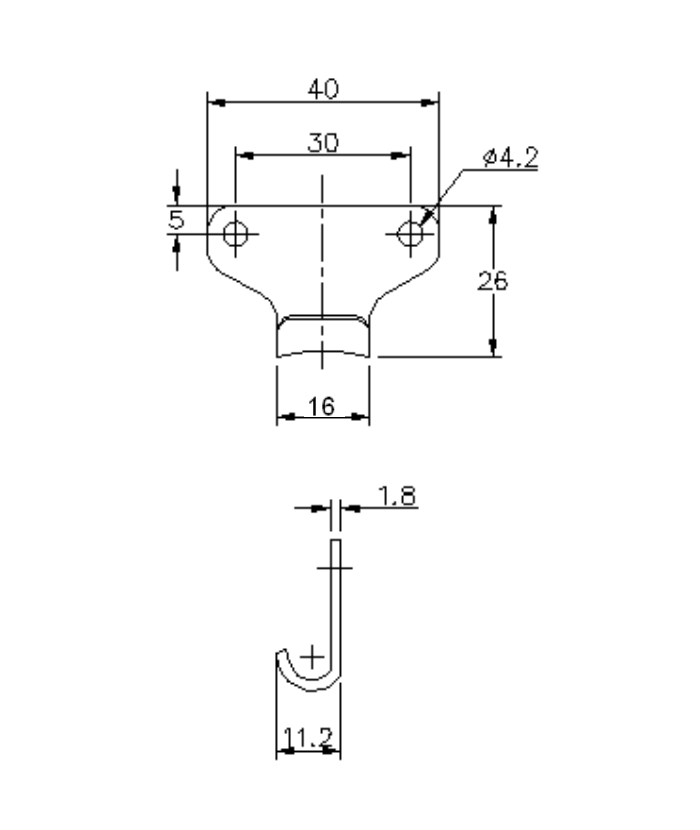

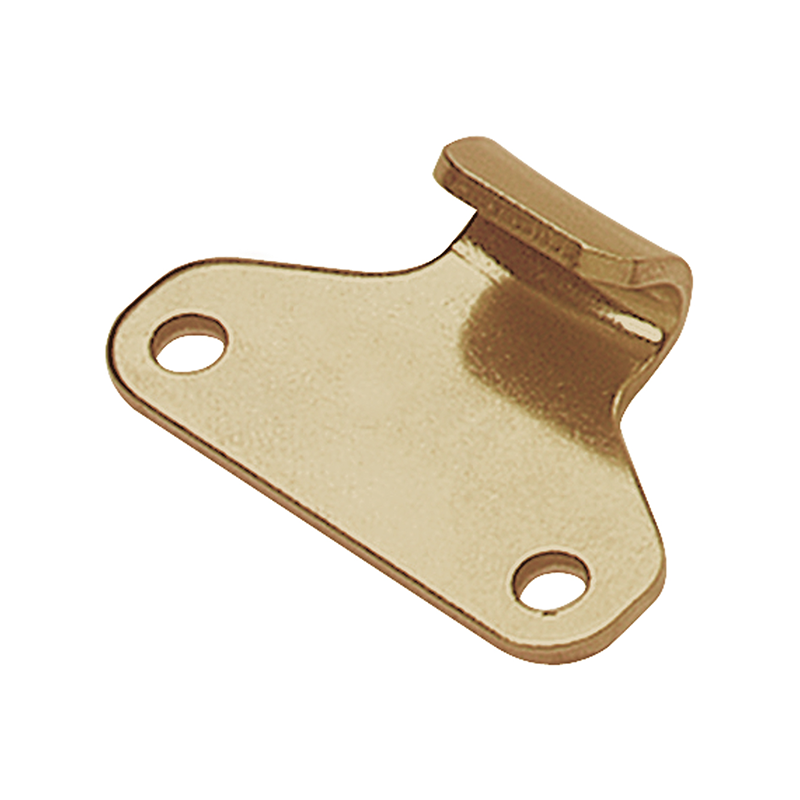

Catch plate, electro zinc plated and yellow chromated steel, flat mounting, L=26mm, B=40mm, H=11,2mm
MT100110
Catch plate manufactured in steel with an electro zinc plated and yellow chromated surface. The length is 26mm, the width is 40mm and the height is 11,2mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated and yellow chromated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
400
Hole diameter in mm
4.2
Height in mm
11.2
Length in mm
26
Long description
Catch plate manufactured in steel with an electro zinc plated and yellow chromated surface. The length is 26mm, the width is 40mm and the height is 11,2mm. The catch palte has a hole diameter of 4,2 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
