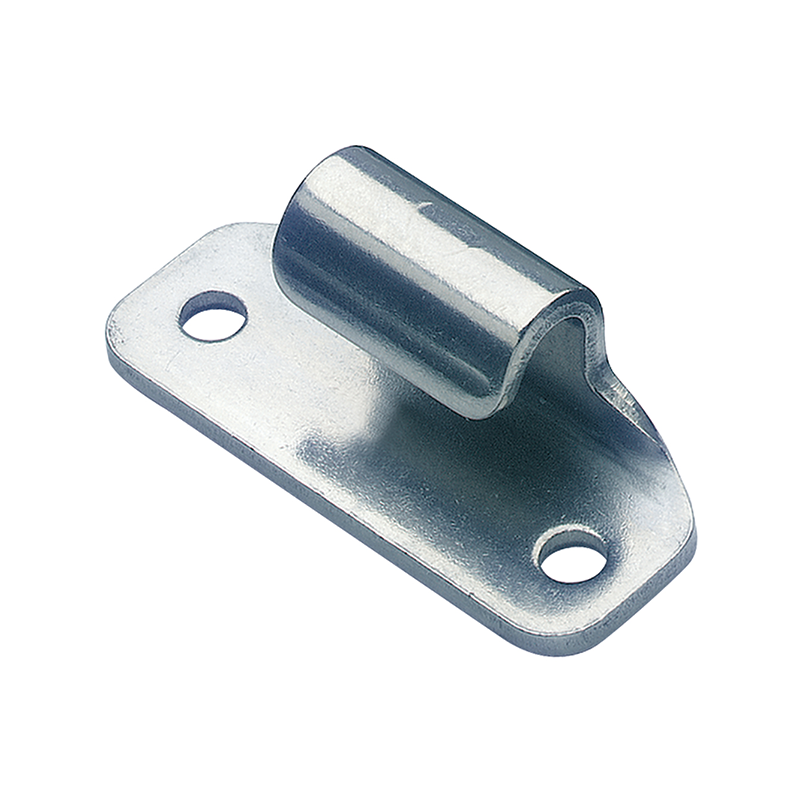

Catch plate, electro zinc plated steel, angle mounting, L=20mm, B=50,8mm, H=19mm
MT100065

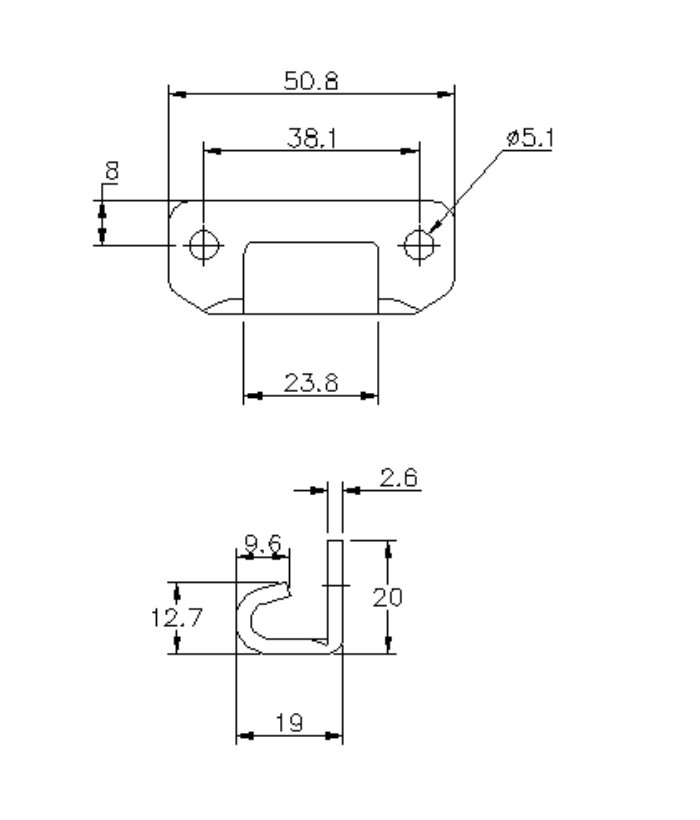

Catch plate manufactured in steel with an electro zinc plated surface. The length is 20mm, the width is 50,8mm and the height is 19mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
450
Hole diameter in mm
5.1
Height in mm
19
Length i mm
20
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 20mm, the width is 50,8mm and the height is 19mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
