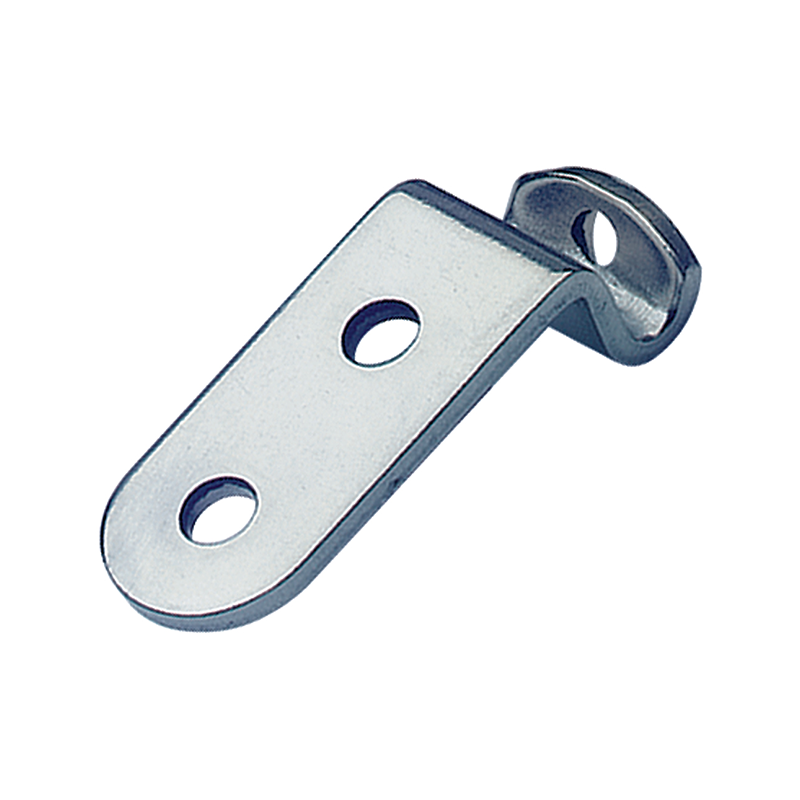

Catch plate, electro zinc plated steel, angle mounting, L=30,8mm, B=11,1mm, H=8,7mm
MT100219

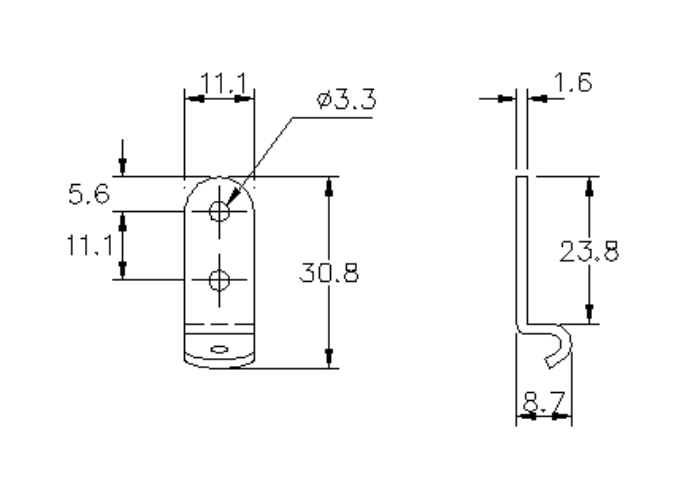

Catch plate manufactured in steel with an electro zinc plated surface. The length is 30,8mm, the width is 11,1mm and the height is 8,7mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
150
Hole diameter in mm
3.3
Height in mm
8.7
Length in mm
30.8
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 30,8mm, the width is 11,1mm and the height is 8,7mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
