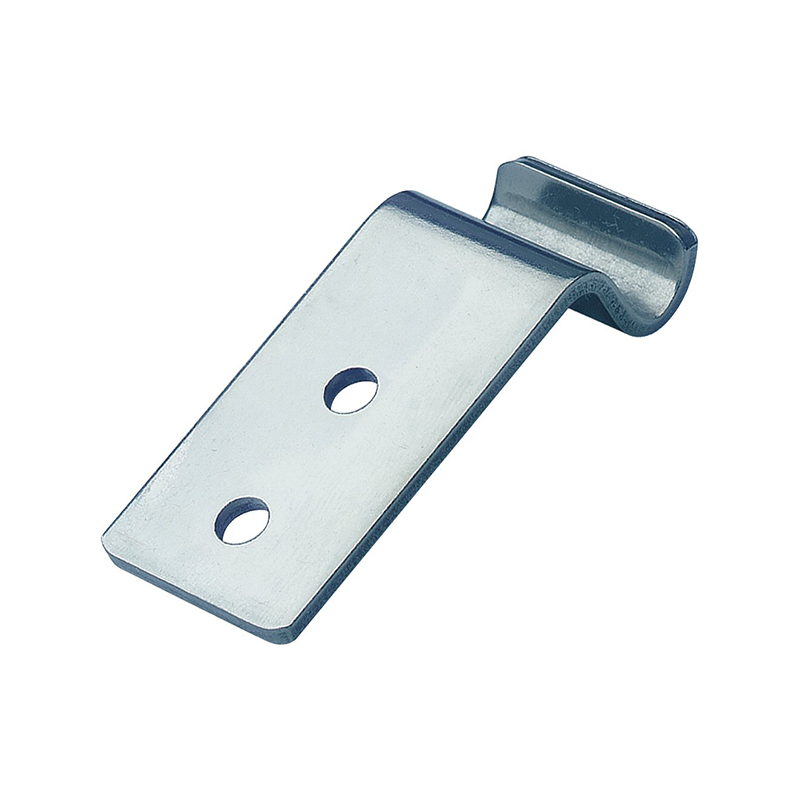

Catch plate, electro zinc plated steel, angle mounting, L=59,1mm, B=23,8mm, H=15,2mm
MT100207

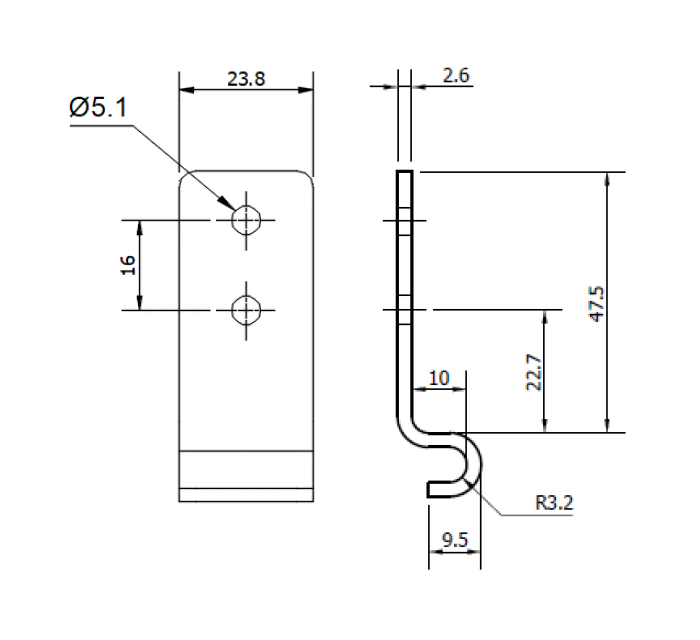

Catch plate manufactured in steel with an electro zinc plated surface. The length is 59,1mm, the width is 23,8mm and the height is 15,2mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Angle mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
400
Hole diameter in mm
5.1
Height in mm
15.2
Length i mm
59.1
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 59,1mm, the width is 23,8mm and the height is 15,2mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
