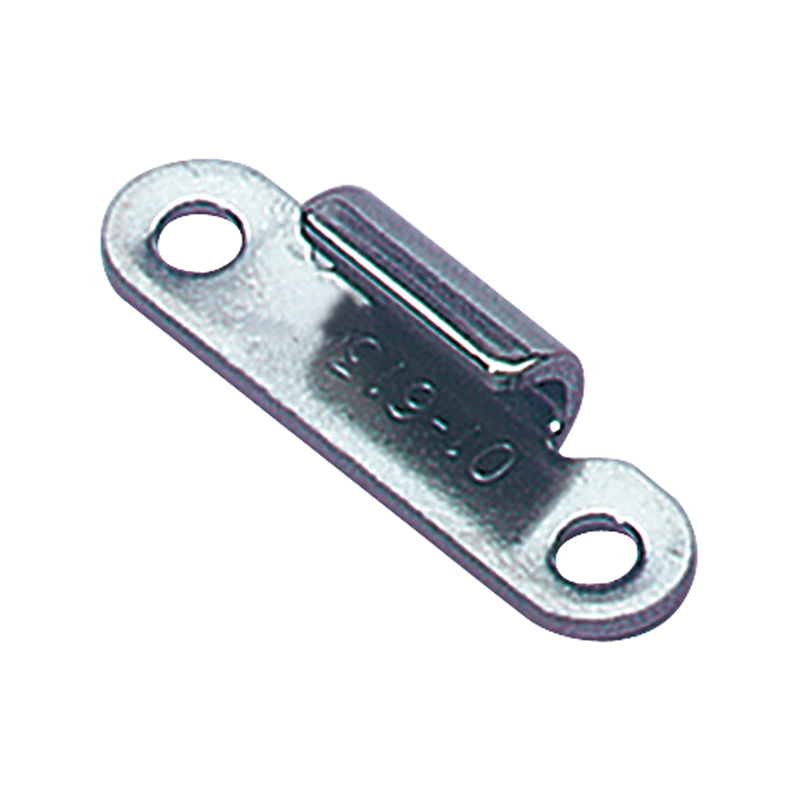

Catch plate, electro zinc plated steel, flat mounting, L=10,5mm, B=38,2mm, H=8mm
MT100105

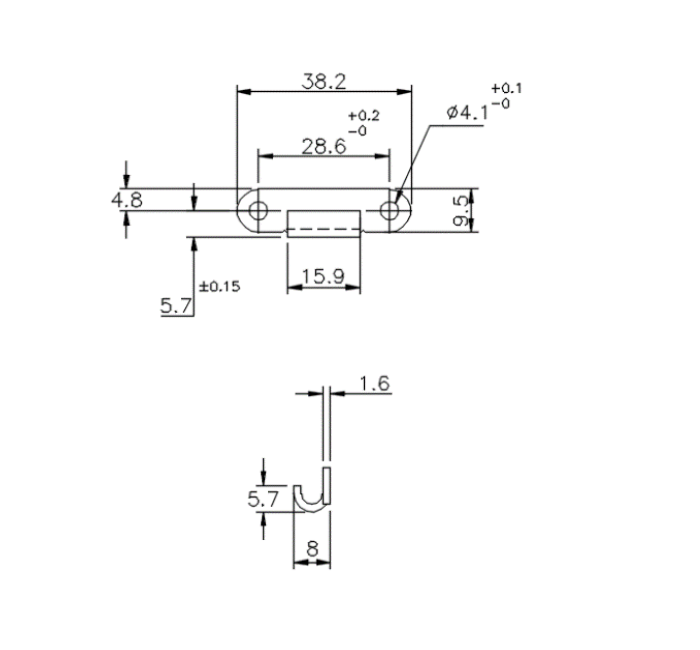

Catch plate manufactured in steel with an electro zinc plated surface. The length is 10,5mm, the width is 38,2mm and the height is 8mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
150
Hole diameter in mm
4.1
Height in mm
8
Length in mm
10.5
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 10,5mm, the width is 38,2mm and the height is 8mm. The catch palte has a hole diameter of 4,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
