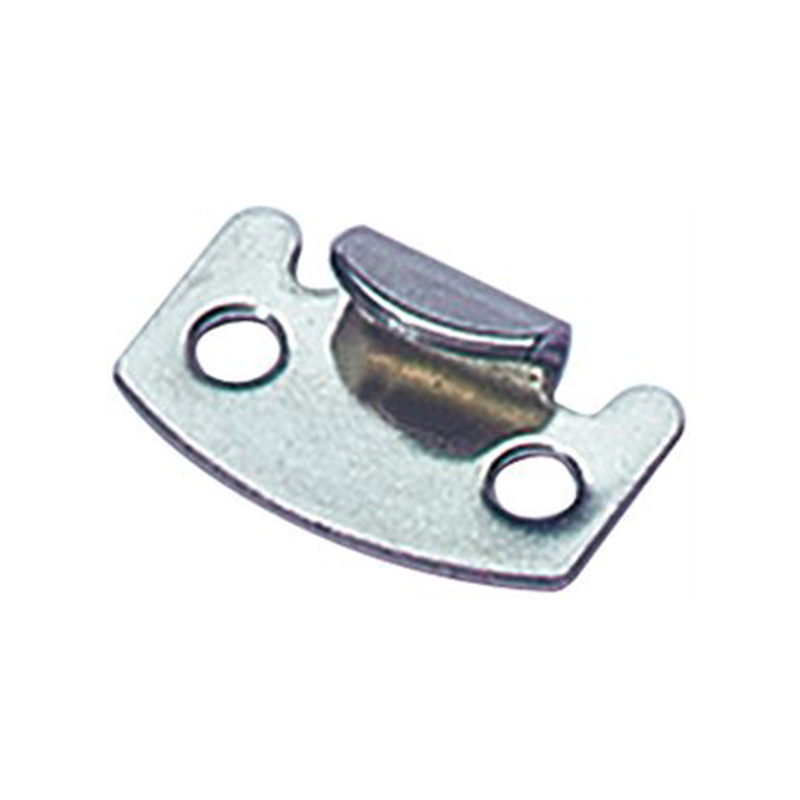

Catch plate, electro zinc plated steel, flat mounting, L=13mm, B=20,6mm, H=6,1mm
MT100094

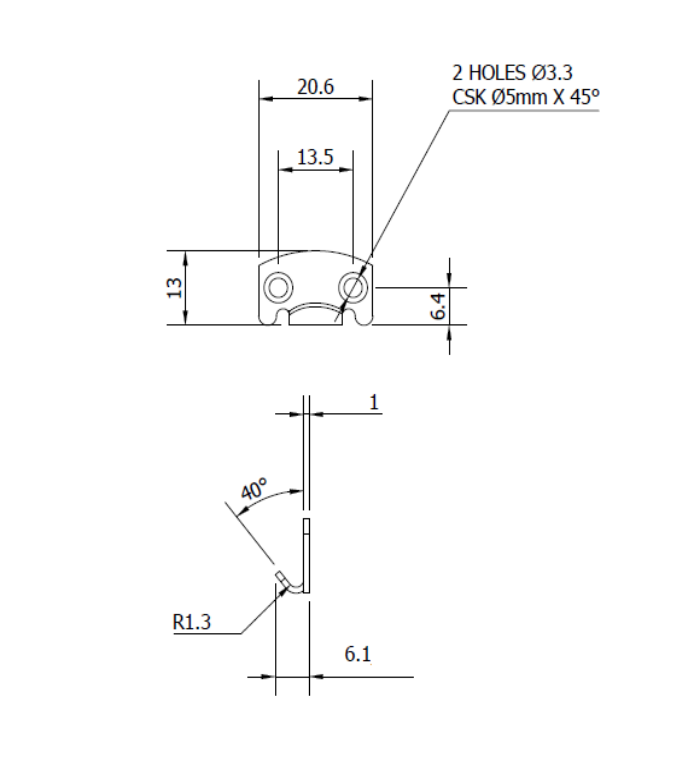

Catch plate manufactured in steel with an electro zinc plated surface. The length is 13mm, the width is 20,6mm and the height is 6,1mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
39
Hole diameter in mm
3.3
Height in mm
6.1
Length in mm
13
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 13mm, the width is 20,6mm and the height is 6,1mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
