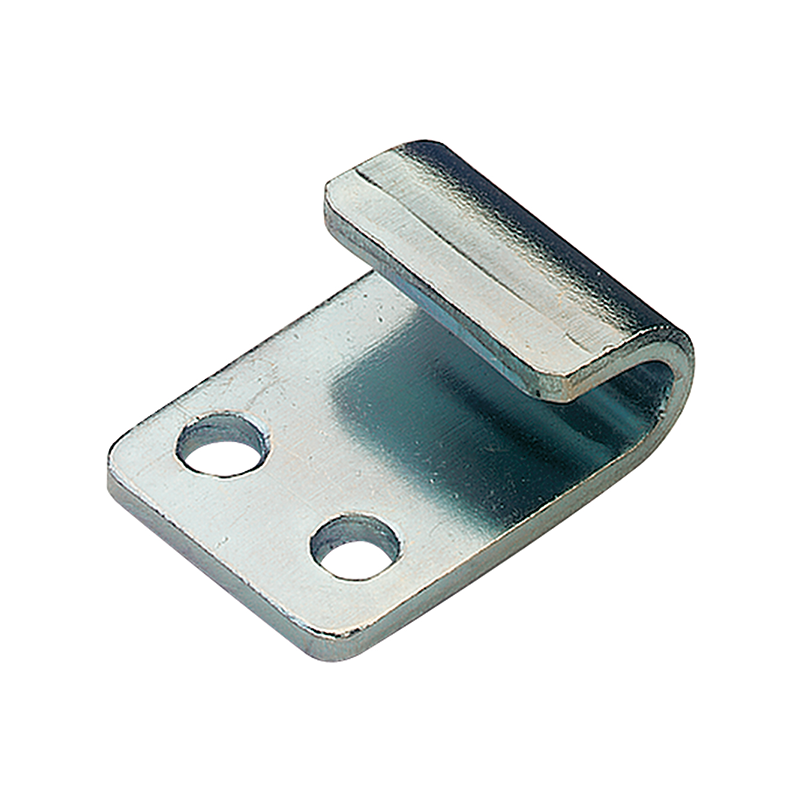

Catch plate, electro zinc plated steel, flat mounting, L=26mm, B=24mm, H=12,8mm
MT100102

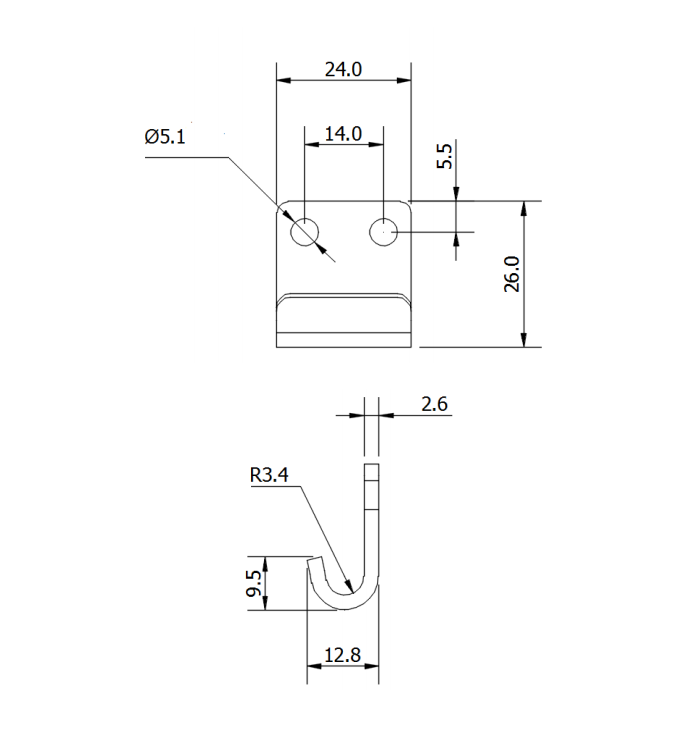

Catch plate manufactured in steel with an electro zinc plated surface. The length is 26mm, the width is 24mm and the height is 12,8mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
450
Hole diameter in mm
5.1
Height in mm
12.8
Length i mm
26
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 26mm, the width is 24mm and the height is 12,8mm. The catch palte has a hole diameter of 5,1 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
