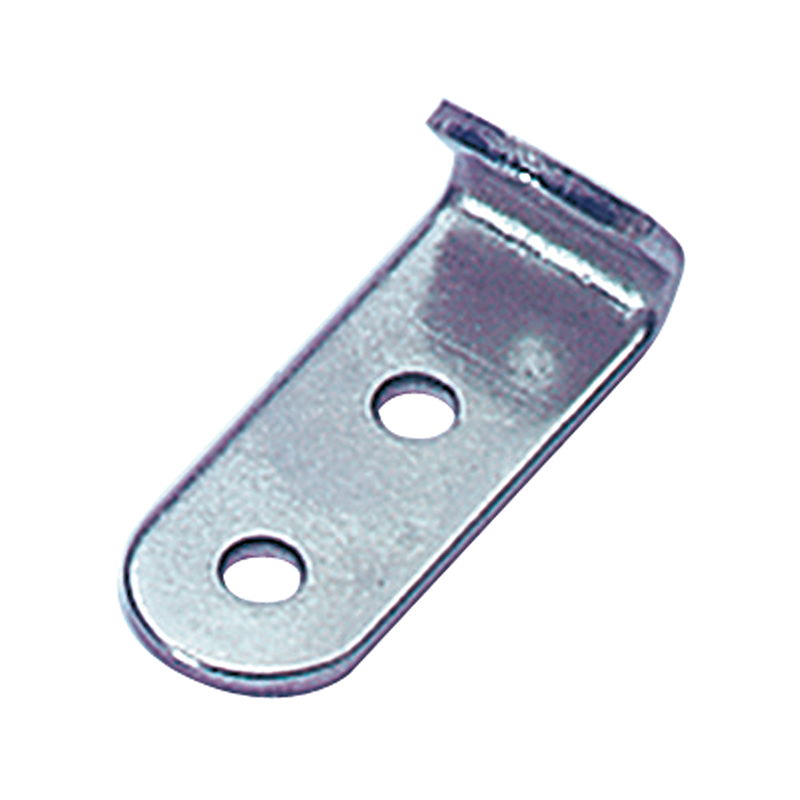

Catch plate, electro zinc plated steel, flat mounting, L=28,6mm, B=11,1mm, H=9,9mm
MT100140

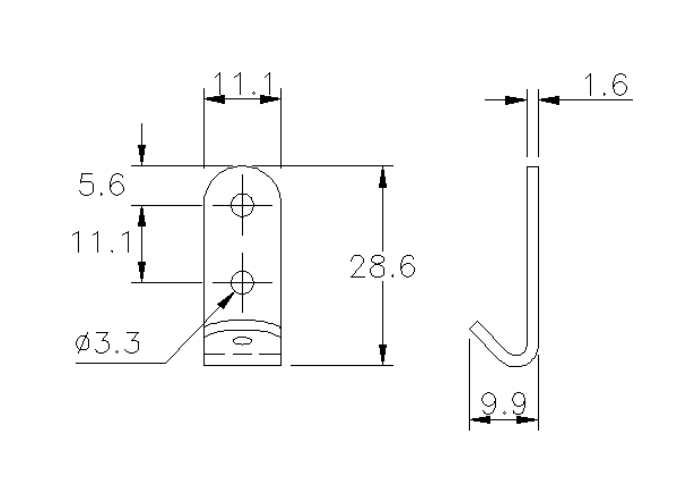

Catch plate manufactured in steel with an electro zinc plated surface. The length is 28,6mm, the width is 11,1mm and the height is 9,9mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Material type
Steel
Mounting type
Flat mounting
Surface finish
Electro zinc plated
Maximum work load (Tensile strenght)
50% af brudstyrken
Breakage load (Ultimate stress) in kg
150
Hole diameter in mm
3.3
Height in mm
9.9
Length in mm
28.6
Long description
Catch plate manufactured in steel with an electro zinc plated surface. The length is 28,6mm, the width is 11,1mm and the height is 9,9mm. The catch palte has a hole diameter of 3,3 mm. We offer many types of catch plates, so please contact us if you cannot find what you are looking for.
Product data
